Quick Details
-
Brand Name:
-
Boerstn
-
Model Number:
-
XL-21
-
Rated Voltage:
-
230/400V
-
Rated Current:
-
1250A
-
Frequency:
-
AC 50 Hz
-
Earthing System:
-
TN-C-S
-
Protection Class:
-
IP30
-
Incoming Line Quantity:
-
2
-
Dimension H*W*D:
-
2247*1512*302mm
-
Product Name:
-
Electrical Main Distribution Board MDB Power Switchboard Panel Box
-
Color:
-
GREY
Quick Details
-
Voltage:
-
230
-
Current:
-
1250A
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Boerstn
-
Model Number:
-
XL-21
-
Rated Voltage:
-
230/400V
-
Rated Current:
-
1250A
-
Frequency:
-
AC 50 Hz
-
Earthing System:
-
TN-C-S
-
Protection Class:
-
IP30
-
Incoming Line Quantity:
-
2
-
Dimension H*W*D:
-
2247*1512*302mm
-
Product Name:
-
Electrical Main Distribution Board MDB Power Switchboard Panel Box
-
Color:
-
GREY

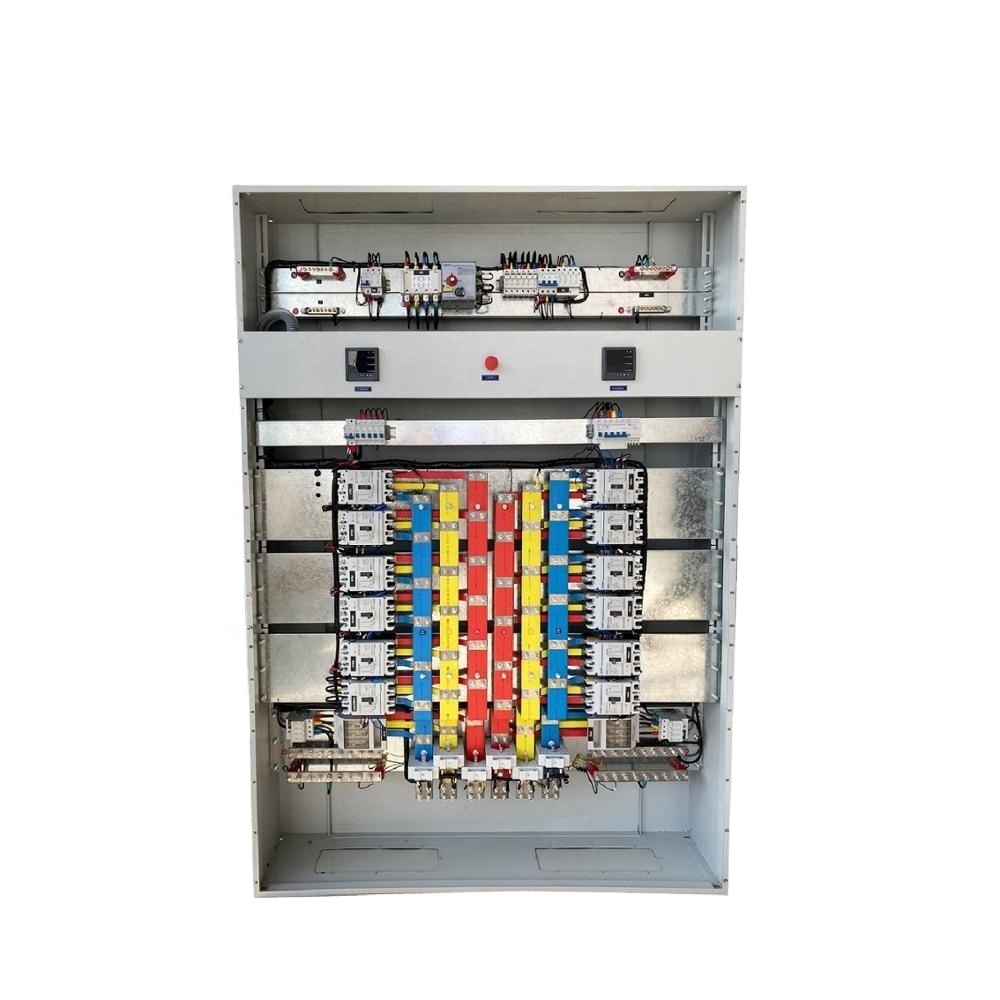

Electrical Main Distribution Board MDB Machine Control Room Applied Power Switchboard Panel Box
The new type XL-21 power cabinet is widely used in power plants and industrial and mining enterprises as three phase AC 500V three-phase three wire, three-phase four wire, three-phase five wire power distribution system for power or illumination, indoor wall installation, front panel operation, front panel inspection; Cabinet is fully enclosed structure, by C a section or 8MF profile assembly. Cabinet inside adopts the new type rotary load isolating switch with load operation , front door installed ammeter ,voltmeter and the signal lamp, button, selector switch and other components. The main distribution box adopts self-design of new components, compact structure, beautiful appearance, easy maintenance, a variety of wiring options for users to choose, it is an ideal alternative to the old XL-21 power cabinet.
The switchgear meet the requirements of standard IEC60439 etc.
- Ambient temperature: -5 ℃ ~ + 40 ℃, and the average temperature within 24h not exceed + 35 ℃.
- Altitude: not exceed 2000m.
- The ambient air temperature of + 40 ℃ not more than 50%; at lower temperaturescan have a higher relative humidity on (eg: + 20 ℃ at 90%), taking into account the change in temperature allows the generation of a moderate condensation.
- Equipment installation and the vertical gradient should not exceed 5 °
- Equipment should be installed in the absence of severe vibration, shock-free and corrosion-freeplace
- Note: More than the above conditions can be negotiated with the company.
| No | Name | Unit | Parameter |
| 1 | Rated voltage | V | AC: 230/400 |
| 2 | Incoming line quantity | 2 | |
| 3 | Rated frequency | Hz | 50 |
| 4 | Earthing System | V | TN-C-S |
| 5 | Rated current | A | 1250A |
“BOERSTN ELECTRIC" is engaged in manufacturing,development,service ,solution, maintenance & marketing of H.V./L.V. power distribution equipments,switchgears,transformers,substations..etc .for all over the world. As a leading & professional manufacturer in China,we mainly manufacture below items and supply their electrical accessories:
- H.V.& L.V.switchgears
- Power Distribution Board (PDB)
- M.V solid insulated switchgears (SIS)
- compact substations /Package substation/kiosk substation
- single phase & three phase pad mounted transformers(PMT)
- Gas insulated switchgears(GIS)
- Cable Brach box
- Ring main units (RMU)
- Oil-immersed transformers and dry type transformers
- Vacuum circuit breakers (VCB),Air circuit breakers(ACB),vacuum contactors,vacuum switches..
1. Are you the manufacturer or trader?
Boerstn is a leading & professional manufacturer located in Zhejiang province of China.
2. What is your main markets?
Our main market is in home & a half in South-East Asia, Middle East,West-Africa, East-European countries & Some South America..etc
3. What is your delivery & after-sales serive?
The delivery is according to order qty, normally for containers order we need 1 month. Per each month 20 containers (20'ft or 40'ft)are no problem for us . We can answer user's question and solve their problem in 24 hrs per each day and give full technical support in time to all of our products.
4. What is your product warranty?
Firstly we have quality certificates like CCC, ISO9001..etc for our switchgears & power equipments ,have CE,Rohs,CB,TUV,Kema..for their electrical parts and accessories. Secondly we supply 1 year quality guarantee,during this period we supply free repair,maintenance and technical support.Certainly for some of switchgears and power equipments, their using life is over 20 years,no problem.
5.Do you accept OEM and ODM?
Yes. Our R & D team owns latest technology ,can develop & produce products as customers' drawing & under their brand
6. What is your payment terms?
a. 30% T/T in advance as deposit ,balanced against the shipping documents
b. irrevocable L/C at sight for order which amount is over 100 thousand USD
C. for old business partner,we can negociate together for other special terms
d . For samples, we accept T/T,Western union, moneygram, paypal..etc
7. If i want to visit you ,how to do ?
Our company is located in Yueqing city of Zhejiang province China,which is about 40 minutes by car to Wenzhou air port & 30 minutes from Yueqing train station. About 1 hrs by air from Shanghai international airport and 1 hrs from Ningbo by train. If you need invitation letter before come to China,we can give it to you.
