Quick Details
-
Standard or Nonstandard:
-
Standard
-
Product name:
-
high pressure water pump
-
Boost ratio:
-
100:1
-
Max pressure:
-
800 bar
-
Medium:
-
water
-
Material:
-
Stainless Steel
Quick Details
-
Pressure:
-
High Pressure
-
Place of Origin:
-
China
-
Theory:
-
Reciprocating Pump
-
Standard or Nonstandard:
-
Standard
-
Product name:
-
high pressure water pump
-
Boost ratio:
-
100:1
-
Max pressure:
-
800 bar
-
Medium:
-
water
-
Material:
-
Stainless Steel
Hydraulic Pressure Test Pump DLS Series
Suncenter has rich experience in the hose/tube/pipe/valve/sensor/cylinder/guage pressure test field, we can provide reliable performance hydraulic pressure test equipment, leakage test equipment, burst test equipment and impulse test equipment, according to the standard of (GB/T5568, GB7939, ISO6802, ISO6803, ISO8032, GB/T12722, gb16897, GB/T5563, GB/T10544 etc.)do the test to the hydraulic hose and hydraulic hose assembly, automobile brake pipe, power train pipes and other pressure parts for pressure performance test.
Applicable range of hydraulic pressure test equipment:
Automobile steering tube, brake pipe, air-conditioning pipe, oil pipe, water pipe cooling, radiator, heater hose, hydraulic equipment, condenser, evaporator, air conditioning filter hose, turbocharging system hose, car brake pump, a cylinder body, a project hydraulic hose, air hose and manifold, rigid pipe, joints, valves,cylinder, pressure gauges, pressure sensor,pressure vessel, pressure transmitter etc.
Suncenter DLS Series Pneumatic (Air driven) hydraulic pressure test bench
SUNCENTER- Hydraulic test benches are compact and delicacy solution tailored to customer specific requirements with air driven liquid pumps as well as all accessories to be fitted and installed on the frame or in closed cabinet.
To operate this system, the pressure gauges, valves and pressure regulators have to be fitted on panels. The outlet pressure is easily to be set through a simple air regulator. The pump stops automatically when this end pressure is reached and restarts with a slight drop in the outlet pressure or an increase in the air drive pressure. SUNCENTER Hydraulic power packs are available with wide range of pressure ratios make these series of pumps ideal for powering a variety of oil/hydraulic operations. The maximum operating pressure up to 640 MPa.
As the pressure will be generated by means of a pneumatically operated pump，the electric connection will not be necessary. To operate this system, the air driven liquid pump have to be equipped with the air control unit combined filter and water separator, pressure-regulating valve, pressure control gauge as well as manual relieve valve. In this operation, the pump will be mounted to the stainless steel tank in the closed cabinet in a compact and space saving manner. Pressure gauges, valves and pressure regulators will be fitted on panel.
The desired operating pressure can be attained by adjusting the driving air pressure. When the driving air pressure and the output pressure reach the balance, the pump stops filling pressure and the output pressure stays at the preset value. This hydraulic unit can be used for all kinds of pressure testing and test tools for research and test institutes or for other functions requiring a determined pressure.

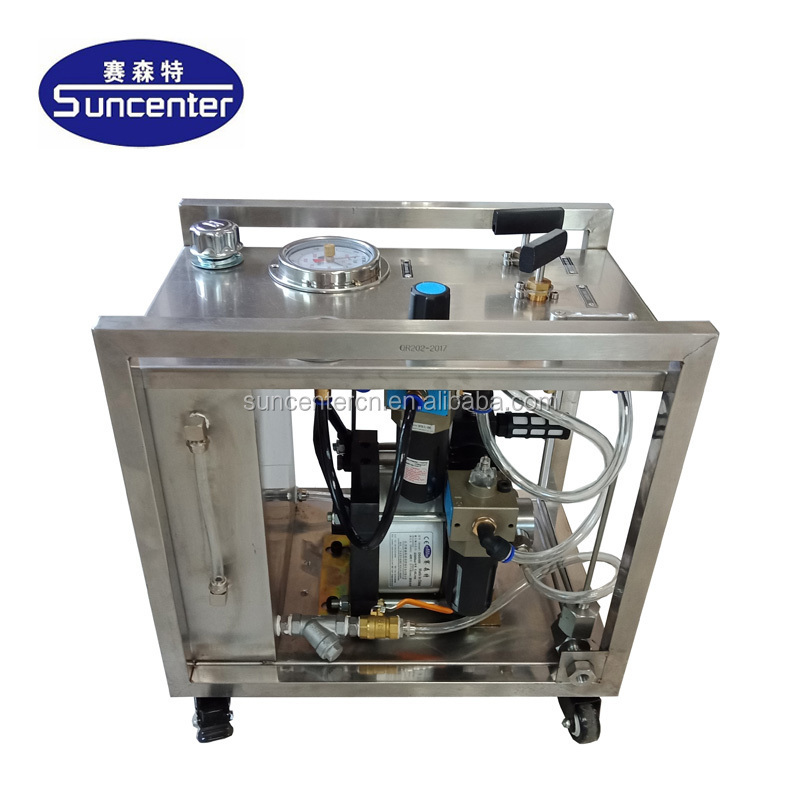

DLS Sereis hydraulic pressure test bench-The hottest selling Model C cabinet
The standard hydraulic test bench including following parts:
Air –driven liquid booster pump
Stainless steel material cabinet (Three models for choosing)
F.R.L combination for driven air (adjusts air pressure, add lubricating oil and filter)
Driven air switch (Pump starting switch), driven air pressure gauge, water tank
Liquid inlet/outlet switch, high pressure liquid guage, unloading valve, interconnecting pipes etc.
And we could also customize it according to clients’ special requirement.
DLS Sereis hydraulic pump test bench with round chart recorder
DLS-DGG series test bench Technical specification
|
Model
|
Pressure Ratio
|
Driven air pressure PL
|
Formula to calculate outlet pressure
|
MAX Outlet
Pressure(bar)* |
Driven
air inlet port |
High pressure Outlet port
|
MAX Flow
(L/min)** |
|
DLS-DGGD4
|
4:1
|
3-8 bar
|
4XPL
|
32
|
G 1/2
|
NPT/ZG
|
70.0
|
|
DLS-DGG6
|
6:1
|
3-8 bar
|
6XPL
|
48
|
G 1/2
|
NPT/ZG
|
29.91
|
|
DLS-DGG10
|
10:1
|
3-8 bar
|
10XPL
|
80
|
G 1/2
|
NPT/ZG
|
18.84
|
|
DLS-DGG16
|
16:1
|
3-8 bar
|
16XPL
|
128
|
G 1/2
|
NPT/ZG
|
12.42
|
|
DLS-DGG28
|
28:1
|
3-8 bar
|
28XPL
|
224
|
G 1/2
|
NPT/ZG
|
7.11
|
|
DLS-DGG40
|
40:1
|
3-8 bar
|
40XPL
|
320
|
G 1/2
|
NPT/ZG
|
4.89
|
|
DLS-DGG64
|
64:1
|
3-8 bar
|
64XPL
|
512
|
G 1/2
|
NPT/ZG
|
3.08
|
|
DLS-DGG80
|
80:1
|
3-8 bar
|
80XPL
|
640
|
G 1/2
|
NPT/ZG
|
2.44
|
|
DLS-DGG100
|
100:1
|
3-8 bar
|
100XPL
|
800
|
G 1/2
|
NPT/ZG
|
1.92
|
|
DLS-DGG130
|
130:1
|
3-8 bar
|
130XPL
|
1040
|
G 1/2
|
NPT/ZG
|
1.47
|
|
DLS-DGG175
|
175:1
|
3-8 bar
|
175XPL
|
1400
|
G 1/2
|
NPT/ZG
|
1.14
|
|
DLS-DGG255
|
255:1
|
3-8 bar
|
255XPL
|
2040
|
G 1/2
|
NPT/ZG
|
0.75
|
|
DLS-DGG400
|
400:1
|
3-8 bar
|
400XPL
|
3200
|
G 1/2
|
NPT/ZG
|
0.48
|
|
DLS-DGG510
|
510:1
|
3-8 bar
|
510XPL
|
4080
|
G 1/2
|
NPT/ZG
|
0.65
|
|
DLS-DGG800
|
800:1
|
3-8 bar
|
800XPL
|
6400
|
G 1/2
|
NPT/ZG
|
0.42
|
Packing&Shipping
Package: pack in plywood case Shipment: by air/sea/express
Company Introduction
Dongguan Suncenter Fluid Control Equipment Co., Ltd
is the member company of Suncenter Group, which is located in Dongguan city of Guangdong province in China. With more than 15 years experiences in fluid pressure exchange and controlling field, we provide various kinds of pneumatic and hydraulic booster pumps, systems and solutions to the customers all over the world. Due to our best product quality, competitive price as well as excellent after-sales service, we have win a great reputation in the field.
Our main products including:
1. High Pressure Booster Pumps ( Gas Booster Pump, Air Driven Liquid Pump, Air Amplifiers)
2. High Pressure Systems (Gas/Liquid Booster System,Hydro test bench,Chemical injection system,CO2/FM200 filling machine, Tube Expanding Machine)
3. High Pressure Test Equipment(Hydraulic/Burst/Hydrostatic test machine,Cylinder test machine, Valve test bench,Impulse Testing Machine, etc.)
4. Hydro-pneumatic cylinders and machines(pneumatic hydraulic cylinders,pneumatic riveting machines,pneumatic press machines etc.)
Customer review
Certifications
Our Advantages
-1. 15 years of manufacturing experience history.
-2. faster lead time, the fastest delivery is about 5-10 working days.
-3. CE & SGS certificate approval factory.
-4. Quality control for every step while production.
-5. Professional engineers have working experience in Maximator.
FAQ
Q: Are you factory? A: Yes, we have more than 15 years experiences in high pressure fluid exchange and controlling field,we provide various kinds of pneumatic and hydraulic boosters,systems and solutions. Q: Where's your location? can I visit you? A: Welcome to visit Suncenter, we are in Dongguan City, Guangdong province, China. Q: How to operate the machine? A: After you get the machine, we will send you the working video to teach you for maintenance and
operating. Q: How long is your warranty?
A: 13 months.
