Brand Name:
-
TIANEN

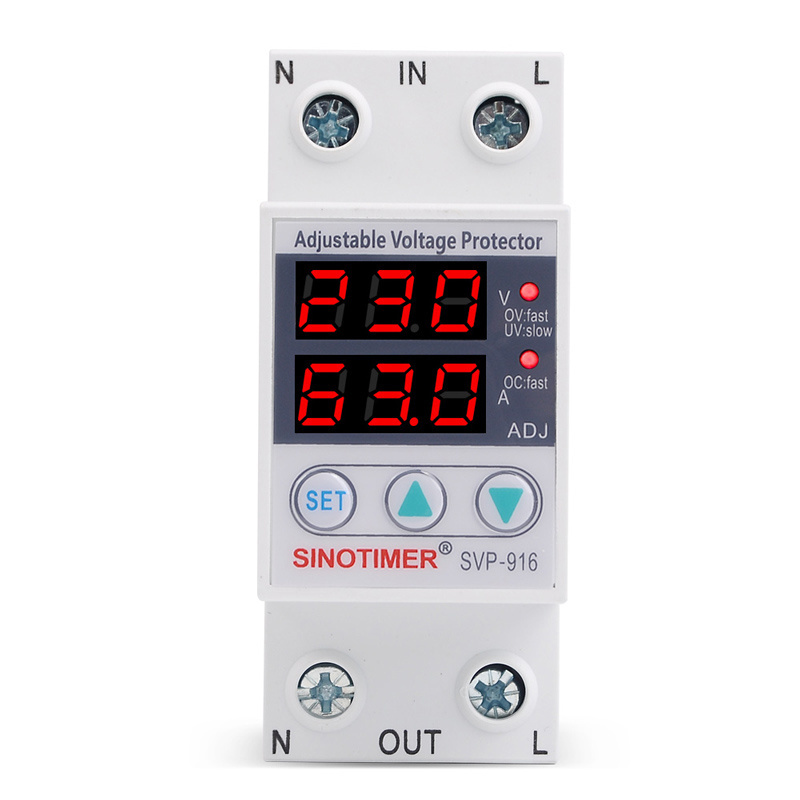

Adjustable Voltage Relay Control Over Under Voltage Protector 220V 110V 40A 63A 80A Overvoltage and Over Current Protection Devices Din Rail
SVP series SINOTIMER brand automatic over-voltage and under-voltage protector is suitable for single-phase AC 230V or 120V, 50/60Hz, rated working current 40A or 63A or 80A or less loads. It is mainly used for residential household box entry or over-voltage, under-voltage or over-current protection of distribution lines for single-phase electrical equipment. Its main feature is when the circuit has over-voltage or under-voltage, over-current problems, the product can cut off the power supply instantaneously to protect the electrical equipment from being damaged, besides,the protector can automatically turn on the power supply when the circuit voltage returns to the normal. The green indicator display, when the power is normal supply. The red indicator display, when the power over voltage or under voltage.
Functions:
1.Over-voltage protection 2.Under-voltage protection 3.Over-current protection 4.Automatic recovery 5.Voltage display(voltage measurement) 6.Current display (current measurement)
Product Parameters:
1.Model number:SVP-916 40A or 63A or 80A 2.Power supply: AC 230V or 120V 50/60Hz 3.Max.Loading power:1~40A or 1~63A or 1~80A Adjustable(default:40A or 63A or 80A) 4. Over-voltage protection value range:221V~300~OFF(default:280V) or 130-150V-OFF(default:140V) Over-voltage recovery voltage range:220V--299V(default:250V) or 131-149V(default:135V) Over-voltage protection action time:0.1s~10s(default value:0.1s) 5.Under-voltage protection value range:219V--150V-OFF(default:160V) or 100-80V-OFF(default:90V) Under-voltage recovery voltage range:151V--220V(default:180V) or 81-99V(default:95V) Under-voltage protection action time:0.1s~10s(default:0.1s) 6.Over-current adjustment range:1-40A or 63A or 80A(default:40A or 63A or 80A) Over-current action range:0.1~512 second (default:5.0s) 7.Recovery delay time:2s~120s(default:60s) 8.Power-on delay time:2s~10s(default:2s) 9.Power consumption : <2W 10.Electric machinery life : 100,000 times 11.Installation:35mm DIN rail
Noted:
When you first connect the product, you have to wait about 1 minute, after the red light turn off, then the product will work.
The model 80A , it displays in two colors (Red and Green ).
