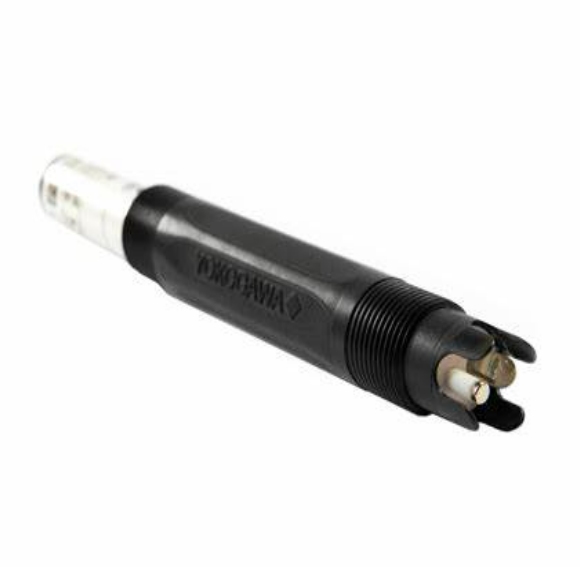

FU20-10-T1-NPT Yokogawa FU20 PH ORP Sensor

Product Details:
Manufacturer : Yokogawa
Product No. : FU20-10-T1-NPT
Product Type : FU20 4 in 1 pH Wide Body Sensor

The FU20 combination sensors show how Yokogawa applies the motto “Simply the Best” to sensor technology. The wide body sensors (26 mm diameter) hold four separate elements in one unbreakable PPS 40GF (RytonTM) body. Installation is simple with the integrated industrial 3/4” tapered thread. The large volume gelled electrolyte and the double junction reference system slows down depletion and poisoning therefore extending the lifetime. The system is targeted at those applications where simplicity will result in accurate and reliable pH- or redox measurements. This means that in 90% of the know applications this sensor will be an excellent choice.

General Specifications
1. Measuring elements : pH glass electrode and silverchloride reference system.
Platinum electrode and Pt1000 temperature sensor.
2. Construction materials
Body : Ryton R4TM (PPS 40GF) with glass filling
Earthing pin : Solid platinum
O-ring : None
Reference junction : Porous PTFE
Cable : Coaxial with 4 extra leads
Sheetmaterial : Thermoplastic rubber
3. Functional specifications (at 25°C)
Isothermal point : pH 7
Reference system : Ag/AgCl with saturated KCI Glass impedance
- Dome shape : 350MΩ, G-glass
- Flat Surface : 750MΩ, G-glass
Junction resistance : 0.5 to 5 kΩ
Temperature element : Pt1000 to IEC 751
Asymmetry potential : < 15 mV
Slope : > 96 % (of theoretical value)
4. Dynamic specifications (at 25°C)
Response time pH step (7 to 4) : < 15 sec for 90%
Response time temp step (10°C)
- Dome shape : < 3 min for 90%
- Flat surface : < 6 min for 90%
Stabilisation time (0.02 pH/10 s) : < 2 minutes
5. Operating range
pH : 0 - 14*
Temperature : -10 to 105ºC (14 to 212 °F)
Pressure : 0 to 10 bar ( 0 to 142 PSIG)
Conductivity : > 50 µS/cm
Storage temperature : -30 to 50ºC (-22 to 122 °F)
