Quick Details
-
Brand Name:
-
JAC
-
Fork Length:
-
1070mm
-
Fork Width:
-
125mm
-
Overall Dimensions:
-
2685 *1160*2070mm
-
Weight (KG):
-
3330 kg
-
Product Name:
-

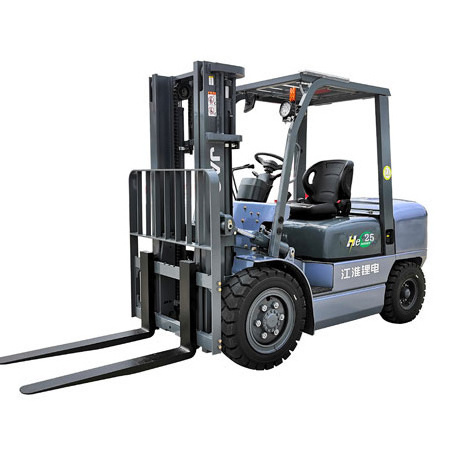

JAC electric Forklift Truck
-
Power type:
-
electric Forklift
-
Name:
-
JAC CPD25
-
Loading Capacity:
-
2500kg
-
Color:
-
Yellow, red or custom
-
Mast:
-
2 stage mast or 3 stage mast
-
Engine:
-
lithium battery
-
Seat:
-
Toyota seat with safety belt
-
Brand:
-
JAC
-
Optional:
-
side shifter, fork positioner,Cab with A/C,paper roll clamp,bale clamp
Quick Details
-
Min. Lifting Height:
-
2070mm
-
Warranty:
-
1 Year
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
JAC
-
Fork Length:
-
1070mm
-
Fork Width:
-
125mm
-
Overall Dimensions:
-
2685 *1160*2070mm
-
Weight (KG):
-
3330 kg
-
Product Name:
-
JAC electric Forklift Truck
-
Power type:
-
electric Forklift
-
Name:
-
JAC CPD25
-
Loading Capacity:
-
2500kg
-
Color:
-
Yellow, red or custom
-
Mast:
-
2 stage mast or 3 stage mast
-
Engine:
-
lithium battery
-
Seat:
-
Toyota seat with safety belt
-
Brand:
-
JAC
-
Optional:
-
side shifter, fork positioner,Cab with A/C,paper roll clamp,bale clamp
Product Description
We are professional in forklift
Specification
|
modle
|
|
|
CPD20He
|
|
CPD25He
|
|
||||
|
Powe type
|
|
|
lithium battery
|
|
lithium battery
|
|
||||
|
Rated load
|
|
kg
|
2000
|
|
2500
|
|
||||
|
Load center distance
|
|
mm
|
500
|
|
500
|
|
||||
|
Lift height
|
|
mm
|
3000
|
|
3000
|
|
||||
|
Free lift height
|
|
mm
|
140
|
|
140
|
|
||||
|
Fork size
|
L×W×T
|
mm
|
1070×122×40
|
|
|
|
||||
|
Mast tilt angle
|
FR/RR
|
。
|
6/12
|
|
|
|
||||
|
Minimum turning radius
|
|
mm
|
2170
|
|
2230
|
|
||||
|
Minimum Right Angle Stacking Aisle Width
|
|
mm
|
3635
|
|
3695
|
|
||||
|
Minimum Right Angle Channel Width
|
|
mm
|
2370
|
|
2430
|
|
||||
|
Minimum ground clearance
|
|
mm
|
110
|
|
|
|
||||
|
overhead guard height
|
|
mm
|
2070
|
|
|
|
||||
|
Seat to roof guard height
|
|
mm
|
1000
|
|
|
|
||||
|
Front suspension
|
|
mm
|
465
|
|
465
|
|
||||
|
Maximum travel speed
|
Full load
|
km/h
|
13
|
|
13
|
|
||||
|
|
No load
|
|
14
|
|
14
|
|
||||
|
Maximum lift speed
|
Full load
|
mm/s
|
260
|
|
260
|
|
||||
|
|
No load
|
|
360
|
|
360
|
|
||||
|
Maximum drawbar pull
|
Full load
|
mm/s
|
450
|
|
450
|
|
||||
|
|
No load
|
|
500
|
|
500
|
|
||||
|
Overall length
|
Without forks
|
mm
|
2485
|
|
2560
|
|
||||
|
Overall width
|
|
mm
|
1160
|
|
|
|
||||
|
Mast height at maximum lift (with backrest)
|
|
mm
|
4030
|
|
|
|
||||
|
Mast lowered height
|
|
mm
|
1995
|
|
|
|
||||
|
Tires
|
Front wheel
|
|
7.00-12-12PR
|
|
|
|
||||
|
|
Rear wheel
|
|
6.00-9-10PR
|
|
|
|
||||
|
Wheelbase
|
|
mm
|
1600
|
|
|
|
||||
|
Tread
|
Front wheel/rear wheel
|
mm
|
970/970
|
|
|
|
||||
|
Self weight
|
Without load
|
kg
|
3330
|
|
|
|
||||
|
Lithium
battery |
Voltage
|
V
|
80V
|
|
|
|
||||
|
|
Maximum gradeability is 15%
|
Ah
|
175Ah
|
|
175Ah
|
|
||||
|
|
Maximum gradeability is 20%
|
|
/
|
|
/
|
|
||||
|
motor
|
walk
|
KW
|
11
|
|
|
|
||||
|
|
lift
|
KW
|
12
|
|
|
|
||||
|
Control mode
|
|
|
AC
|
|
|
|
||||
|
work pressure
|
|
Mpa
|
18.5
|
|
|
|
||||
|
Traction force
|
|
KN
|
18
|
|
19
|
|
||||
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
