Quick Details
-
Brand Name:
-
TEREN
-
Model Number:
-
WFS
-
Operating Temperature:
-
5-50C
-
Product Name:
-
paddle type water flow switch for HVAC liquid flow rate control
-
Application:
-
liquid Flow
-
Contact:
-
SPDT, 10A/250VAC
-
Weight:
-
0.5kg
-
materials:
-
body: steel; cover: ABS; paddle: stainless steel
-
Contact cycle:
-
500K
-
Medium connection:
-
Brass, 1" NPT
-
Max pressure:
-
1.6Mpa
-
Medium temp:
-
5~100°C
-
Certification:
-
CE
Quick Details
-
Media Type:
-
Liquid
-
Flow Rate:
-
See range
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
TEREN
-
Model Number:
-
WFS
-
Operating Temperature:
-
5-50C
-
Product Name:
-
paddle type water flow switch for HVAC liquid flow rate control
-
Application:
-
liquid Flow
-
Contact:
-
SPDT, 10A/250VAC
-
Weight:
-
0.5kg
-
materials:
-
body: steel; cover: ABS; paddle: stainless steel
-
Contact cycle:
-
500K
-
Medium connection:
-
Brass, 1" NPT
-
Max pressure:
-
1.6Mpa
-
Medium temp:
-
5~100°C
-
Certification:
-
CE

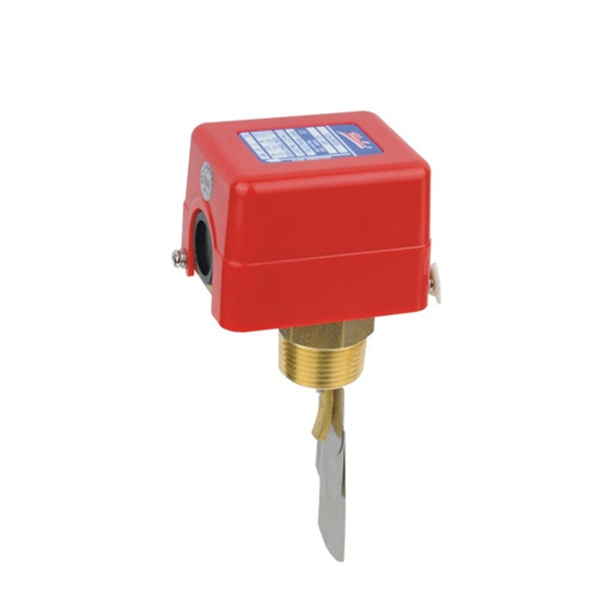

WFS paddle type water flow switch for HVAC liquid flow rate control
Applications & Features
The paddle type WFS is designed to control the flow rate of water, chilled water, cooling water or other liquid system
Specifications
Contact: SPDT, 10A/250VAC
Medium connection: Brass, 1” NPT
Electrical connection: Screw terminals
Materials: body: steel; cover: ABS; paddle: stainless steel
Contact cycle: 500K
Environment temp.: 5~50°C
Medium temp.: 5~100°C
Working pressure: 1.0Mpa
Max pressure: 1.6Mpa
Weight: 0.5Kg
Accessory: Model F-5, carbon steel, should be ordered separately. When ordered along with the WFS, it is packed in the same package.
Paddles Selection
|
ITEM |
Range liter/min |
D Band liter/min |
Pipe |
Paddle number |
|
|
in |
mm |
||||
|
1 |
16~32 |
6 |
1 |
25 |
1 |
|
2 |
22~50 |
8 |
1.25 |
32 |
2 |
|
3 |
30~72 |
9 |
1.5 |
40 |
2 |
|
4 |
55~110 |
15 |
2 |
50 |
2 |
|
5 |
70~130 |
20 |
2.5 |
65 |
3 |
|
6 |
105~200 |
30 |
3 |
80 |
3 |
|
7 |
250~480 |
50 |
4 |
100 |
4 |
|
8 |
480~920 |
90 |
5 |
125 |
4 |
|
9 |
720-1420 |
120 |
6 |
150 |
5 |
|
10 |
1420-2850 |
200 |
8 |
200 |
5 |
Q1: How to get the latest price?
Tell me the models, quantity, and other special requirement.
Q2: Payment terms?
100% T/T in advance.
Q3: Delivery time?
One week.
Q4: Shippment?
DHL, UPS, TNT etc.
Q5: Is OEM/ODM available?
Yes, it's available.
Q6: Warranty?
18 months.
