Quick Details
-
Insulation Material:
-
LSZH
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Bendakang
-
Model Number:
-
AS/NZS 3013
-
Product name:
-

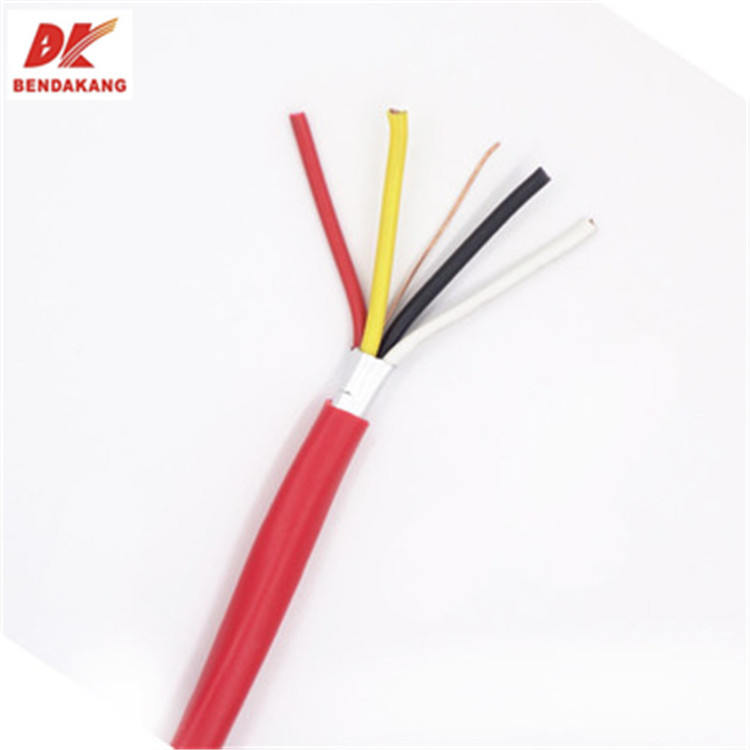

600V single core and multicore XLPE PVC FR-CV cable
-
Rated voltage:
-
450/750V 0.6/1KV
-
Conductor:
-
Stranded Annealed Copper
-
Insulation:
-
Flame Retardant, Low Smoke, Zero Halogen
-
Insulation colour:
-
Red, White Black
-
Sheath:
-
Flame Retardant, Low Smoke, Zero Halogen
-
sheath colour:
-
Red Black
-
Standard:
-
AS/NZS3013
-
Core:
-
1 core 2-6 core
-
Certificate:
-
SAA CE
Quick Details
-
Application:
-
Fire Engineering
-
Conductor Material:
-
Copper
-
Conductor Type:
-
Solid or Strand
-
Insulation Material:
-
LSZH
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Bendakang
-
Model Number:
-
AS/NZS 3013
-
Product name:
-
600V single core and multicore XLPE PVC FR-CV cable
-
Rated voltage:
-
450/750V 0.6/1KV
-
Conductor:
-
Stranded Annealed Copper
-
Insulation:
-
Flame Retardant, Low Smoke, Zero Halogen
-
Insulation colour:
-
Red, White Black
-
Sheath:
-
Flame Retardant, Low Smoke, Zero Halogen
-
sheath colour:
-
Red Black
-
Standard:
-
AS/NZS3013
-
Core:
-
1 core 2-6 core
-
Certificate:
-
SAA CE
Top brand
Product Description
|
Product Name |
600V XLPE PVC FR-CV single core multicore cable | |
|
Type |
FR-CV Fire Rated Cable | |
|
Constructions |
Conductor |
Class 1/2 Plain annealed copper wires, solid or stranded, with mica tape wound |
|
Insulation |
XLPE or LSZH compound | |
|
Sheath |
LSZH compound | |
|
Core Color |
R ed, black, blue | |
|
Rated Voltage |
0.6/1KV | |
|
Standard/Certification |
AS/NZS 3013 | |
|
Application |
These cables are installed to supply power to building essential services including fire alarms, sprinkler control system, emergency and evacuation lighting and smoke control systems, such as high rise buildings and apartments, airports, shopping centres, cinemas and road and rail tunnels | |
|
Max. Operating Temperature |
90℃, can be 110℃ and 125℃ as per requirement | |
