3D relief effect increase the thickness of the pattern through the
accumulation of white ink
, the thicker the accumulation, the more 3D the pattern. The relief effect can increase the realism and 3D sense of the pattern and enhance the visual impact
- Product Details
- {{item.text}}
Quick Details
-
Ink Type:
-
UV Ink
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Tiansai
-
Voltage:
-
220V
-
Dimensions(L*W*H):
-
1680*1670*830mm
-
Weight:
-
450 KG
-
Marketing Type:
-
New Product 2022
-
Product name:
-
high speed cylinder uv printer
-
Model:
-
TW-HSUV
-
Applicable materials:
-
cylinder,bottle,cup, can
-
Printing diameter range:
-
40*100mm
-
Print head:
-
2-3 pcs G5i
-
Ink Color:
-
CMYK+W+V
-
machine Power:
-
1500W
-
printing speed:
-
20 seconds/pc
-
Resolution:
-
720*1200dpi
-
environment:
-
18-33℃, humidity 40%-50%
Quick Details
-
Print Dimension:
-
40-100mm
-
Condition:
-
New
-
Color & Page:
-
Multicolor
-
Ink Type:
-
UV Ink
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Tiansai
-
Voltage:
-
220V
-
Dimensions(L*W*H):
-
1680*1670*830mm
-
Weight:
-
450 KG
-
Marketing Type:
-
New Product 2022
-
Product name:
-
high speed cylinder uv printer
-
Model:
-
TW-HSUV
-
Applicable materials:
-
cylinder,bottle,cup, can
-
Printing diameter range:
-
40*100mm
-
Print head:
-
2-3 pcs G5i
-
Ink Color:
-
CMYK+W+V
-
machine Power:
-
1500W
-
printing speed:
-
20 seconds/pc
-
Resolution:
-
720*1200dpi
-
environment:
-
18-33℃, humidity 40%-50%
Products Description
|
Nozzle
|
|
|
2-3 pcs Ricoh-Gen5i
|
|
|||
|
Printing Speed
|
|
|
20-60 seconds/bottle
|
|
|||
|
Printing diameter
|
|
|
40*130mm
|
|
|||
|
Application
|
|
|
cylinder,cone,bottle,cup,can
|
|
|||
|
Resolution
|
|
|
720*900dpi/1200dpi
|
|
|||
|
Print length
|
|
|
max 240mm
|
|
|||
|
Power supply
|
|
|
50HZ/60HZ 220V/110V
|
|
|||
|
File format
|
|
|
BMP/TIF/EPS/JPG/PDF
|
|
|||
|
Ink type
|
|
|
uv ink
|
|
|||
|
Ink color
|
|
|
CMYKWV
|
|
|||
|
Packing size
|
|
|
1680*1670*830mm, 450kg
|
|
|||
Printing Show
Varnish and 3D Relief Effect
Matte Printing Effect
Printing without varnish, only print white ink and color ink, rich color color restoration degree
Seamless Splicing Printing
360 degree rotary to achieve seamless splicing printing
Printing Samples

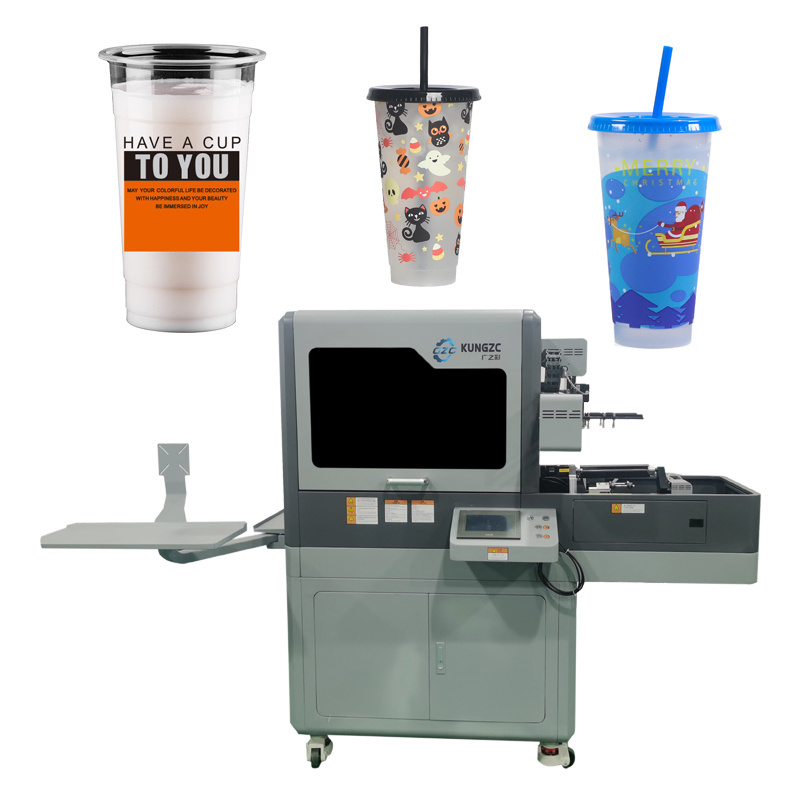

Rotary UV PRINTER with wide applications
It applys for
cylinde and conical
,
regular and irregular
bottle
Printable material:
metal, stainless steel, aluminum can, glass, pp, plastic, ceramic, Acrylic
ect
Printable diameter:
40mm-130mm
Max printing length:
24cm
Max height drop:
10mm
Details Images
Features
* Apply to most cylindrical printing, able to print 360° full coverage, print 3D relief varnish effect, high commercial value
* Support print w+cmyk+Varnish colors UV inks printing one pass on any shape bottles
* Support 3D embossed effect and varnish glossy effect
* It can fix and print bottles with 40-130mm diameter.
* The system has the characteristics of quick fixture replacement, strong versatility, stable operation, low failure rate, etc.
* Full format printing, achieve perfect stitching
* Support print w+cmyk+Varnish colors UV inks printing one pass on any shape bottles
* Support 3D embossed effect and varnish glossy effect
* It can fix and print bottles with 40-130mm diameter.
* The system has the characteristics of quick fixture replacement, strong versatility, stable operation, low failure rate, etc.
* Full format printing, achieve perfect stitching
*Automatic Loading with assembly line optional
* LED Touch screen control the rotation shaft, printing height, cleaning, printing position
* The rotating shaft is equipped with molds of different sizes to support printing of articles of different diameters
* Support printing diameter is 4cm-10cm
* The tilt of the fixture can be adjusted. Conical bottles can also be printed
* Fully automatic manipulator, come true auto loding and unloading
* Greatly improve production efficiency, reduce labor costs
* Greatly improve production efficiency, reduce labor costs
* Precise line layout, flexible control of multiple sensors
* with nozzle collision prevention and automatic circuit protection and other functions
* more convenient maintenance and overhaul
* with nozzle collision prevention and automatic circuit protection and other functions
* more convenient maintenance and overhaul
* Keep white ink nozzle and color ink nozzle working smoothly at the same time.
* Easy maintaince for multi-heads equipment .
