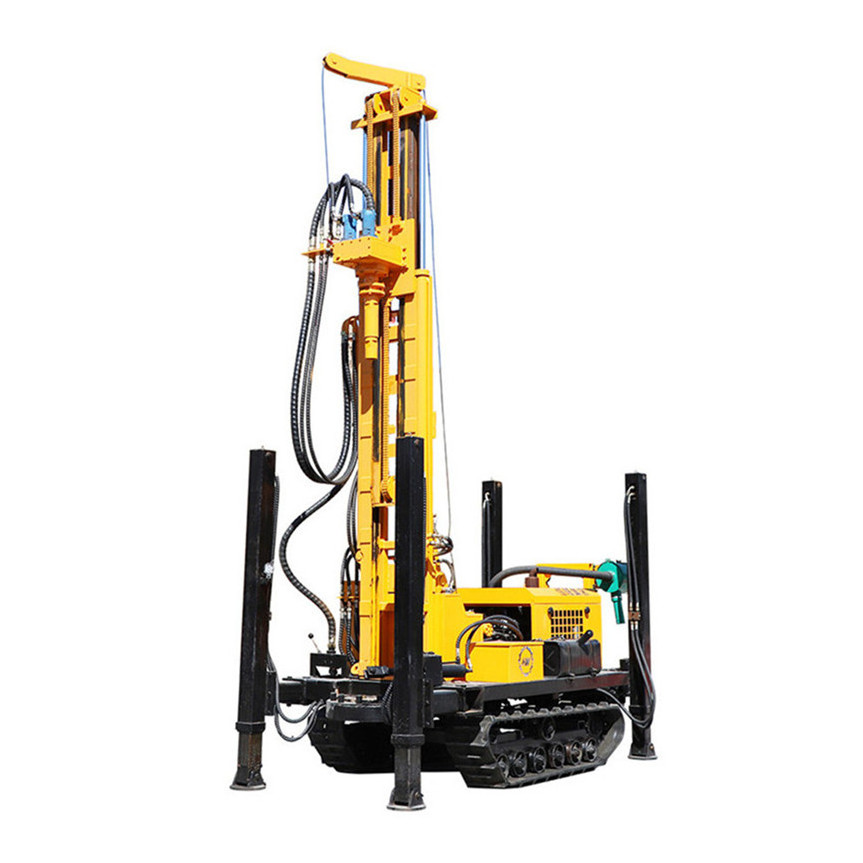

new design portable water well drilling rig/used water well drilling rig for sale/japan water well drilling rig for sale

new design portable water well drilling rig/used water well drilling rig for sale/japan water well drilling rig for sale

FOB Reference Price: Get Latest Price

≥1 Sets

US $11000

≥6 Sets

US $8900

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Dimension(L*W*H):: 6100*2200*2900mm

Weight:: 1300 KG

Drilling diameter:: 140-14000mm

Name:: used water well drilling rig for sale

One push stroke:: 6.6meters

Walking speed:: 2.5KM/H

Gradeability:: 30°

Using air compressor:: 1.7-3.5Mpa

Drill pipe diameter:: 102/108/114

Drill pipe length:: 1.5/2/3

Certification:: ISO

Quick Details

Place of Origin:: Shandong, China

Brand Name:: HW

Voltage:: Diesel

Dimension(L*W*H):: 6100*2200*2900mm

Weight:: 1300 KG

Drilling diameter:: 140-14000mm

Name:: used water well drilling rig for sale

One push stroke:: 6.6meters

Walking speed:: 2.5KM/H

Gradeability:: 30°

Using air compressor:: 1.7-3.5Mpa

Drill pipe diameter:: 102/108/114

Drill pipe length:: 1.5/2/3

Certification:: ISO

Product Description

Drilling Rock Speed:40M/Hour
Easy Operate
Competitive Price
Imported Accessories With CE

1. water drilling machine The engine uses Guangxi Yuchai 92Kw turbocharged engine;

2, water well rig walking device: travel motor with gearbox, long life and durability;

3, Air water driling machine hydraulic oil pump; parallel gearbox design (patent) oil pump unit separate, power supply is adequately allocated, hydraulic system unique design, maintenance and simple cost;

4, DTH drilling rig power head device; gearbox integrated casting, dual motor power, large torque, durable, low maintenance costs;

5, drilling machine chassis; professional digging chassis, durable, heavy bearing, wide chain plate, less damage to hard roads;

6, water well drilling rig lifting force; patent design composite boom, small arm volume, long stroke, double cylinder lifting, increase tonnage;

7. water drilling rig Each rig is equipped with a limiter for lifting the boom to protect the cylinder and ensure work safety;

8. water well drilling machine Each hydraulic oil pipe is covered with a protective jacket to make the oil pipe have a longer service life

The Weight(T)	13T
Dimensions(mm)	610022002900
The hole diameter(mm)	140-1400mm
Drilling Depth(m)	700meters
Once-time advance length(mm)	6600mm
Walking speed(Km/h)	2.5KM/H
Climbing angles(Max.)	30
Minimum clearance clearance(mm)	250
Using air pressure(Mpa)	1.7-3.5
Air consumption(m³/min)	17-35
Equipped capacitor(Kw)	115
Swing speed(rpm)	45-115
Swing torque(N.m)	8500-10500
Drill pipe diameter(mm)	Φ76 Φ89 Φ102
Drill pipe length(m)	1.5 2.0 3.0 6.0
Rig lifting force(T)	30

Pneumatic drill Exploration Well drill rig,water drilling machine 150 Model

The Weight(T)3
Dimensions(mm)4000*1450*2050
The hole diameter(mm)100-219
Drilling Depth(m)150
Once-time advance length(mm)6600

Walking speed(Km/h)0.8
Climbing angles(Max.)30

Minimum clearance clearance(mm)250
Using air pressure(Mpa)1.45-2.5

Air consumption(m³/min)15-29

Swing speed(rpm)40-65
Swing torque(N.m)2600-4000
Drill pipe diameter(mm)Φ76 Φ89

Pneumatic drill Exploration Well drill rig,water drilling machine 180 Model

The Weight(T)4.5
Dimensions(mm)3800*1500*2200
The hole diameter(mm)140-254
Drilling Depth(m)180
Once-time advance length(mm)3400
Walking speed(Km/h)2.5
Climbing angles(Max.)30
Minimum clearance clearance(mm)250
Using air pressure(Mpa)1.7-2.5
Air consumption(m³/min)17-31
Swing speed(rpm)40-65
Swing torque(N.m)3200-4600
Drill pipe diameter(mm)Φ76 Φ89

Pneumatic drill Exploration Well drill rig,water drilling machine 200 Model

The Weight(T)5.5

Dimensions(mm)1800*1700*2350
The hole diameter(mm)140-305
Drilling Depth(m)200
Once-time advance length(mm)3400
Walking speed(Km/h)2.5
Climbing angles(Max.)30
Minimum clearance clearance(mm)250
Using air pressure(Mpa)1.7-3.0
Air consumption(m³/min)17-30
Swing speed(rpm)50-70
Swing torque(N.m)5000-6500
Drill pipe diameter(mm)Φ76 Φ89 Φ102

Pneumatic drill Exploration Well drill rig,water drilling machine 300 Model

The Weight(T)9
Dimensions(mm)5900*2000*2850
The hole diameter(mm)140-325
Drilling Depth(m)300
Once-time advance length(mm)6600
Walking speed(Km/h)2.5
Climbing angles(Max.)30
Minimum clearance clearance(mm)250
Using air pressure(Mpa)1.7-3.3
Air consumption(m³/min)17-35
Swing speed(rpm)55-115
Swing torque(N.m)6200-8500
Drill pipe diameter(mm)Φ89 Φ102

Pneumatic drill Exploration Well drill rig,water drilling machine 600 Model

The Weight(T)12

Dimensions(mm)6000*2200*2850
The hole diameter(mm)140-350
Drilling Depth(m)600
Once-time advance length(mm)6600
Walking speed(Km/h)2.5
Climbing angles(Max.)30
Minimum clearance clearance(mm)250
Using air pressure(Mpa)1.7-3.5
Air consumption(m³/min)17-35
Swing speed(rpm)45-115
Swing torque(N.m)8500-1100

Drill pipe diameter(mm)Φ89 Φ102 Φ114

Pneumatic drill Exploration Well drill rig,water drilling machine 800 Model

The Weight(T)13
Dimensions(mm)6100*2200*2900
The hole diameter(mm)140-400
Drilling Depth(m)700
Once-time advance length(mm)6600
Walking speed(Km/h)2.5
Climbing angles(Max.)30
Minimum clearance clearance(mm)250
Using air pressure(Mpa)1.7-3.5
Air consumption(m³/min)17-42
Swing speed(rpm)55-120
Swing torque(N.m)8850-13500
Drill pipe diameter(mm) Φ102 Φ108 Φ114
