Quick Details
-
Brand Name:
-
TUOWEI
-
Model Number:
-
3410-413
-
Max. Current:
-
4A / 3(2)A
-
Mechanical Life:
-
10000 Cycles
-
Product Name:
-
fan regulator rotary switch
-
Position:
-
3
-
Suitable:
-
Fan, Juicer,Blender, etc.
-
Sample:
-
Free samples
-
Temperature:
-
125℃
-
Certification:
-
CQC, TUV, CB, CUL, ROHS, CQC, TUV, CB, CUL, ROHS
-
Service:
-
OEM/ODM
-
Function:
-
OFF, L-1, L-2
-
Lead time:
-
10-20 days
-
MOQ:
-
1 pc
Quick Details
-
Whether the smart:
-
NO
-
Max. Voltage:
-
120V AC/ 250V AC
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
TUOWEI
-
Model Number:
-
3410-413
-
Max. Current:
-
4A / 3(2)A
-
Mechanical Life:
-
10000 Cycles
-
Product Name:
-
fan regulator rotary switch
-
Position:
-
3
-
Suitable:
-
Fan, Juicer,Blender, etc.
-
Sample:
-
Free samples
-
Temperature:
-
125℃
-
Certification:
-
CQC, TUV, CB, CUL, ROHS, CQC, TUV, CB, CUL, ROHS
-
Service:
-
OEM/ODM
-
Function:
-
OFF, L-1, L-2
-
Lead time:
-
10-20 days
-
MOQ:
-
1 pc
Product Description

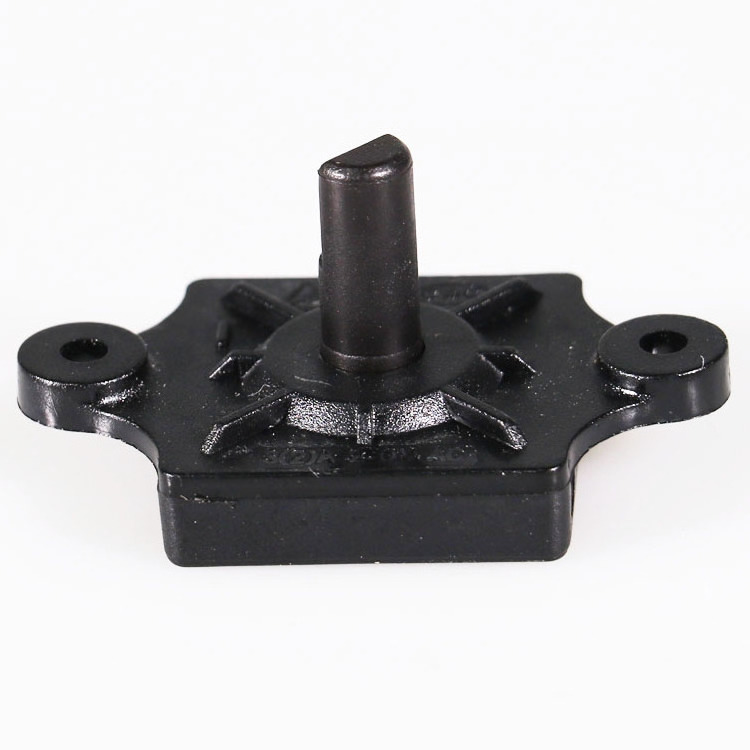

4A~120VAC 3(2)A~250VAC machine 4 position 3 speed coffee machine
rotary switch I tem No.: 3410-413
|
Technical Parameter |
|
|
Electrical Rating |
4A ~120V.AC. 3(2)A~250V.AC. |
|
HZ |
60/50 |
| Load | Res/ Mot |
| Temp(C) | 125°C |
| Pol/Thr | 1/ M |
| PP/Circuit | A/-- |
| Endur | 10K |
| Operation force | 1400G+_250GF |
| Withstand voltage | 1500 V.A.C |
| SPCOA | 24-18AWG UL1015 |
|
Material: |
|
| Cover: PC | |
| Insulating piece: PF Grade: SABIC | |
| Rotary: PA66 Flame rating: V-2 or V0 Temperature: 130°C Grade: Dupont | |
| Movable Contract: Copper | |
| Terminals: Brass | |
| Base: PC Flame rating: V-2 or V0 Temperature: 130°C Grade: SABIC | |
| Apply to: | |
|
All kinds of electric Electric Fan, Juicer, Mixer, Blender, coffee machine, vacuum humidifier, cleaner,massage equipment,air purifier,lamps,toys,massager and so on
|
|
3410 series have many different function circuits as below:
| NO. | Position 1 | Position 2 | Position 3 | Position 4 | Position 5 |
|
1 |
L-1 | L-2 | L-3 | ||
| 2 | OFF | L-1 | L-2 | L-3 | |
| 3 | OFF | L-1 |
L-2 |
L-3 | OFF |
| 4 | OFF | L-2 | L-1-2 | L-1-2-3 | |
| 5 | OFF | L-2 |
L-1-2 |
||
| 6 | OFF | L-2 | L-1-2 | L-1-2-3 | |
| 7 | OFF | L-1 | L-1-2 | ||
| 9 | OFF | L-2 | L-1 | L-1-2 | |
| 12 | OFF | L-3 | L-2 | L-1 | |
| 13 | OFF | L-1 | L-2 | ||
| 14 | OFF | L-1-3 | L-1-2 | L-2-3 | |
| 26 | OFF | L-1 | |||
| 30 | L-1 | L-2 | |||
| 47 | OFF | L-1-3 | L-1-2 | ||
| 54 | L-1-2 | OFF | L-1-3 | ||
| 70 | OFF | L-3 | L-1 | ||
| 78 | L-1-2 (pulse) | OFF | L-3 | L-1-2 |
