Quick Details
-
Brick size:
-
400*100*200 mm, 400*120*200 mm, 200*100*60 mm, 300*150*100 mm, 400*150*200 mm, 240*115*90 mm, 200*200*60 mm, 150*150*100 mm, Other, 400*200*200 mm, 230*220*115 mm, customized
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
YOUJU
-
Voltage:
-
customized
-
Dimension(L*W*H):
-
3000*1800*2680mm
-
Weight (KG):
-
2000 kg
-
TYPE:
-
QTJ4-24 concrete block molding machine
-
POWER:
-
11.95kw
-
DIMENSION:
-
2060X1730X2580mm
-
WEIGHT:
-
3500kgs
-
compression:
-
8 Mpa to 12mpa
-
COLOR:
-
as you like
-
mould:
-
customized
-
WORKER:
-
3-4 people
Quick Details
-
Type:
-
Hollow Block Making Machine, Paving Block Making Machine, Interlock Block Making Machine, Curbstone Block Machine, Other
-
Brick Raw Material:
-
cement,concrete,fly ash,sand,stone and so on
-
Production Capacity (Pieces/8 hours):
-
Other, 4480 pcs/8hours, 2500 pcs/8hours, 3400 pcs/8hours, 1920 pcs/8hours, 5760 pcs/8hours, 1500 pcs/8hours, 1280 pcs/8hours, 3000 pcs/8hours, 12000 pcs/8hours, 3200 pcs/8hours, 2560 pcs/8hours, 1000 pcs/8hours, 800 pcs/8hours, 4640-20000pcs/day
-
Brick size:
-
400*100*200 mm, 400*120*200 mm, 200*100*60 mm, 300*150*100 mm, 400*150*200 mm, 240*115*90 mm, 200*200*60 mm, 150*150*100 mm, Other, 400*200*200 mm, 230*220*115 mm, customized
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
YOUJU
-
Voltage:
-
customized
-
Dimension(L*W*H):
-
3000*1800*2680mm
-
Weight (KG):
-
2000 kg
-
TYPE:
-
QTJ4-24 concrete block molding machine
-
POWER:
-
11.95kw
-
DIMENSION:
-
2060X1730X2580mm
-
WEIGHT:
-
3500kgs
-
compression:
-
8 Mpa to 12mpa
-
COLOR:
-
as you like
-
mould:
-
customized
-
WORKER:
-
3-4 people
concrete block molding machine block making machine
Cathy
TEL/Whatsapp:008618615393558

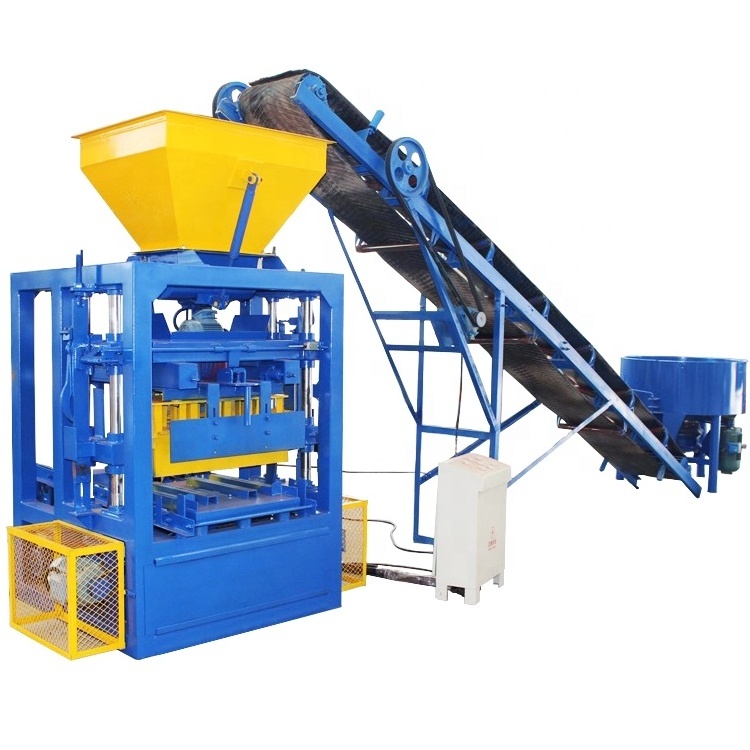

brief introduction about QTJ4-24 concrete block molding machine block making machine
2.Using lower power to realize superior vibratory effects, making various materials to flow-fill
and close packing.
3.Simultaneous pressure on the up-mode vibration, the density of produced block is uniform,
high strength, performance and product quality can be compared to large-scale equipment.
main parameters
|
Overall Dimension |
3600*1700*2560mm |
|
vibration frequency |
0-60HZ |
|
Vibration Form |
Platform Vibration |
|
moulding mode |
vibration moulding |
|
Pallet Size |
85 0* 45 0mm |
|
Molding cycle |
24-26 s |
|
Overall Power |
11.25 K W |
|
Vibration Force |
45 KN |
|
Total Mass |
3.5 T |
|
Demolding method |
Mechanical |
|
Applied Products |
Concrete blocks, hollow/solid blocks, paver, interlocking blocks, curbstone,etc. |
|
Raw Material |
Crushed stone, sand, cement, dust, and fly ash, gravel, slag, and other raw |
productivity and common bricks sample
|
Type |
Size (mm) |
Molding cycle |
Q ty /Mould (pcs) |
Qty/hour (pcs) |
Qty/8hr (pcs) |
|
Hollow block |
39 0x 19 0x 19 0 |
2 4-26 s |
4 |
553 |
4424 |
|
Hollow block |
39 0x 15 0x 19 0 |
2 4-26 s |
5 |
692 |
5536 |
|
Paving brick |
225X112X60 |
24- 2 6 s |
9 |
1246 |
9968 |
|
Paving brick |
20 0x10 0 x60 |
24- 2 6 s |
14 |
1938 |
15504 |
Our Services
Inquiry service:
Accept user’s enquiries by all kinds of ways and establish user’s product cognition.Provide all kinds of product data and let customer understand characteristics of product.
Pre-sale service:
Accept inquiry of customers ,confirmation of investment advice of choice of product ,assist the customers to design the workshop
In-sale service:
Sale of product,help customers build the base ,technical training of customers’ workers ,practice of operation ,help to install ,train the operators in the workshop.
After-sale service:
24 hours service of technology inquiry, instant components supply, regularly technical service guidance of maintain,long distance malfunction control.
Unique service:
System upgrade,special design according to the customers’ requirement, mould renew ,supply new technology and products information.
Answer:Could you pls tell us the investment plan?the capacity you want?what kind of bricks do you want to make?Then we could advice the most fitting model for you.
2>Which industry did this block machine usually be used in?
Answer: Hollow Block,Muticelullar bricks,Paving bricks,Standard bricks,etc
3>How to use the block machine?
Answer: We will send the operating manual to you after you purchase the machine.
4>How about the after sale service of block machine?
Answer: 1 year guarantee for the whole machine (without the spare parts),good machine no need after sale service,we keep the superior quality machine for you.
our common payment is 30% deposit by T/T before arrange the machine production,70% balance before the delivery,if other payment term,we can negotiation.
