Quick Details
-
Brand Name:
-
OTS
-
Model Number:
-
XB-OTS-UV
-

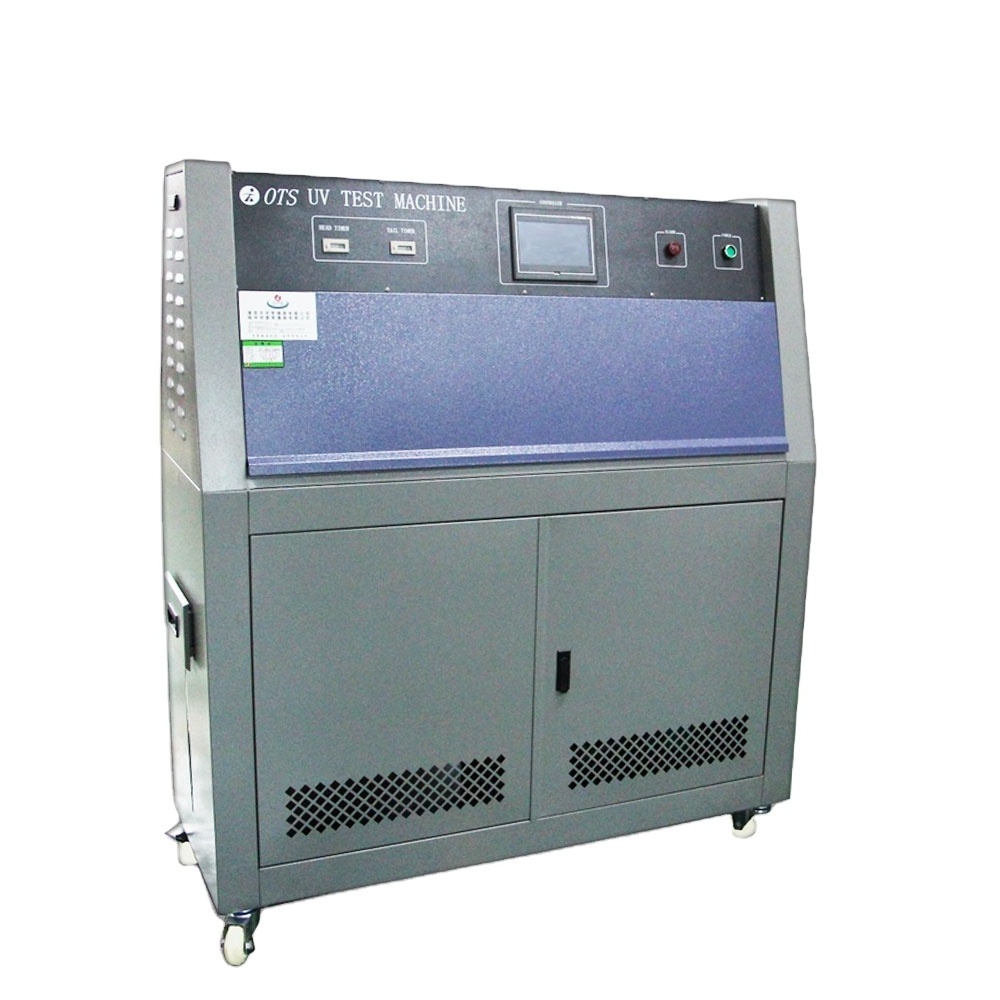

Product name:
-
UV test machine
-
Temp Range:
-
RT+10°C ~70°C
-
Light/ lamp:
-
UV lamp 40W
-
Specimen Standard Size:
-
50*125mm
-
Inner tube from the center:
-
65-70mm
-
Humidity Range:
-
RH75%~95%
-
Standards:
-
ASTM G53 / D4329, ASTM G154 / D4587-91
-
Lamp Quantity:
-
8 lamp imported from Canada
-
Temperature range:
-
RT+10℃~70℃
-
Materials:
-
Inside and Outside SUS#304 stainless steel
Quick Details
-
Warranty:
-
1 year
-
Power:
-
Electronic
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
OTS
-
Model Number:
-
XB-OTS-UV
-
Product name:
-
UV test machine
-
Temp Range:
-
RT+10°C ~70°C
-
Light/ lamp:
-
UV lamp 40W
-
Specimen Standard Size:
-
50*125mm
-
Inner tube from the center:
-
65-70mm
-
Humidity Range:
-
RH75%~95%
-
Standards:
-
ASTM G53 / D4329, ASTM G154 / D4587-91
-
Lamp Quantity:
-
8 lamp imported from Canada
-
Temperature range:
-
RT+10℃~70℃
-
Materials:
-
Inside and Outside SUS#304 stainless steel
Products Description
Introduction:
UV Accelerated Weathering Tester is the world's most widely used ,can be used in more labs throughout the world than any other accelerated weathering tester. It's used widely in the industry, such as printing ink, paint, pastics, print, packaging,motor van, metal, electron, medical... and so on.
Product Paramenters
|
Model
|
XB-OTS-UVA
|
XB-OTS-UVB
|
|
Machine size
|
500×1300×1460（D×W×H）mm
|
500×1300×1460（D×W×H）mm
|
|
Tamp range
|
RT+10℃~+70℃
|
RT+10℃~+70℃
|
|
Temp fluctuation
|
±1℃
|
±1℃
|
|
Temp uniformity
|
±3℃
|
±3℃
|
|
Humidity range
|
≥95% R·H
|
≥95% R·H
|
|
Distance between lamps
|
70mm
|
70mm
|
|
Distance between samples and lamps
|
50±2 mm
|
50±2 mm
|
|
Light source
|
UVA-340 8 pcs
|
UVB-313 8 pcs
|
|
Wavelength of UV light range
|
315～400nm
|
280～315nm
|
|
Size of standard specimen
|
75×150×10mm WHD （customized available)
|
75×150×10mm WHD （customized available)
|
|
Net Weight
|
150KG
|
150KG
|
Details Images
Product features
Features:
1. The machine has the functions of condensation, explosion, spray and wet temperature.
2. Original imported QUV lamp.
3. Independent development of high efficiency radiation display and automatic adjustment function.
4. Built in automatic pure water filtration system and automatic water supply device.
5. The machine has alarm detection in many places, and is equipped with wireless remote alarm function.
6. The inner and outer boxes are made of imported 304 stainless steel
7. Electronic-eye irradiance control system
8. Use blackboard temperature sensor providing precise temperature and recurring test result.
9. Perform humidifying, condensation and water spraying circulating test.
10. Irradiance is calibrated by CR-10 calibrator and automatic calibration procedure (Paten technology)
11.Specimen size and quantity: 75mm×300mm 24pcs, 75mm×150mm 48pcs
7. Electronic-eye irradiance control system
8. Use blackboard temperature sensor providing precise temperature and recurring test result.
9. Perform humidifying, condensation and water spraying circulating test.
10. Irradiance is calibrated by CR-10 calibrator and automatic calibration procedure (Paten technology)
11.Specimen size and quantity: 75mm×300mm 24pcs, 75mm×150mm 48pcs
