Building Materials Prefab House Rock Wool Sandwich Panel Fireproof Wall Board

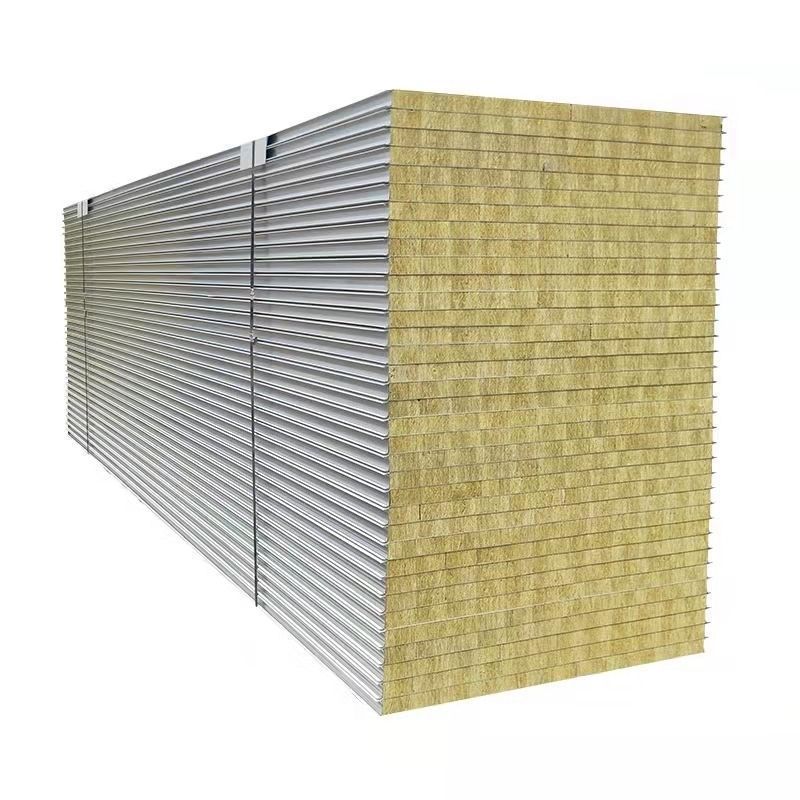

Rock Wool Sandwich Panel Introduction:

Rock Wool Density: 80-140kg/m3 (Normally use 120 kg/m3)
Panel Skin: Color steel panel
Sandwich panel thickness: 50mm, 75mm,100mm,150mm
Insulation Core: High quality basalt Rock wool
Function: Fire protection, thermal insulation, decoration

Rock wool sandwich panel is a kind of board that used rock wool as core material and steel as panel skin;Rock wool uses high-quality basalt as raw material whose melting point is above 1000 ºC and has good effects on heat insulation and sound absorption.

Rock Wool Sandwich Panel Technical Data:

Rock Wool Sandwich Panel Application:

Rock wool sandwich panels are very good in terms of fire protection (A1/A2 grade), thermal insulation, sound insulation, etc. In reality, they can be used to build prefab houses, steel structure buildings, gymnasiums, art galleries, and swimming pools. , conference center, etc., it is very versatile!

Rock Wool Sandwich Panel Features:

1. Excellent fire resistance: As its raw material is rock wool ,it has good fireproof performance.
2. Good thermal insulation: its insulation is according to its thermal conductivity at 0.036 corresponding the thickness of rock wool
3. The effect of sound absorption and heat insulation is remarkable. Sound insulation: According to ISO 717/82 and UNI 8270/7 standard, Density of 120kg/m³ rock wool as core material, the sound insulation effect can reach RW=29-30 dB Sound absorption: rock wool sandwich panels have excellent attraction at the same time, which can absorb sound in a wide range of frequencies. According to the ISO 35/85 standard
4. Resistance to corrosion, deformation and breaking
5. Long service life and strong aesthetics
