Quick Details
-
Technique:
-
Woven Wire Mesh
-
Application:
-
Filter
-
Wire Diameter:
-
0.025-2.5mm
-
Mesh count:
-
44-1600 Mesh
-
Shape:
-
Cylindrical
-
Packing:
-
Wooden case
-
Certificate:
-
ISO9001
Quick Details
-
Place of Origin:
-
China
-
Color:
-
Stainless Steel
-
Weave style:
-
Plain & Dutch
-
Technique:
-
Woven Wire Mesh
-
Application:
-
Filter
-
Wire Diameter:
-
0.025-2.5mm
-
Mesh count:
-
44-1600 Mesh
-
Shape:
-
Cylindrical
-
Packing:
-
Wooden case
-
Certificate:
-
ISO9001
Product Description
10 Micron Filter Mesh, 25 Micron Stainless Steel Filter Mesh, 60 Micron Filter Mesh
- Micron size: 25 50 100 micron and customized
- Size: 9"*1" /8.5"*1" diameter and customized
- Shape: cylinder tube /one sealing end/two sealing end
- Thickness; 0.02-1.6mm
- weave style:plain,dutch
- Technique: Woven wire mesh, Expanded metal mesh, Perforated metal mesh
- Application: Oil or water filter,Rosin heat press machine,Food industry,Petrochemical industry
- Filter tube is made of mesh by CNC punch pressing or cutting into pieces , after combination ,welding or sintering, is a filter element can be remove impurities in the medium operating equipment to work normally,to achieve a stable process .
|
|
Specification of Filter Mesh
| Specification List of Filter Mesh | ||
| Mesh/Inch | Wire Gauge(SWG) | Aperture in mm |
| 3mesh x 3mesh | 14 | 6.27 |
| 4mesh x 4mesh | 16 | 4.27 |
| 5mesh x 5mesh | 18 | 3.86 |
| 6mesh x 6mesh | 18 | 3.04 |
| 8mesh x 8mesh | 20 | 2.26 |
| 10mesh x 10mesh | 20 | 1.63 |
| 20mesh x 20mesh | 30 | 0.95 |
| 30mesh x 30mesh | 34 | 0.61 |
| 40mesh x 40mesh | 36 | 0.44 |
| 50mesh x 50mesh | 38 | 0.36 |
| 60mesh x 60mesh | 40 | 0.3 |
| 80mesh x 80mesh | 42 | 0.21 |
| 100mesh x 100mesh | 44 | 0.172 |
| 120mesh x 120mesh | 44 | 0.13 |
| 150mesh x 150mesh | 46 | 0.108 |
| 160mesh x 160mesh | 46 | 0.097 |
| 180mesh x 180mesh | 47 | 0.09 |
| 200mesh x 200mesh | 47 | 0.077 |
| 250mesh x 250mesh | 48 | 0.061 |
| 280mesh x 280mesh | 49 | 0.06 |
| 300mesh x 300mesh | 49 | 0.054 |
| 350mesh x 350mesh | 49 | 0.042 |
| 400mesh x 400mesh | 50 | 0.0385 |

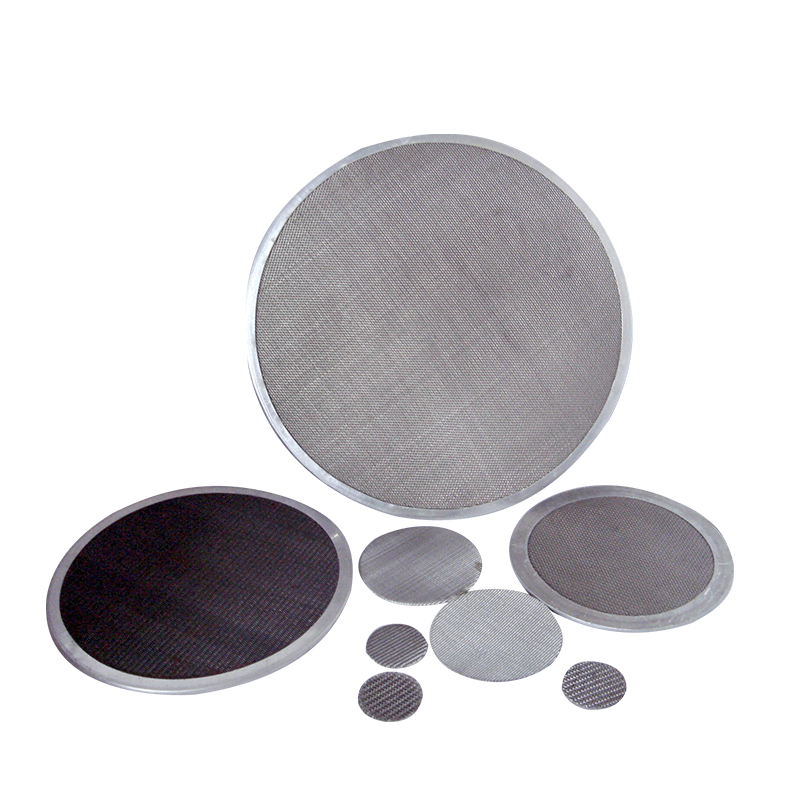

Pictures of Filter Mesh
