Quick Details
-
Brand Name:
-
Slocable
-
Model Number:
-
PV-YX102A
-
Certificate:
-
TUV,CE,ROHS
-
Box material:
-
PPO
-
Rated Voltage:
-
DC 1500V
-
Current:
-
16A/20A/25A
-
Contact resistance:
-
<0.5mΩ
-
Suitable cable cross range:
-
1*4.0mm2(AWG12)
-
Cable length:
-
300mm
-
Application level:
-
class A
-
Size of ribbons:
-
4~8mm
-
Working temperature:
-
-40°C~+85°C
Quick Details
-
Protection Level:
-
IP68
-
Type:
-
Junction Box
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Slocable
-
Model Number:
-
PV-YX102A
-
Certificate:
-
TUV,CE,ROHS
-
Box material:
-
PPO
-
Rated Voltage:
-
DC 1500V
-
Current:
-
16A/20A/25A
-
Contact resistance:
-
<0.5mΩ
-
Suitable cable cross range:
-
1*4.0mm2(AWG12)
-
Cable length:
-
300mm
-
Application level:
-
class A
-
Size of ribbons:
-
4~8mm
-
Working temperature:
-
-40°C~+85°C

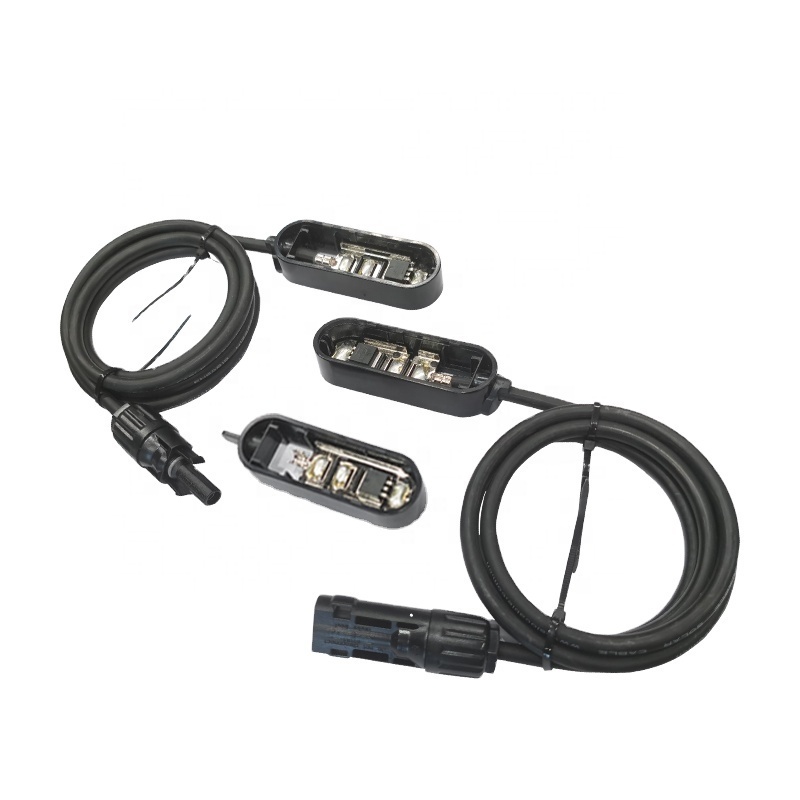

Slocable OEM Made in China IP68 Waterproof 20A 25A Diode Solar DC Junction Box Combiner for Panel Module
| Product name |
Solar PV Junction Box |
|
Rated current |
16A/20A/25A |
| Rated Voltage | 1500V DC |
| Test voltage | 8kV |
| Contact resistance | <0.5mΩ (under 25℃) |
| Waterproof protection | IP68 |
| Overvoltage degree |
CATIII/2 |
| Safety class |
Class Ⅱ |
| Application class |
Class A
|
| Working temperature |
-40°C~+85°C
|
| Tension of cable and terminal |
≥350N
|
| Wire Size Range |
4mm2 solar cable
|
| Bypass diode requirements |
IR≤200μA (25℃); VRRM≥45V; VF≤0.6 (25℃)
|
| Insulation Material |
PPO
|
The features of solar junction box with pv connector:
- Low forward voltage
- High current capability
- High forward surge capability
- Low power losses,High efficiency
- Guarding for over voltage protection
We also have solar cable, PV connector, branch connector, fuse holders, pv tools, etc.
