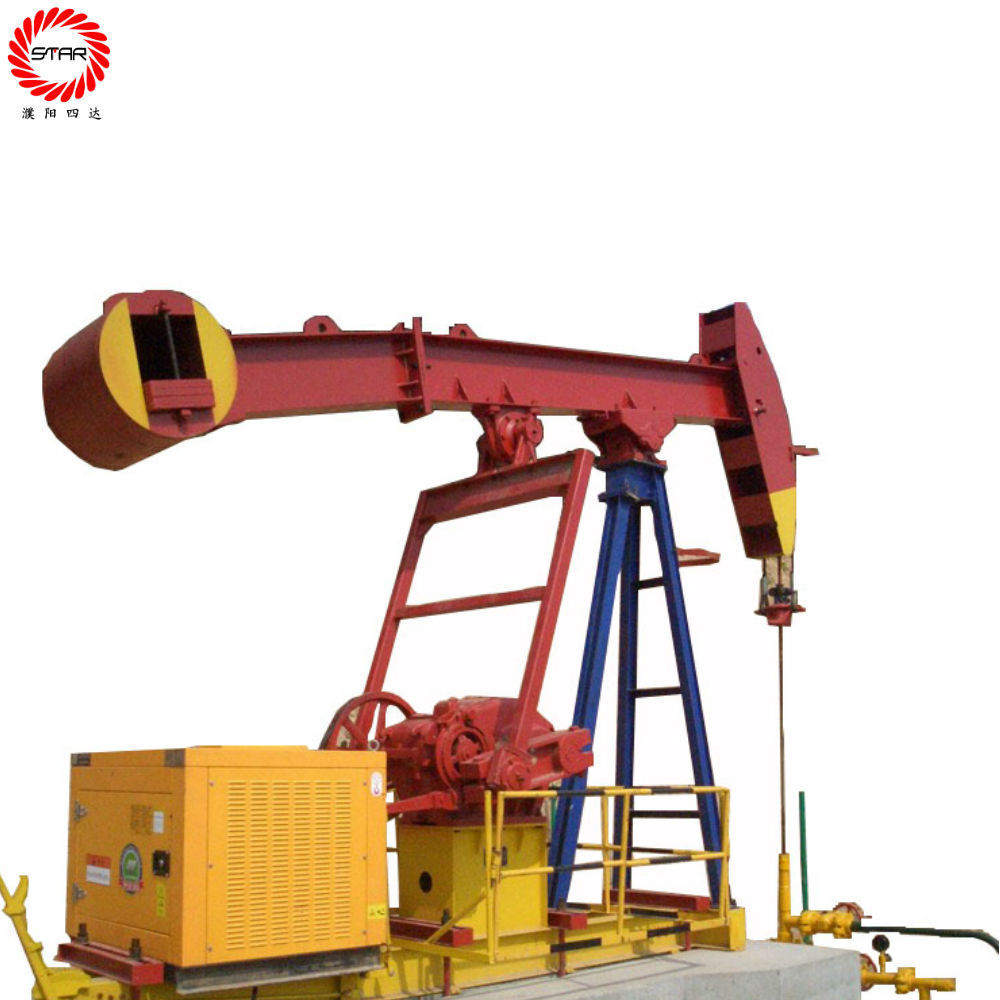

Horsehead Electronic Walking Beam Oil Pump Jack

Horsehead Electronic Walking Beam Oil Pump Jack

FOB Reference Price: Get Latest Price

≥1 Sets

US $3000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Model Number:: B-57D-89-54

Voltage:: Requirement

Power:: Conventional

Dimension(L*W*H):: Irregular

Weight:: 3-20 Tons

Features:: Conventional Walking-beam

Warranty:: 2 Years

Certification:: ISO9001:2008 / API Spec 11E

Product name:: Oil Pump Jack

HS Code:: 8413200000/8431499900

Balance:: Crank/Walking Beam

Type:: B Series

Standard:: API Spec 11E

Color:: According to the order

Stroke Length(in):: 20-82

Rated Torque(in.lb):: 16000-80000

Polished Rod Capacity(lb):: 6700-13300

Company Name:: Puyang Star Petroleum Machinery Co.,Ltd

Quick Details

Production Capacity:: Stroke Frequency

Place of Origin:: Henan, China

Brand Name:: STAR

Model Number:: B-57D-89-54

Voltage:: Requirement

Power:: Conventional

Dimension(L*W*H):: Irregular

Weight:: 3-20 Tons

Features:: Conventional Walking-beam

Warranty:: 2 Years

Certification:: ISO9001:2008 / API Spec 11E

Product name:: Oil Pump Jack

HS Code:: 8413200000/8431499900

Balance:: Crank/Walking Beam

Type:: B Series

Standard:: API Spec 11E

Color:: According to the order

Stroke Length(in):: 20-82

Rated Torque(in.lb):: 16000-80000

Polished Rod Capacity(lb):: 6700-13300

Company Name:: Puyang Star Petroleum Machinery Co.,Ltd

Product Description

Brief Introduction

API 11E Oil Pump Jack is beam balanced units.These units fill the need of economically producing many of the shallow wells. It's a common type of suker rod pumpiing surface unit.

Product Detail

API B Series Structure drawing

_{Carrier Bar}

Description: Body,Baffile,Lock,block,Rivet,Bolt,Sleeve,Nut

Introduction:

Carrier bar is used to connect polished rod, wire line and polish rod clips,high strength stability.

Wire Line

Description: Carrier Bar

Introduction:

The wire line is made of multiplayer, nontorsional steel wire. With enough strength, complied with API 11E Specifications.

Head
Description: Horse head
Introduction: Germany
Horse head is welded with steel plate. Wire line is hung in the horse head rope supplort. The horse head connect to front of the walking beam.

Walking Beam

Description:Walking Beam,Bolt,Nut,Center bearing assembly,Beariing Cover,Beam Counter Weights

Introduction:
Walking beam is welded with steel plate. The front end of walking beam connect with horse-head through horse-head pin, and connect with equalizer at the rear. Whole walkiing beam is fixed on the center bearing.

Belt Guard

Description: Side fence,Front fencs,Bolt,Oblique gaskets,Washer,Spring Washer,Nut.

Introduction:

Belt guard is the safety guard facility of the pumping unit. It is made of solid plate and bolted to the pumping unit's base assembly and the gear reducer.

Wan to know more, please contact Lillian.

Please supply following information, that I can make the quotation list soon:

1.Gear Reducer:Peak Torque Rating,Reductioin ratio,Type of bearings.

2.Frame structure:Unit structure rating,Range of stroke,Beam Counter Weights,Wrist Pin Bearing,Color.

3.Quantity.

4.Trading method:EXW, FOB, CIF(CIF need the destination port) ...

If have model is better, such as B-80D-119-64

Technical Parameters

Oil Pump Jack Main Technical Parameters

Packing & Delivery

Packaging
Name	Parts/Tools/Files
Method	Iron BOx
Packaging Details	Pumpiing units small parts,tools and files(Operation Manual,Parts Catalog) in to the Iron box,then with the Main Machine in to the container
