Quick Details
-
Size:
-
Customized Size
-
Coating:
-
Nickel,NiCuNi,Zn.Epoxy
-
Magnetism direction:
-
Thickness
-
Packaging Detail:
-
Vessel Package
-
Capacity:
-
15000Tons Per Year
-
Certification:
-
ISO/TS 16949,ROHS
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Material:
-
NeFeB Magnet
-
Grade:
-
N42EH
-
Size:
-
Customized Size
-
Coating:
-
Nickel,NiCuNi,Zn.Epoxy
-
Magnetism direction:
-
Thickness
-
Packaging Detail:
-
Vessel Package
-
Capacity:
-
15000Tons Per Year
-
Certification:
-
ISO/TS 16949,ROHS

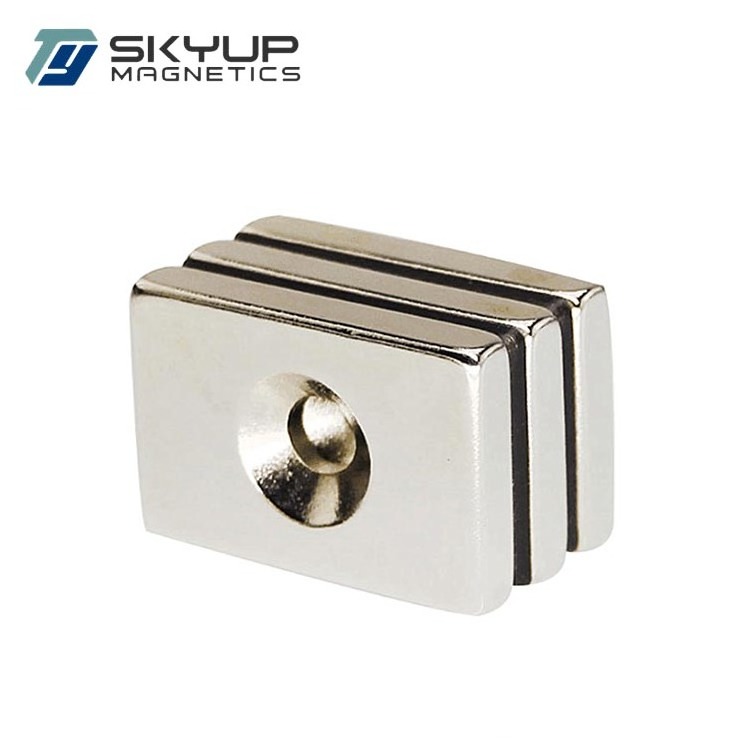

N42eh Strong Rare earth neodymium countersunk block magnet with hole
|
Product name |
Permanent, Nd Rectangular/Block magnet, Neo Rectangular/Block magnet, Rare earth Rectangular/Block magnet |
|
|
Material |
Neodymium iron boron, Neo Magnet, Nd Magnet, Rare earth Magnet |
|
|
Grade & working Temperature |
Grade |
Max Operating Temperatures |
|
N35-N54 |
80°C (176°F) |
|
|
35M-52M |
100°C (212°F) |
|
|
35H-50H |
120°C (248°F) |
|
|
33SH-48SH |
150°C (302°F) |
|
|
28UH-45UH |
180°C (356°F) |
|
|
28EH-42EH |
200°C (392°F) |
|
|
28AH-40AH |
230°C (446°F) |
|
|
Shape |
Block or Rectangular or Cuboid, Disc, Ring, Cylinder, Arc and Irregular shape are also available |
|
|
Coating |
Ni, Ni-Cu-Ni, Electroless Nickel, Zinc, Colored Zinc, Epoxy, Passivation, Phosphated, Everlube, Au, Ag, Sn etc. |
|
|
Magnetized direction |
Thickness Magnetized, but Axially, Diametrical, Multipoles and Radial magnetization are also available, Customized magnetization is welcome. |
|
|
Application |
Servo motor,Brushless motor, Linear Motor, Automotive Motor, HEV& EV motor, Robot Driving Motor, Inverter Compressor Motor , Rail Transit Traction Motor, Consumer Electronics, Wind turbine, Energy-saving Elevator, Loudspeaker, Magnetic switch, VCM, MRI, Magnetic separator, sensor etc. |
|
|
Certificate |
ISO/TS 16949, ISO9001, ISO14001, RoHS, REACH |
|
|
Packing |
Standard sea or air packing, such as carton, wooden box, pallet etc. |
|
|
Lead time |
7-10 days for samples, 15-25 days for mass production. |
|
|
Transportation |
All shipping methods are available: courier (TNT, DHL, FedEx, UPS), air or sea.
|
|
1. Production flow of Permanent NdFeB Magnet:
Raw Materials Prepare —Melting –HD–Jet Milling–Mould /Pressing–Sintering–Magnet Performance Inspection
–Machining–Plating –Final Inspection –Magnetizing–Packing–Delivery
2. Coating:
Black Nickel Silver Zinc
Phosphated or Passivation NICUNI (Nickel, Copper, Nickel) Gold
Epoxy Color Zinc Everlube
3. Magnetization:
Oriented through thickness Axially oriented in segments Oriented through diameter
Axially oriented Multipole oriented in segments on one face Oriented through diameter
