Quick Details
-
Brand Name:
-
MINGCH or OEM Logo
-
Model Number:
-
TND/SVC-7KVA/10KVA/15KVA/20KVA
-
Capacity:
-
7KVA/10KVA/15KVA/20KVA
-
Input Voltage:
-
130-250V
-
Output Voltage:
-
220V
-
Efficiency:
-
≥90%
-
Response Time:
-
≤1S
-
Ambient Temperature:
-
-10℃~+40℃
-
Usage:
-
To stabilize the input voltage automatically
-
Protection:
-
Over/Under Voltage, Short Circuit, Over Temperature, Phase Failure,etc
-
Warranty:
-
1 year
-
Coil:
-
Copper or aluminum
Quick Details
-
Phase:
-
Single Phase
-
Current Type:
-
AC
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
MINGCH or OEM Logo
-
Model Number:
-
TND/SVC-7KVA/10KVA/15KVA/20KVA
-
Capacity:
-
7KVA/10KVA/15KVA/20KVA
-
Input Voltage:
-
130-250V
-
Output Voltage:
-
220V
-
Efficiency:
-
≥90%
-
Response Time:
-
≤1S
-
Ambient Temperature:
-
-10℃~+40℃
-
Usage:
-
To stabilize the input voltage automatically
-
Protection:
-
Over/Under Voltage, Short Circuit, Over Temperature, Phase Failure,etc
-
Warranty:
-
1 year
-
Coil:
-
Copper or aluminum

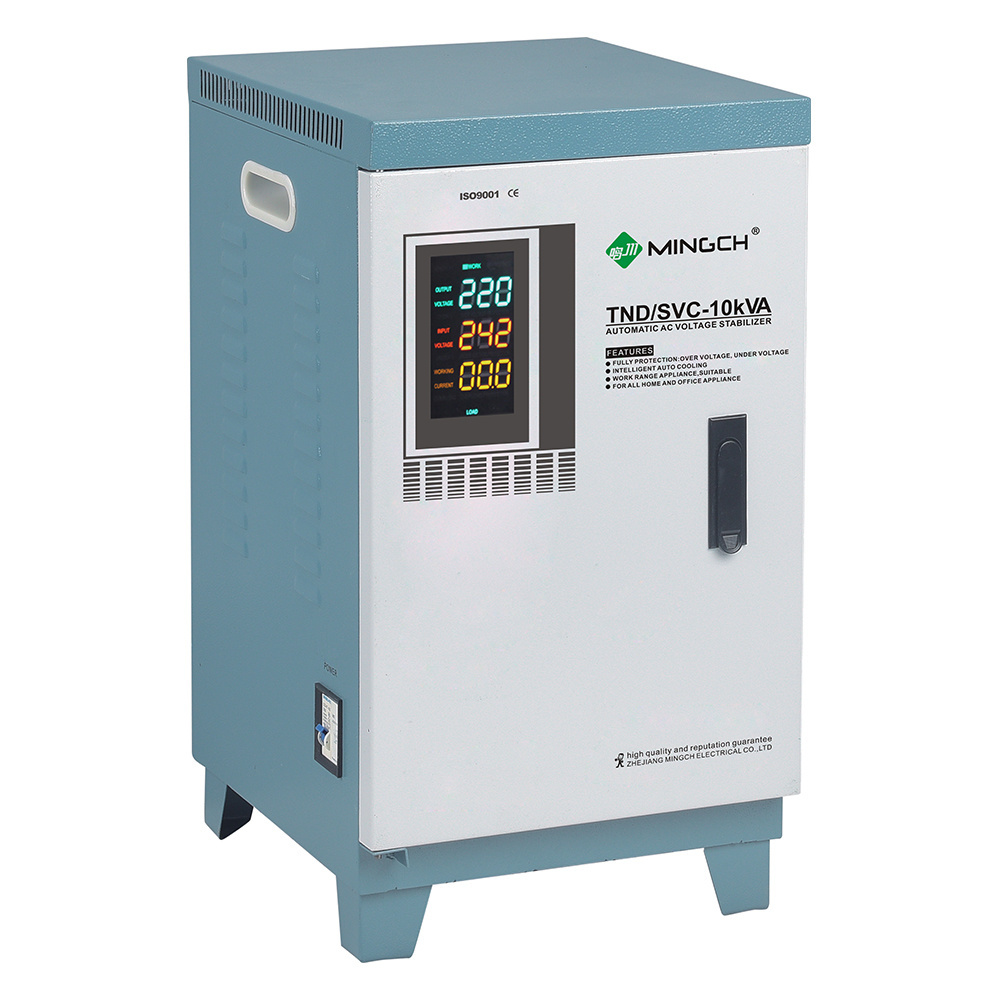

MINGCH CE Approval Single Phase Svc-1kva 2kva 3kva 5kva 7kva 10kva 15kva 20kva Ac Automatic Voltage Regulator Stabilizer
MINGCH Kuwait Single Phase Svc-1000Va Ac Automatic Voltage Regulator Stabilizer
TND/SVC series fully automatically voltage regulator consist of contact autotransforme r, servo motor, automatic control circuit etc.
- When grid voltage instability,automatically sampling control circuit sends a signal to drive servo motor
- Waveform distortionless, reliable performance,long-term operation
- Over voltage, undervoltage protected function
|
Specification |
TND/SVC-0.5KVA up to 30KVA |
|
Input Voltage |
130V-250V |
|
Output Voltage |
220V |
|
Output Deviance |
1-3%(Adjustable) |
|
Frequency |
50/60Hz |
|
Efficiency |
≥90% |
|
Response Time |
≤1S |
|
Ambient Temperature |
-10℃~+40℃ |
|
Insulation Resistance |
≥5MΩ |
|
Overload |
Double Reted Current,One Min |
|
Waveform Distortion |
Non-Lack Fidelity Wareform |
|
Protect |
Overvoltage,Overcurrent,Lack Phases |
| Trade Items | |
|
MOQ |
1 Set |
|
Design Ability |
OEM&ODM is welcome,can supply sample |
|
Certification |
CCC,CE,ISO9001, ISO14001,SGS |
|
Packing |
Standard Export Packing |
|
Payment Term |
Trade Assurance,T/T,L/C,D/A,D/P Western Union MoneyGram and so on |
| Delivery time | 7-10 working days after payment received |
|
Model |
Weight (KG) |
Outline (L*W*H, CM) |
QTY |
|
TND-0.5 K |
4 |
19*16*14 |
4 |
|
TND-1 K |
5.5 |
21*19*17 |
4 |
|
TND-1.5 K |
5.8 |
21*19*17 |
4 |
|
TND-2 K |
10 |
29*24*20 |
2 |
|
TND-3 K |
12 |
29*24*25 |
2 |
|
TND-5 K |
15 |
36*22*29 |
2 |
|
TND-7 K |
16.5 |
36*22*29
|
2 |
|
TND-10 K |
27 |
42*24*36 |
1 |
|
TND-15 K |
64 |
42*38*76 |
1 |
|
TND-20 K |
70 |
42*38*76
|
1 |
|
TND-30 K |
95 |
45*43*87 |
1 |
|
TND-5 K(Vertical) |
17 |
32*28*46 |
1 |
|
TND-10 K (Vertical) |
36 |
36*28*51 |
1 |
