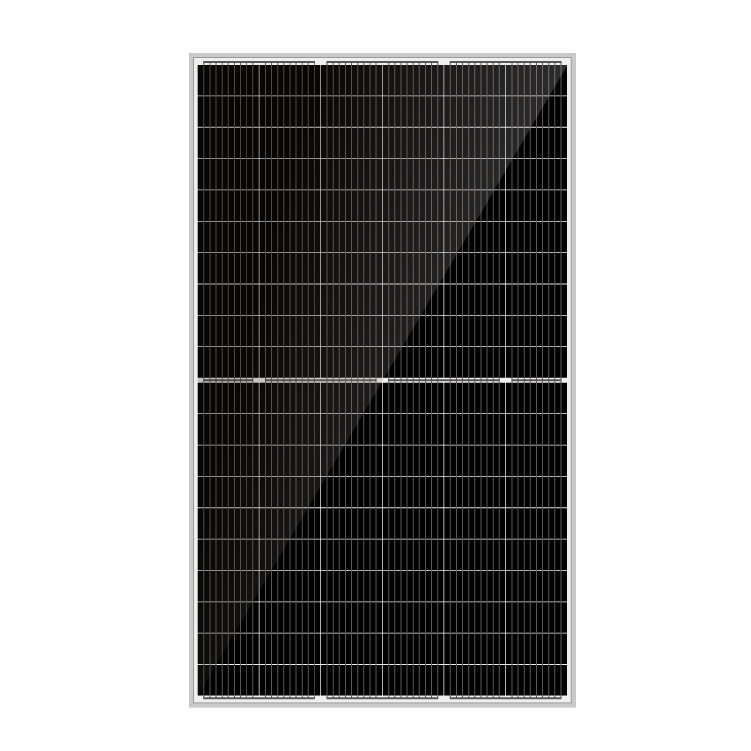

Mono solar panel 300 watt solar panel price bangladesh

Mono solar panel 300 watt solar panel price bangladesh

FOB Reference Price: Get Latest Price

≥10000 Pieces

US $0.2

≥100000 Pieces

US $0.19

≥1000000 Pieces

US $0.18

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Warranty:: 25

Brand Name:: DAH-SOLAR

Model Number:: DHM60-280w

Place of Origin:: Anhui, China

Panel Dimensions:: 1650*991*35mm

Product name:: Mono Solar Panel

Solar cell:: Mono 156*156 Cell

Use:: Home Commercial

Junction Box:: IP67 Waterproof

Frame:: Aluminum Alloy

Connector:: Compatiable Connector

Color:: Blue/Black

Certificate:: TUV/IEC/CEC/ISO/INMETRO

Quick Details

Cell size:: 156.75mmx156.75mm

Type:: PERC, Half Cell

Panel Efficiency:: 20.63

Warranty:: 25

Brand Name:: DAH-SOLAR

Model Number:: DHM60-280w

Place of Origin:: Anhui, China

Panel Dimensions:: 1650*991*35mm

Product name:: Mono Solar Panel

Solar cell:: Mono 156*156 Cell

Use:: Home Commercial

Junction Box:: IP67 Waterproof

Frame:: Aluminum Alloy

Connector:: Compatiable Connector

Color:: Blue/Black

Certificate:: TUV/IEC/CEC/ISO/INMETRO

Product Description

Module Type	DHM60-290	DHM60-295	DHM60-300	DHM60-305
Maximum Power (Pmax)	290W	295W	300W	305W
Open-circuit Voltage (Voc)	39.5V	39.7V	39.9V	40.02V
Maximum Power Voltage (Vmp)	32.2V	32.5V	32.6V	32.9V
Short-circuit Current (Isc)	9.50A	9.55A	9.64A	9.74A
Maximum Power Current (Imp)	9.01A	9.08A	9.20A	9.27A
Module Efficiency(%)	17.74%	18.04%	18.35%	18.65%
Power Tolerance	0~+5W
Standard Test Environment	Irradiance 1000W/m2, Cell Temperature 25℃,Spectrum AM 1.5

Product Details

Glass

* High-transmittance and low reflection
* Inspection:GB15763.2-2005.ISO9050
* High solar transmittance
* High mechanical strength
* High flatness

Solar Cell

* High output-power: conversation efficiency is 18%-22%
* High shunt-resistance: adapt the several environmental conditions.
* Bypass diode minimizes the power drop by shade
* Excellent low light effect
* Low breakage rate

Frame

* Aluminium extrusion profile with prompt delivery

* Available in customized surface finish
* Excellent material for smooth and subtle edges
* Extrusion for construction and other industrial purposes
* Thickness variable according special request

Junction Box

* High current and voltage carrying capacity

* Simple, quick and safe effective field assembly
* IP 67 it can be used in the outdoor iron environment
* Expansion connector are available for future requirement
* Double permanent connection are adapted for all of the connecting.

Line&Packing

(60 cells )Container	20GP	40GP	40HC
Pcs/Pallet	30	30	30
Pallets/Container	14	28	28
Pcs/Container	400	840	924

(72 cells )Container	20GP	40GP	40HC
Pcs/Pallet	27	27	27
Pallets/Container	10	24	24
Pcs/Container	270	648	696

Project cases

Company&Exhibition

Payment

Payment Term	T/T	EXW	30% T/T in advance, balance paid before dispatch
		FOB
		CNF(CFR)	30% T/T in advance, balance paid againist copy of B/L
		CIF
	L/C , Money Gram , Western Union , Paypal
Delivery Time	7-10 working days after down payment received
