Automatic pineapple peeling machine and coring machine pineapple peeler corer slicer
Automatic pineapple peeling machine and coring machine pineapple peeler corer slicer
Automatic pineapple peeling machine and coring machine pineapple peeler corer slicer
Automatic pineapple peeling machine and coring machine pineapple peeler corer slicer
Automatic pineapple peeling machine and coring machine pineapple peeler corer slicer
Automatic pineapple peeling machine and coring machine pineapple peeler corer slicer
Automatic pineapple peeling machine and coring machine pineapple peeler corer slicer
Automatic pineapple peeling machine and coring machine pineapple peeler corer slicer

Automatic pineapple peeling machine and coring machine pineapple peeler corer slicer

FOB Reference Price: Get Latest Price
≥1 Sets
US $4200
≥5 Sets
US $3800
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Voltage:
220V/380V
Power:
750
Weight:
500 KG
Dimension(L*W*H):
1250*520*1200mm
Year:
2023
Name:
coring machine/pineapple peeler corer slicer
Model:
BLQP-1
Capacity:
6-12pcs/min
Main power:
750W
Air pressure:
250L/MIN,Pressure<0.8mpa
Pineapple tube dia.:
70mm,80mm,90mm,Other size can be customed

Quick Details

Marketing Type:
New Product
Place of Origin:
Henan, China
Brand Name:
TIANZE
Voltage:
220V/380V
Power:
750
Weight:
500 KG
Dimension(L*W*H):
1250*520*1200mm
Year:
2023
Name:
coring machine/pineapple peeler corer slicer
Model:
BLQP-1
Capacity:
6-12pcs/min
Main power:
750W
Air pressure:
250L/MIN,Pressure<0.8mpa
Pineapple tube dia.:
70mm,80mm,90mm,Other size can be customed

Automatic pineapple peeling machine and coring machine pineapple peeler corer slicer

Product Description

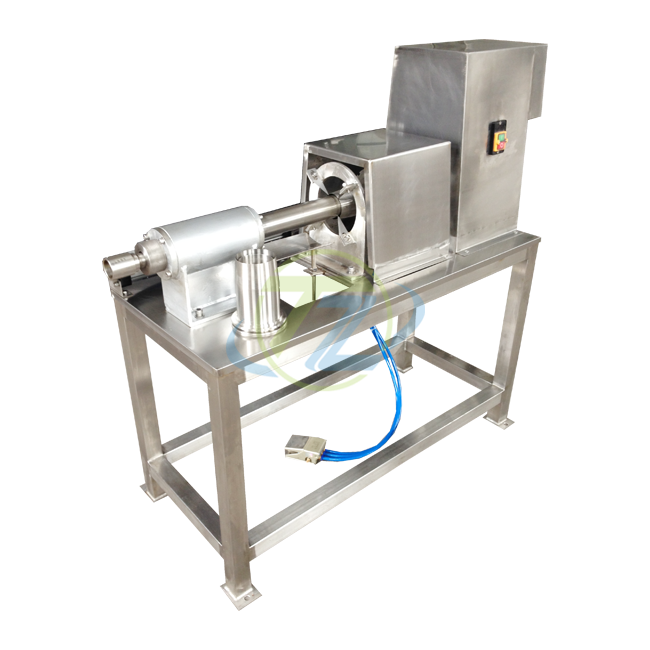

Introduction of Automatic pineapple peeling machine and coring machine/pineapple peeler corer slicer

Pineapple peeling machine is suitable for peeling and coring of pineapple. Pineapple can be peeled and cored through this machine to obtain cylindrical pineapple meat;Coring tube diameter can be 70mm,80mm,90mm,other size according to pineapple diameter.

Structure working principle of Automatic pineapple peeling machine and coring machine/pineapple peeler corer slicer

Pineapple peeling machine is composed of front bearing seat, rear bearing seat, skinning tool holder, through core tube, skinning tube, motor, frame, etc.

The motor directly drives the tanner to rotate at a high speed through the pulley. The cylinder drives the push rod and the through-core cylinder to move back and forth. When working, the pineapple is manually cut off the head and tail ends, and then placed on the feeding rack manually. The center height of the feeding rack can be adjusted. When the air source is connected, the pineapple is pushed forward by the air cylinder and passed through four sets of skinning knives. Scratch the skin of the pineapple and push it into the peeling tube rotating at high speed to remove the skin of the pineapple. At the same time, the core tube in the push rod stabs the core of the pineapple to obtain a cylindrical pineapple pulp. If it is a tube, the through-core tube can be removed.

Fruit contact with 304 stainless steel and food grade nylon.

Technical data

Specification of Automatic pineapple peeling machine and coring machine/pineapple peeler corer slicer

Model

BLQP-1

Capacity

6-12pcs/min

Pineapple tube dia.

70mm,80mm,90mm,Other size can be customed

Power

0.75kw

Voltage

220V/380V

Air pressure

250L/MIN,Pressure<0.8mpa

Dimension

1250*520*1200mm

Function:Peeling,coring

More photos

More photos of Automatic pineapple peeling machine and coring machine/pineapple peeler corer slicer

Peeled and cored effect
