Quick Details
-
Applicable Industries:
-
Other
-
Place of Origin:
-
China
-
Weight (KG):
-
200 KG
Quick Details
-
Type:
-
Rooftop Packaged Unit
-
Mounting:
-
Rooftop
-
Airflow:
-
3500m³/h
-
Applicable Industries:
-
Other
-
Place of Origin:
-
China
-
Weight (KG):
-
200 KG
|

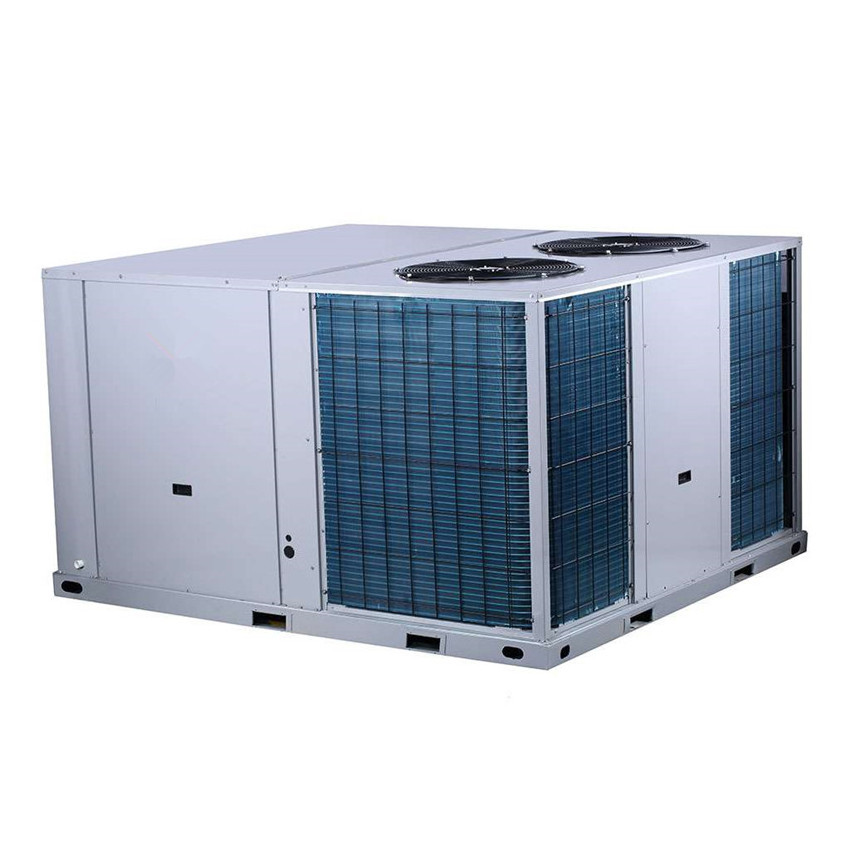

Rooftop Package (R410A) Specifications
|
||||
| Nominal Ton | 3 | |||
| Model |
MRC-36HWN1-R
M |
|||
| Power Supply | V-Ph-Hz | 380-400V,3Ph,50Hz | ||
| Cooling |
Cooling Capacity(1)
|
Btu/h |
36,000 |
|
| kW |
10.55 |
|||
| Power input(2) | kW |
9.9 |
||
| Heating |
Heating Capacity |
Btu/h |
37,500
|
|
| kW |
10.99
|
|||
|
Power Input |
kW |
3.00
|
||
|
Max.input consumption |
kW |
13.5 |
||
| Max Power Input | A |
25.6 |
||
|
Performance |
Indoor side air flow |
CFM |
1,500
|
|
|
ESP |
Pa |
50
|
||
|
EER1 |
Btu/h/W |
11.8 |
||
|
COP |
Btu/h/W |
12.5 |
||
| Indoor fan | Type |
Centrifugal |
||
|
Drive type |
Direct |
|||
| Compressor |
Type |
Scroll |
||
|
Quantity |
1 | |||
|
Brand |
Copeland | |||
|
Max. power input |
kw |
4.25 |
||
|
Max. current |
A |
6.4 |
||
| Outdoor Fan | Type |
Axial |
||
|
Drive type |
Direct |
|||
|
Wired controller |
|
no | ||
| sound pressure level | dB(A) |
64.9 |
||
|
Ambient temperature
|
21°C - 43°C |
|||
| Weight |
Net/Gross |
Kg | 139/142 | |
| Dimension |
Net (W×H×D)
|
mm |
1,116×830×744
|
|
|
Packing (W×H×D)
|
mm |
1,152×855×765
|
||
packed in carton,can customized different logo according to customers requirements.
