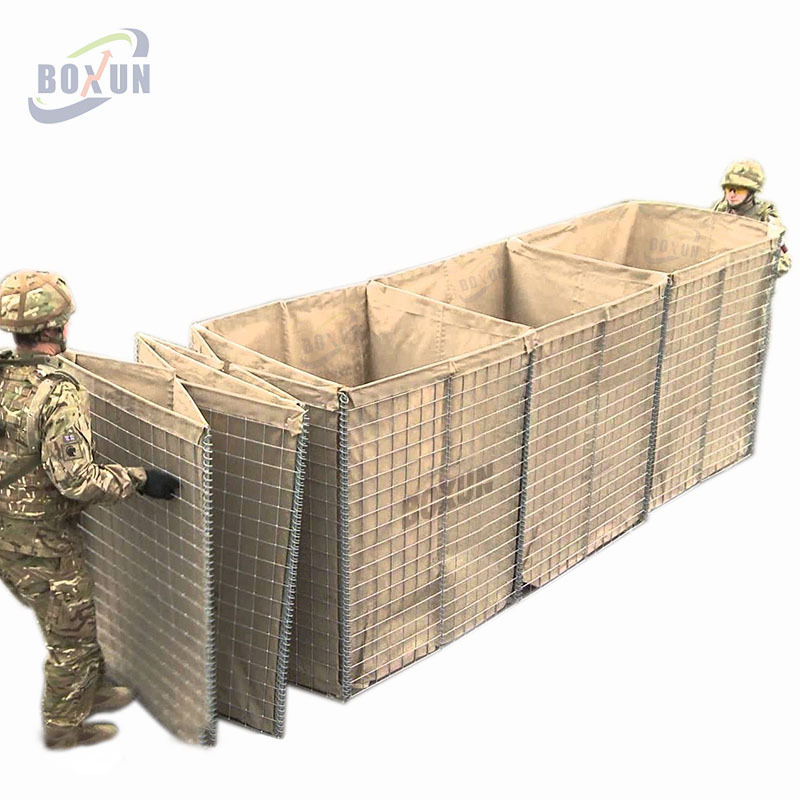

Hesco barrier / Hesco bastion
Mili
Defensive barrier/ bastion is a wall that has the ability to resist explosive shock waves and they can limit the destructive effect of the explosion to a certain range.
Compared with the reinforced concrete hesko bastion,
it has the advantages of light weight,
easy loading and unloading, recyclable and reusable. Hesko bastion uses the perfect combination of welded gabion wire and Geotextile, used as a temporary to semi-permanent levee or blast wall against explosions or small-arms.
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Hebei, China, China
-
Brand Name:
-
BOXUN
-
Model Number:
-
MIL1-19
-
Wire Gauge:
-
4.0MM
-
Product name:
-
hesco barrier
-
Surface treatment:
-
Hot Dipped Galvanized
-
Weave Style:
-
Hexagonal Double Twisted Weaving
-
Packing:
-
Pallet
Quick Details
-
Material:
-
Galvanized Iron Wire
-
Type:
-
Welded Mesh
-
Application:
-
Fence Mesh
-
Place of Origin:
-
Hebei, China, China
-
Brand Name:
-
BOXUN
-
Model Number:
-
MIL1-19
-
Wire Gauge:
-
4.0MM
-
Product name:
-
hesco barrier
-
Surface treatment:
-
Hot Dipped Galvanized
-
Weave Style:
-
Hexagonal Double Twisted Weaving
-
Packing:
-
Pallet
Mili Defensive Barrier/Bastion
strong welded HDP galvanized mesh
Heavy zinc or galfan coated
spring wire
3.0/4.0mm wire diameter
High Strength
Geotextiles
beige/green/white
Specification
|
MODEL
|
HEIGHT
(METER)
|
WIDTH
(METER)
|
LENGTH
(METER)
|
NUMBER OF CELLS
|
||||
|
M1/M1 R
|
1.37
|
1.06
|
10.00
|
5+4=9 CELLS
|
||||
|
M2/M2 R
|
0.61
|
0.61
|
1.22
|
2 CELLS
|
||||
|
M3/M3 R
|
1.00
|
1.00
|
10.00
|
5+5=10 CELLS
|
||||
|
M4/M4 R
|
1.00
|
1.52
|
10.00
|
5+5=10 CELLS
|
||||
|
M5/M5 R
|
0.61
|
0.61
|
3.05
|
5 CELLS
|
||||
|
M6/M6 R
|
1.68
|
0.61
|
3.05
|
5 CELLS
|
||||
|
M7/M7 R
|
2.21
|
2.13
|
27.74
|
5+4+4=13 CELLS
|
||||
|
M8/M8 R
|
1.37
|
1.22
|
10.00
|
5+4=9 CELLS
|
||||
|
M9/M9 R
|
1.00
|
0.76
|
9.14
|
6+6=12 CELLS
|
||||
|
M10/M10 R
|
2.21
|
1.52
|
30.50
|
5+5+5+5=20 CELLS
|
||||
|
M11/M11 R
|
1.22
|
0.30
|
1.22
|
2 CELLS
|
||||
|
M12/M12 R
|
2.13
|
1.06
|
33.00
|
5+5+5+5+5+5=30 CELLS
|
||||
|
M19/M19 R
|
2.74
|
1.06
|
3.18
|
6 CELLS
|
||||
|
"R" means recoverable barrier Mil, every single cell can be opened by removing just one pin.
|
|
|
|
|
||||
|
Material & surface treatment:
|
Galvanized steel wire or Galfan/zinc-5%aluminum wire
|
|
|
|
|||
|
Wire diameter:
|
4.0mm- 6.0mm
|
|
|
|
|||
|
Aperture:
|
76.2*76.2mm
|
|
|
|
|||
|
Non-woven geotextile
|
200g/m2, 300g/m2, 400g/m2
|
|
|
|
|||
