Quick Details
-
Reverse Speed(km/h):
-
40
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
TOP BRAND
-
Weight:
-
7000 kg
-
Dimension(L*W*H):
-
6880*2375*3150mm
-
Min. Turning Radius:
-
7.3m
-
Max. Lift Above Ground:
-
450mm
-
Max. Depth of Cut:
-
630mm
-
Engine model:
-
J-XZGR100-4BT3.9
-
Peak Torque:
-
760NM
-
Rated Power:
-
75kW
-
Reverse Speed:
-
25km/h
-
Overall Dimensions:
-
6880*2375*3150mm
Quick Details
-
Forward Speed(km/h):
-
40, 40
-
Engine Brand:
-
Top brand
-
Working diameter:
-
550mm, 550mm
-
Reverse Speed(km/h):
-
40
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
TOP BRAND
-
Weight:
-
7000 kg
-
Dimension(L*W*H):
-
6880*2375*3150mm
-
Min. Turning Radius:
-
7.3m
-
Max. Lift Above Ground:
-
450mm
-
Max. Depth of Cut:
-
630mm
-
Engine model:
-
J-XZGR100-4BT3.9
-
Peak Torque:
-
760NM
-
Rated Power:
-
75kW
-
Reverse Speed:
-
25km/h
-
Overall Dimensions:
-
6880*2375*3150mm
Product Description

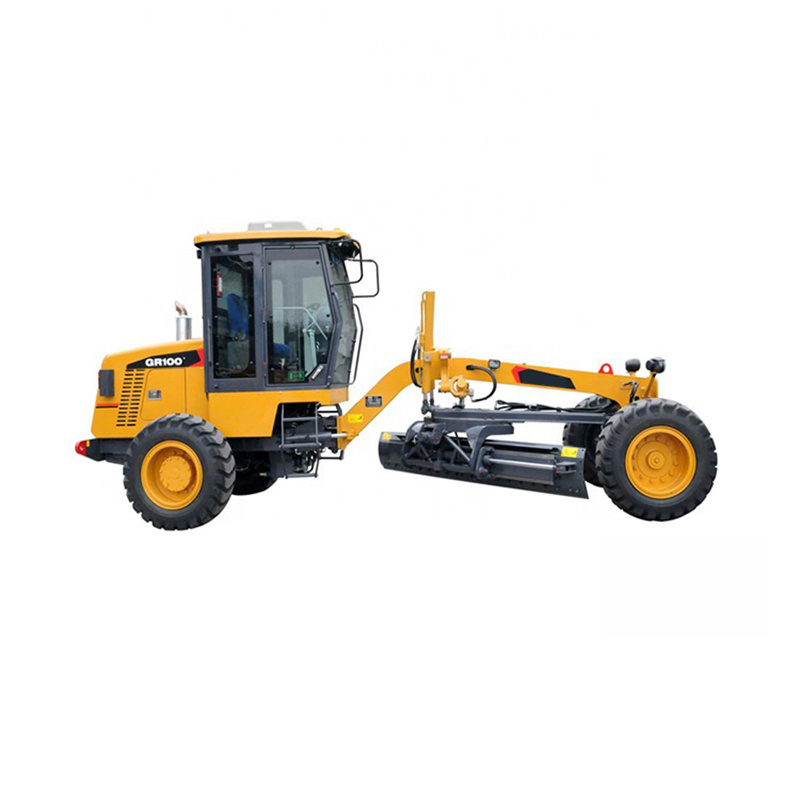

GR100 Motor Grader Road Cleaner Construction Pavement Machinery for sale in Argentina
FEATURES:
The motor grader is mainly used for ground leveling, ditching, slope scraping, bulldozing, scarification, snow removal for large
areas such as highway, airports, farmlands etc. It is the necessary construction machinery for national defense construction, mine
construction, urban and rural road construction and water conservancy construction, farmland improvement and so on.
FEATURES:
areas such as highway, airports, farmlands etc. It is the necessary construction machinery for national defense construction, mine
construction, urban and rural road construction and water conservancy construction, farmland improvement and so on.
CONTACT
Hi I'm
Viola Qian
, more details please contact me.
Mobile/Whatsapp/Wechat:
+8617816650716
E-mail: viola
@oriemac.com
Specification
|
Item
|
GR100
|
|
Engine model
|
J-XZGR100-4BT3.9
|
|
Rated power/speed
|
75(2400r/min)
|
|
Overall dimension (standard)
|
6880X2375X3150
|
|
Total weight (standard)
|
7000kg
|
|
Tire specification
|
16/70-24
|
|
Ground clearance (front axle)
|
550mm
|
|
Tread
|
1900mm
|
|
Space of front and rear axles
|
4885 mm
|
|
Forward velocity
|
5,8,11,17,24,38km/h
|
|
Reverse speed
|
5,11,24km/h
|
|
Tractive effort f=0.75
|
39.2N
|
|
Maximum gradeability
|
20%
|
|
Tire inflation pressure
|
300kPa
|
|
Working system pressure
|
16MPa
|
