Quick Details
Quick Details
-
Place of Origin:
-
guangdong

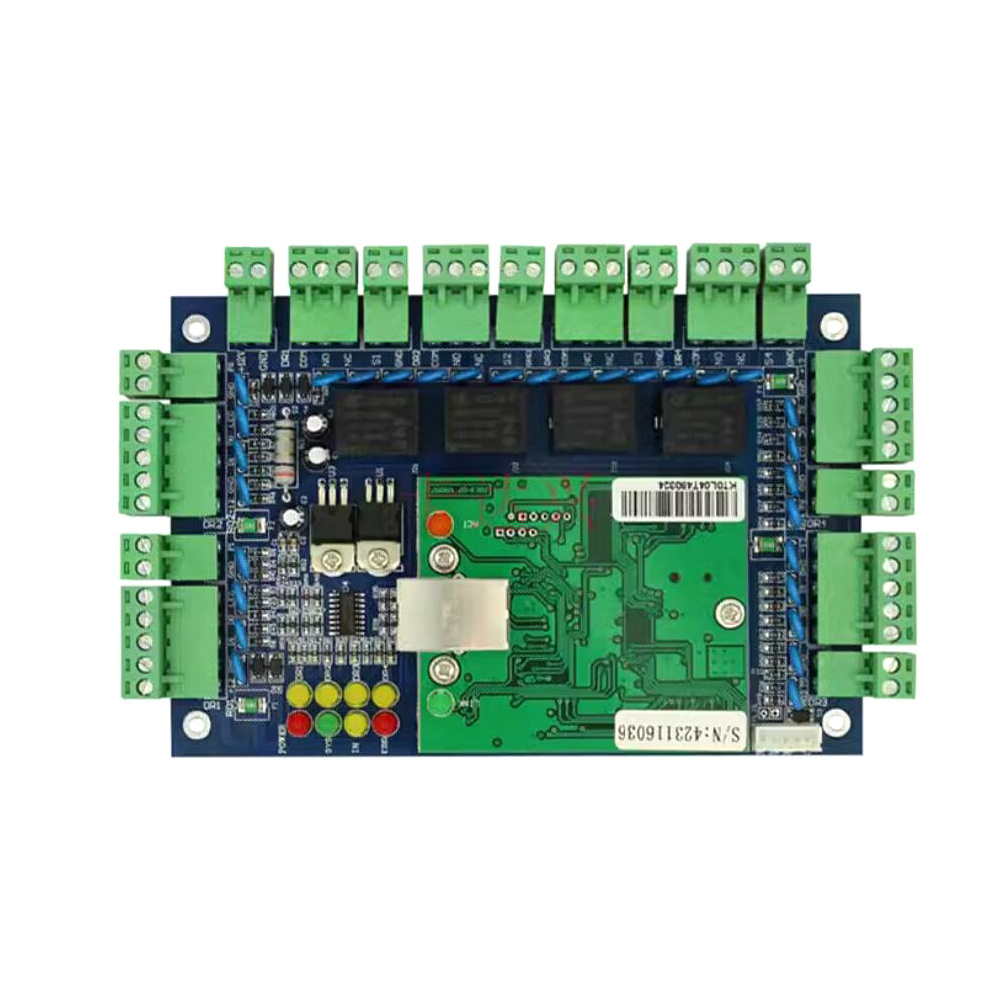

Network Access Control Panel Board With Software Communication Protocol TCP/IP Board
|
Parameter |
Single Door Control Panel |
Multi Door (2) Control Panel |
Multi Door (4) Control Panel |
|
S4A Model |
ACB-001 |
ACB-002 |
ACB-004 |
|
Communication |
TCP/IP 10M/100M adaptive |
TCP/IP 10M/100M adaptive |
TCP/IP 10M/100M adaptive |
|
Description |
Control 1 door, get in and out door by swiping card, or get in by swiping card and get out door by button |
Control 2 doors, get in and out door by swiping card, or get in by swiping card and get out door by button |
Control 4 doors, get in the door by swiping card, and get out door by button |
|
Size of PCB board |
160mm *106mm |
160mm *106mm |
218mm *106mm |
|
Size of Case |
273mm*228mm*65mm |
||
|
Power Supply |
12VDC 4-7A |
||
|
Power Consumption of Circuit Board |
Less than 100mA |
||
|
Input Format of Reader |
Wiegand 26 (All card reader with compatible protocol, such as Motorola , HID ,EM,Mifare one etc) |
||
|
Quantity of Readers |
2pcs |
4pcs |
4 pccs |
|
Door Controlled |
1door |
2 Doors |
4 Doors |
|
Door opening time extending setting |
1-600 seconds(adjustable) |
||
|
Max q ' ty of controller |
No limit |
||
