Quick Details
-
Operating Voltage:
-
DC 12V(1*23A/12V battery)
-
Operating Current:
-
10mA
-
Code Type:
-
self-copy
-
Operating Frequency:
-
315/433.92mHZ/ Customized
-
Transmitting Distance:
-
60~150m
-
Ambient Temperature:
-
-10°C ~ +50°C
-
Color:
-
black,custom
-
Dimension:
-
64.4*34.7*14.9 mm
-
Weight:
-
36g
Quick Details
-
Use:
-
Universal
-
Place of Origin:
-
Guangdong, China
-
Buttons Sum:
-
4
-
Operating Voltage:
-
DC 12V(1*23A/12V battery)
-
Operating Current:
-
10mA
-
Code Type:
-
self-copy
-
Operating Frequency:
-
315/433.92mHZ/ Customized
-
Transmitting Distance:
-
60~150m
-
Ambient Temperature:
-
-10°C ~ +50°C
-
Color:
-
black,custom
-
Dimension:
-
64.4*34.7*14.9 mm
-
Weight:
-
36g

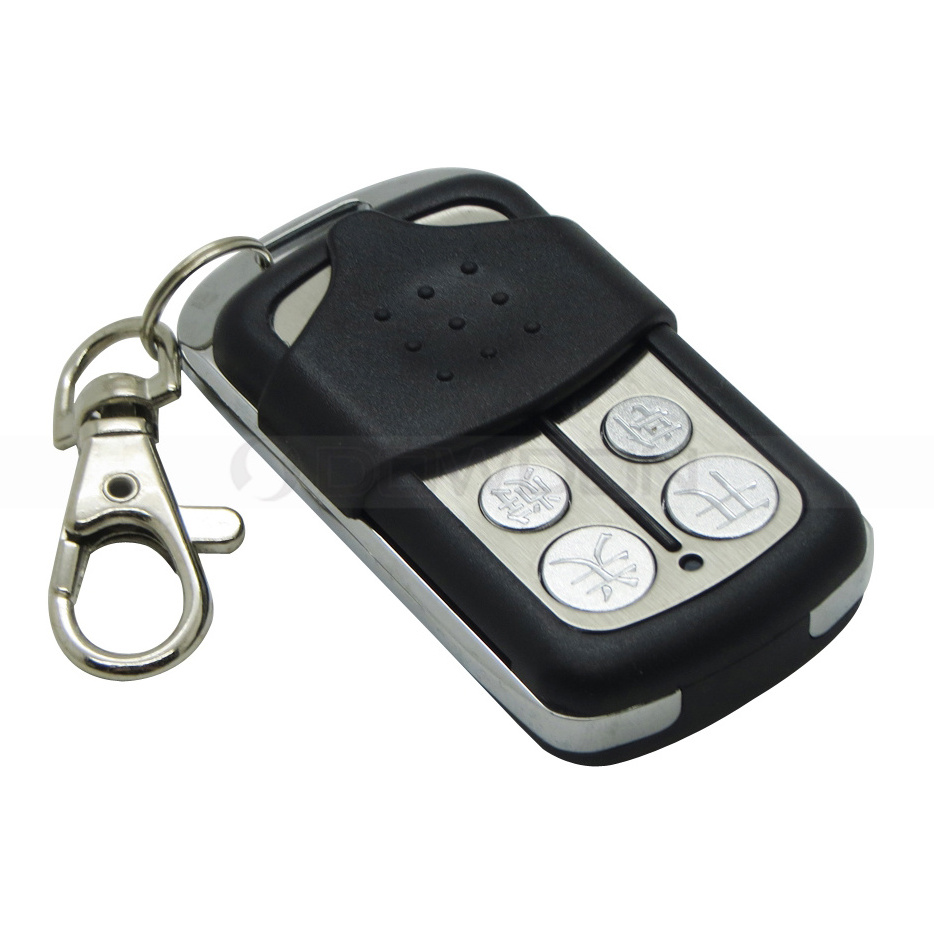

Keychain 4 Buttons 433.92Mhz RF Duplicator Metal Clone Remote Control Transmitter For Garage Door
Discription
In the configuration and selling process, most clients wish to replace the original remote control with a general remote control, while such remote control has not be developed. You may configure your remote control within 2 seconds if you meet the following three conditions:
Condition I: the original remote control may be used normally
Condition II: know the transmission frequency of original remote control (referring to the following diagram)
Condition II: know the transmission frequency of original remote control (referring to the following diagram)
Feature
1. Fixed frequency (433.92mhz or 315mhz) for copying 99.99% common fixed and learning code
remote controls.
2. Widely used in garage door,rolling door,car alarm system,anti-theft products, home security products remote control products and other industral control.
3. Face to face copy the functions of your original remote by this 4-channel RF wireless cloning remote control transmitter duplicator with code learning functions and you'll always have a back up.
4. Easy to install and use, the 4 channel remote control system lets you take control of your gadgets, car and home or garage.
5.
IC model of original remote control is 2262 2260 1527 2240 and compatible IC
6.
It is unnecessary to consider vibration resistance and address code. The project may be compatible to vibration resistance and address code.
7.
The inapplicable IC is HCS300 30 and compatible rolling code IC
8. The battery used in the product is 12V and 23 A. please replace the battery when the remote control distance is insufficient
Specification
| Buttons Sum | 4 |
| Operating Voltage | DC 12V(1*23A/12V battery) |
| Operating Current | 10mA |
| Code Type | self-copy |
| Operating Frequency | 315/433.92mHZ/ Customized |
| Transmitting Distance | 60~150m |
| Ambient Temperature | ‘-10°C ~ +50°C |
| Color | Blue,black,others |
| Dimension | 64.4*34.7*14.9 mm |
| Weight | 36g |
| Available Chip |
PT2262,PT2264,PT2260,PT2240,EV1527,FP527,FP1527SC2262,
SC2260,LX2260 etc,usually same suffix is ok, like SC2262 or PT2262 etc that with compatible performance,but no car original remote control or rolling code like HCS200,HCS201,HCS300,HCS301 etc. |
| Application |
Cars,shutter doors,curtain,rolling doors, garage doors , gates doors,
alarm systems,car alarm system , anti-theft products, home security products, remote control products and other industral control etc |
Methods of operation
1, Resetting before copying:
press two keys on copying remote control at the same time until LED flicks, indicating the resetting is successful. After resetting, press the key of remote control, and LED will be off.
2, Copying:
place the product correctly before copying. Place the original remote control and copying remote control on the desk. Use right hand to press the copying remote control until LED is on – off, indicating it enters to copying status. Use left hand to press the key of original remote control. The fast clicking of LED of remote control indicates success in copying. The copying method is the same as for several keys.
3, Tips:
If you reset the code of remote control and want to recover, press two keys until LED light flicks. The other way, you can delete all and relearn them again.
