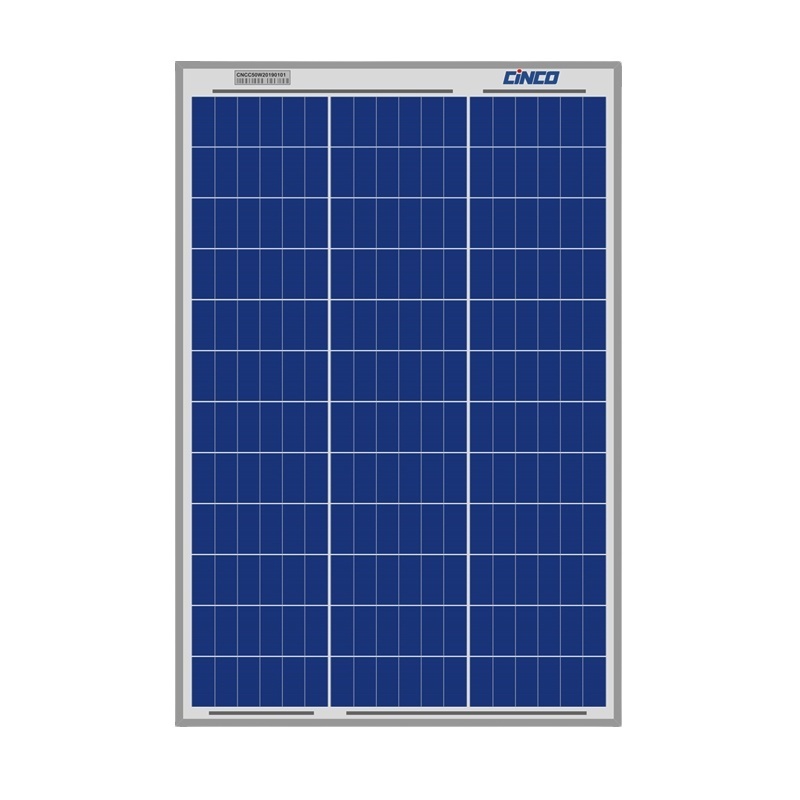

50W poly panel module, pvt hybrid solar panel with battery pack

50W poly panel module, pvt hybrid solar panel with battery pack

FOB Reference Price: Get Latest Price

≥1 Pieces

US $0.56

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Panel Efficiency:: 14.1%

Certificate:: TUV CE ISO, ce tuv

Size:: 695mm*510mm*25mm

Warranty:: 5 years

Quick Details

Brand Name:: CINCO

Model Number:: CNCC50W

Place of Origin:: Zhejiang, China

Panel Efficiency:: 14.1%

Certificate:: TUV CE ISO, ce tuv

Size:: 695mm*510mm*25mm

Warranty:: 5 years

Products Description

High Quality Solar Panel

Mono crystalline
Poly crystalline

1. Rigorous quality control meeting the highest international standards
2. High-transmissivity low-iron tempered glass, strong aluminium frame Using UV-resistant silicon

3. Aesthetic appearance with
excellent efficiency based on innovative photovoltalic technologies

4. High quality,strong aluminium frame,passing mechanical load
testing 5400 Pa and wind pressure 2400Pa

PERC Solar Panel

25 Year Warranty

5BB/12BB Mono/Poly Solar Cell

PV Junction Box

Aluminum frame

High transmission glass

Details Images

Product Paramenters

Electrical Characteristics
Model	CNCC50W
Maximum Power at STC (Pmax)	50W
Optimum Operating Voltage (Vmp)	17.8V
Optimum Operating Current (Imp)	2.81A
Open-Circuit Voltage (Voc)	22V
Short-Circuit Current (Isc)	3.01A
Solar Module Efficiency (%)	14.1%
Operating Temperature	-40 to 85℃
Maximum System Voltage	DC1000
Maximum Series Fuse Rating	15A
Power Tolerance	+/-3%
Mechanical Characteristics
Solar cell	Mono-Crystalline156*156mm
No.of cells	cut cell
Front glass	3.2mm tempered glass
Frame	Anodized aluminium alloy
Dimensions	695mm510mm25mm
Weight	5kg
Temperature Coefficient
Nominal Operating Cell Temperature (NOCT)	45℃+/-2℃
Temperature Coefficient of Pmax	-0.39%/℃
Temperature Coefficient of VOC	-0.29%/℃
Temperature Coefficient of ISC	+0.049%/℃
STC:Irradiance 1000W/㎡,Modules Temperature 25℃,AM=1.5
