Quick Details
-
Brand Name:
-
XGN
-
Dimension(L*W*H):
-
Depend on model
-
Weight:
-
8300 KG
-
Marketing Type:
-
New Product 2023
-
Product name:
-

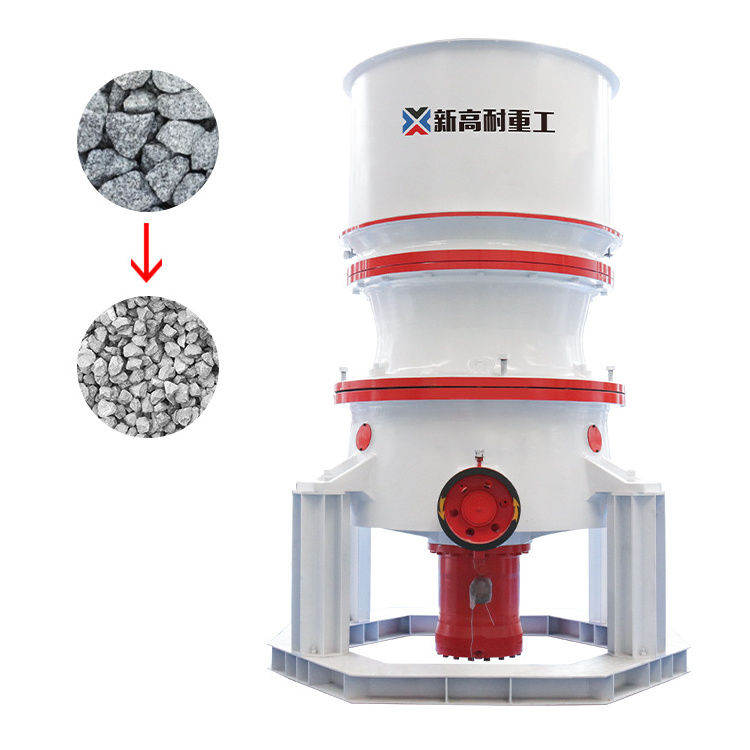

GP Cylinder Cone Crusher
-
Model Number:
-
XGP100
-
The Machines classification:
-
Stone Crashing Machine
-
Processed Materials:
-
granite, basalt, iron ore, quartz
-
Max feeding size:
-
250mm
-
Discharge size:
-
5-65mm
-
Motor power:
-
90kw
-
Capacity:
-
35-235tph
-
Spare parts supply:
-
Lifelong Time
-
After-sales Service Provided:
-
Service Machinery Overseas
Quick Details
-
Application:
-
mill crusher stone hand stone crusher for mining
-
Capacity(t/h):
-
35-235TPH
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
XGN
-
Dimension(L*W*H):
-
Depend on model
-
Weight:
-
8300 KG
-
Marketing Type:
-
New Product 2023
-
Product name:
-
GP Cylinder Cone Crusher
-
Model Number:
-
XGP100
-
The Machines classification:
-
Stone Crashing Machine
-
Processed Materials:
-
granite, basalt, iron ore, quartz
-
Max feeding size:
-
250mm
-
Discharge size:
-
5-65mm
-
Motor power:
-
90kw
-
Capacity:
-
35-235tph
-
Spare parts supply:
-
Lifelong Time
-
After-sales Service Provided:
-
Service Machinery Overseas
Machine Structure
Xingaonai Mining Machine Hard Rock Granite Stone Crusher Price Hot Sale India Market GP300 GP600 Single Cylinder Hydraulic Cone Crusher
①
Especially the GP Secondary models have massive
feed opening, which stays constant throughout the wear
part lifetime GP cones can also tolerate on/off feeding
and running with empty cavity
feed opening, which stays constant throughout the wear
part lifetime GP cones can also tolerate on/off feeding
and running with empty cavity
②
No backing material needed for wear part installation! Very little head spin with long vertical main shaft travel range enables high utilization of the manganese.
③
High pivot point results to linear compressive stroke, less manganese attrition wear and high capacity together with high maximum power ratings. Same top bearing can be used with all of the stroke length options.
④
The stroke length and thus many aspects of the production of the crusher are easily adjustable by rotating or swapping the eccentric bronze bushing inside the crusher.
⑤
CSS of the XGP cone can be adjusted during crushing by the oil volume under the main shaft via the IC50C automation, also making e.g. wear compensation possible!
Product Parameters
Remarks: Any changes of technical data shall not be advised additionally.
Products Description
Why choose Xingaonai GP Series Single Cylinder Hydraulic Cone Crusher
The XGP series single-cylinder hydraulic cone crusher developed by Xingaonai Group through optimization and grading integrates machinery, hydraulic pressure, automation, intelligent control and other technologies. It is suitable for medium and fine crushing operations of relatively hard materials, with high automation and low production costs. And other advantages, occupy an important share in the mine crushing equipment market.
Why Choose Us
Stone Crushing & Grinding First Brand
We have
3
manufacturing base
Zhengzhou City, Henan Province
Wuzhi City, Henan Province
Xiuwu City, Henan Province
We have
2
brand
Zhengzhou Xingaonai Heavy Industry Machinery Co., Ltd.
(For middle hard stone solutions)
Jiaozuo Pathfinder Heavy Industry
Machinery Co.,Ltd,
(For hard stone solutions)
We have 33 service station worldwide
Give clear solutions within 12 hours
Rush to the site within 24 hours
Xingaonai Group is specialized in R&D and manufacturing of stone crushing, sand making, powder grinding, screening, feeding, conveying, dust collecting and other equipment, we give One-stop Green-Smart-Efficient mining solutions.
Innovation can't just be said in words, it must be turned into a project, and the innovation must be implemented. Today, the company has continuously developed crushing equipment, sand making equipment, mineral processing equipment, supporting equipment, etc. with keen market insight and forward-looking Multi-series, more than 100 models of highly influential products have created more value for enterprises and society.
Our group continuously researches and develops new equipment, adjusts product structure, improves product system, intensively cultivates the core fields of "building crushing, mine crushing, industrial sand making, green building materials, and metal beneficiation", builds three modern equipment production bases, and establishes large-scale equipment The production line continuously improves the production capacity and market influence of the enterprise. In addition to the XGN-Q series hammer crusher, the types of medium and large intelligent crushing equipment are also becoming more and more perfect.
Certifications
Exhibition
Packaging & Logistics
Packing
1.The equipment and wearing parts are packed in plastic film and wooden box.
2.FCL:Shipped in standard export container.3.Various packaging methods can be provided according to customer requirements, such as: fumigation-free wooden boxes, steel boxes, etc.
Sea freight
We ship the goods to China's main seaports, such as Qingdao, Tianjin, Shanghai, etc., and then ship the equipment to your country by sea.
FAQ
A) What is the core competitiveness of the company?
We regard product development as a key task, and develop new products with strong technology, intensive knowledge and good market prospects by tracking demand hot spots and aiming at technological progress in the industry.
B) Product line coverage?
The main business is the equipment required for the production line with an output of 100-6000 tons per hour.
C) What is the main business direction of the product?
Our comprehensive solutions for a range of processes in rock crushing and metal ore.
D) Does the company undertake to build a complete production line?
According to customer needs, we tailor-made recommendations or customization, fast and accurate understanding, special car transportation and distribution, customer inspection and after-sales service, escorting you.
E) Does the company have relevant crusher parts services?
We can provide all kinds of accessories for crushing and screening equipment, with advanced technology, reliable performance and durability, to ensure that customers' needs can be met in a timely and effective manner.
