Quick Details
Quick Details
-
Model Number:
-
TDJL4IN1USBHUB
-
Place of Origin:
-
Guangdong, China
-
Supplier Type:
-
OEM

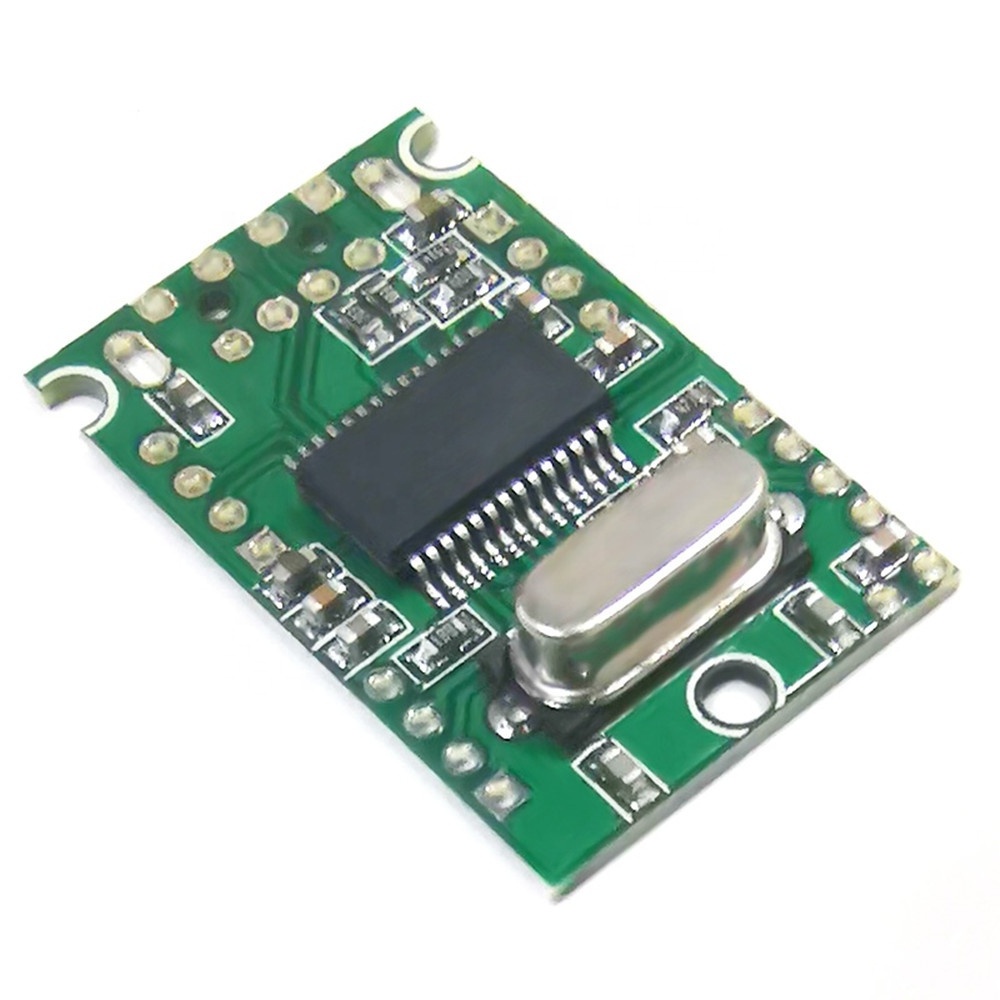

Taidacent 5V External Power USB Hub Control Module 4 In 1 High Speed Four Port USB Extender Board 4 Ports USB 2.0 Hub PCB
Size: 29.5mm*18.9mm*4.8mm (length * width * height)
Reserve the power input port at the upper left corner of the board, marking the 5Vin position.
When a high-current peripheral is connected, when the 5V power supply current from the USB input port is not enough, the external reserved power input port can be enabled.
High speed, stability, low heat generation and low power consumption are our design concepts
We re-burned Linux kernel, Ubuntu, Android, windows XP, win2000, win 7, win8, win10 and other system platform drivers in the chip.
All systems are drive-free, plug-and-play, and one-way expansion module for 4-way multi-interface equipment.
Computer motherboard (2.54mm interface is reserved for the input of this module)
Expansion of the USB port of the integrated computer
USB port expansion for notebooks and tablets
Expansion of USB interface of Raspberry Pi, ARM, MIPS chip development board
Expansion of USB interface of advertising machine and network TV
Network camera USB port expansion, etc.
The USB extender module has no connection sockets, and reserved pads for each pin. The input holes are reserved for the standard 2.54mm and 2.0mm single-row pins on the main brain motherboard. The four USB ports are all 2.0mm single-row pins. Three 2mm diameter positioning holes
PCBA bare board is convenient for each user to DIY each interface peripheral.
Product Description
Specification
|
item
|
value
|
|
Supplier Type
|
OEM
|
|
Model Number
|
TDJL4IN1USBHUB
|
|
Place of Origin
|
China
|
|
|
Guangdong
|
Packing & Delivery
Box package
