Picks stones from 3cm to 45cm in diameter. It does not collect soil and mud thanks to the spring sieve, spring drum system and
intermittent storage sheet.
Provides long blade life with Hardox material.
Reliable specially designed pad/gearbox system does not cause problems as long as oil maintenance is not delayed, it is
long-lasting.
Easy changeable blade and spring system allows blade and spring replacement without the need for service.
Field-type hydraulic lift tank system with a discharge height of 2.6m offers the possibility of unloading to any desired vehicle
and area.
Our 140cm, 175cm, 200cm garden and field models offer a machine option suitable for every tractor and every terrain.
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Konya, Turkey
-
Brand Name:
-
AGROMEKS
-
Product name:
-

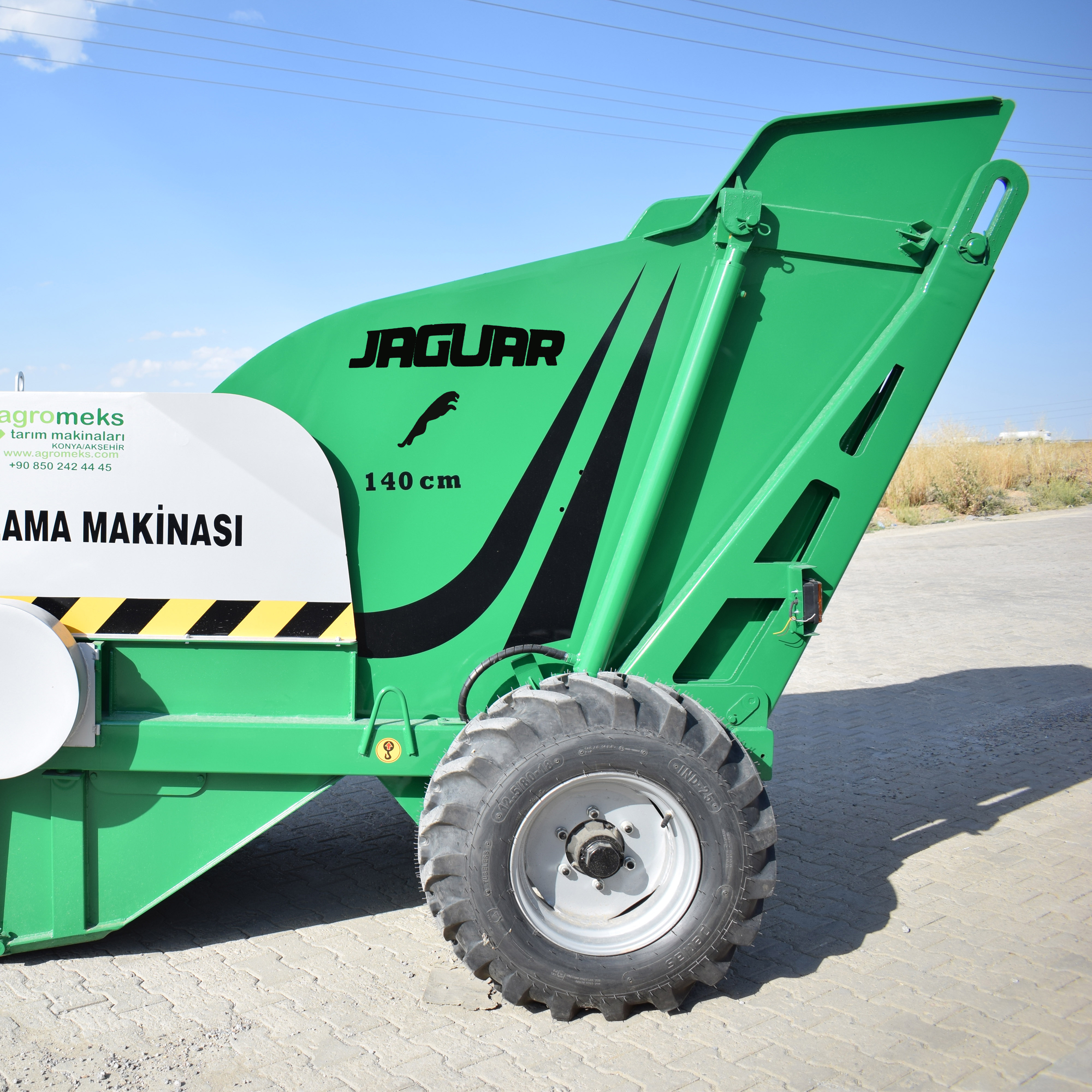

JAGUAR-140
-
Usage:
-
Picking, Collecting Stone fr Farm Field
-
Working Width:
-
140cm
-
Working Depth:
-
0-35cm
-
Storage Capacity:
-
4.500kg
-
Working Speed:
-
0-5km/hr
-
Required Tractor HP:
-
55hp (min.)
-
Weight:
-
2800kg
-
Pickable Stone Diameter (max):
-
60cm
-
Pickable Stone Weight (max):
-
100kg
Quick Details
-
Weight (KG):
-
2800
-
Type:
-
Stone Picker
-
Use:
-
Picking, Collecting Stones
-
Place of Origin:
-
Konya, Turkey
-
Brand Name:
-
AGROMEKS
-
Product name:
-
JAGUAR-140
-
Usage:
-
Picking, Collecting Stone fr Farm Field
-
Working Width:
-
140cm
-
Working Depth:
-
0-35cm
-
Storage Capacity:
-
4.500kg
-
Working Speed:
-
0-5km/hr
-
Required Tractor HP:
-
55hp (min.)
-
Weight:
-
2800kg
-
Pickable Stone Diameter (max):
-
60cm
-
Pickable Stone Weight (max):
-
100kg
Product Overview
PRODUCT SPECIFICATIONS
|
No
|
Item
|
Data
|
|
|
|
1
|
Model
|
JAGUAR-140
|
|
|
|
2
|
Working Depth
|
0-35CM
|
|
|
|
3
|
Working Width
|
140CM
|
|
|
|
4
|
Working Speed
|
0-5km/hr
|
|
|
|
5
|
Storage Capacity
|
4.500KG
|
|
|
|
6
|
Unload Height
|
255CM
|
|
|
|
7
|
Required Tractor HP
|
55HP
|
|
|
|
8
|
Dimension
|
225*255*520CM
|
|
|
PRODUCT CONFIGURATION
Automatic Chain Tensioner
Roller Bearings with Springs
Slieve Holder with Springs
