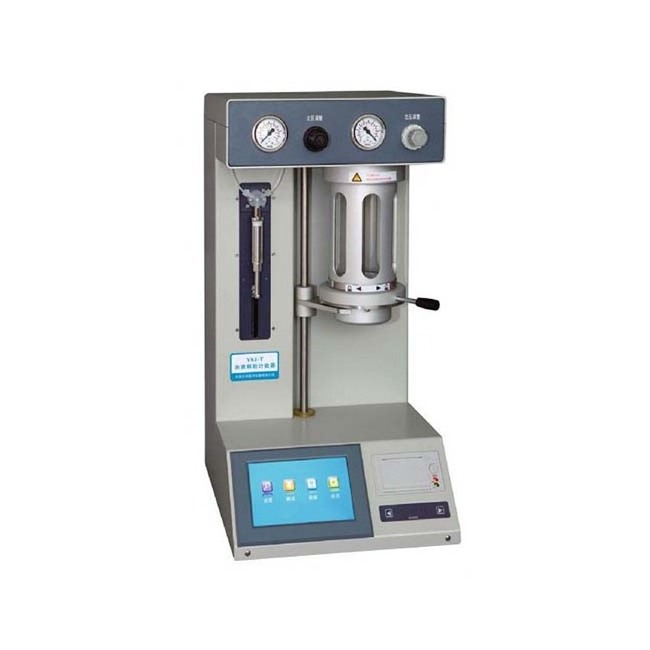

YKJ-A Hot Sales Automatic oil particle counter

YKJ-A Hot Sales Automatic oil particle counter

Description

YKJ-A automatic oil particle counter is based on GB / T 18854-2002 (ISO11171-1999) and other national and international standards developed specifically for oil pollution particle levels in the test instrument. YKJ-A automatic oil particle counter method using photoresist (shading method) design principles for detecting liquid particles in the size and number. Can be widely used in aviation, aerospace, electric power, petroleum, chemical, transportation, port,

metallurgy, machinery, automobile manufacturing and other fields.

It can detect hydraulic oil, lubricating oil, transformer oil (insulating oil), turbine oil (turbine oil), gear oil, engine oil, aviation kerosene, water-based hydraulic oil, oil pollution solid particles and organic liquid polymer solution for particulate matter.

Key Features

1.Adoption of international standards established by the Committee of the shading hydraulic counting principles

2. The instrument in full compliance with military standards and international standards for oil detection.

3.The use of advanced high-pressure injection pump and injection system combined with positive pressure, injection speed and stability, high accuracy sampling

4. sample size can be set on their own, to facilitate detection

5. Built-in four commonly used standard GJB-420B, NAS1638, ISO4406 and OCT17216- 71

6. Built-in two calibration curves, compatible with all international standards

7. Support for custom standard test

8. Full automatic operation, no external computer and printer

9. Using laser diodes as a light source, high performance, long service life

10. bottle sampling method used, the pressure range, can be seized goods of different viscosity test

11. has data storage capabilities, user-friendly view

12.structure simple and elegant, touch-screen operation is easy and convenient

Technical Specifications

1. Light source: semiconductor laser

2. Size range: 1um ~ 400um

3. detection channels: 8-channel arbitrary particle size (sensor test range)

4. Resolution: better than 10% (GBT18854-2002)

5. Repeatability: RSD <2%

6. medium: hydraulic oil, fuel oil, transparent liquid

7. Viscosity range: 350cSt

8. sample volume: 0.2 ~ 1000.0ml

9.Sampling accuracy: better than ± 1% ·

10.sampling rate: 5mL/min ~ 80mL/min ·

11.largest vacuum chamber pressure: 0.08MPa ·

12.pressure compartment maximum pressure: 0.8MPa

13. Limit of coincidence error: 10000 / mL

14. data output: Instrument testing has shown that built-in printer output, RS232 standard serial output

15.data storage: 100 Group

16.Power: 220V, 50Hz
