Quick Details
-
Model Number:
-
XT-350
-
Color:
-
Orange
-
Signal Transmission Distance:
-
more than 3 km
-
Operating Temperature:
-
-10 ~ 40°C
-
Storage Temperature:
-
-20 ~ 50°C
-
Induction Distance:
-
less than 20mm
-
Power Supply:
-
DC, 2 x 9V battery
-
Battery Life:
-
50 hours continuously
-
Max Working Current:
-
Emitter: ≤ 10 mA; Receiver: ≤ 30 mA
-
Signal Output:
-
8Vp-p
-
Weight:
-
379g
Quick Details
-
Power:
-
Electronic
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
OEM
-
Model Number:
-
XT-350
-
Color:
-
Orange
-
Signal Transmission Distance:
-
more than 3 km
-
Operating Temperature:
-
-10 ~ 40°C
-
Storage Temperature:
-
-20 ~ 50°C
-
Induction Distance:
-
less than 20mm
-
Power Supply:
-
DC, 2 x 9V battery
-
Battery Life:
-
50 hours continuously
-
Max Working Current:
-
Emitter: ≤ 10 mA; Receiver: ≤ 30 mA
-
Signal Output:
-
8Vp-p
-
Weight:
-
379g

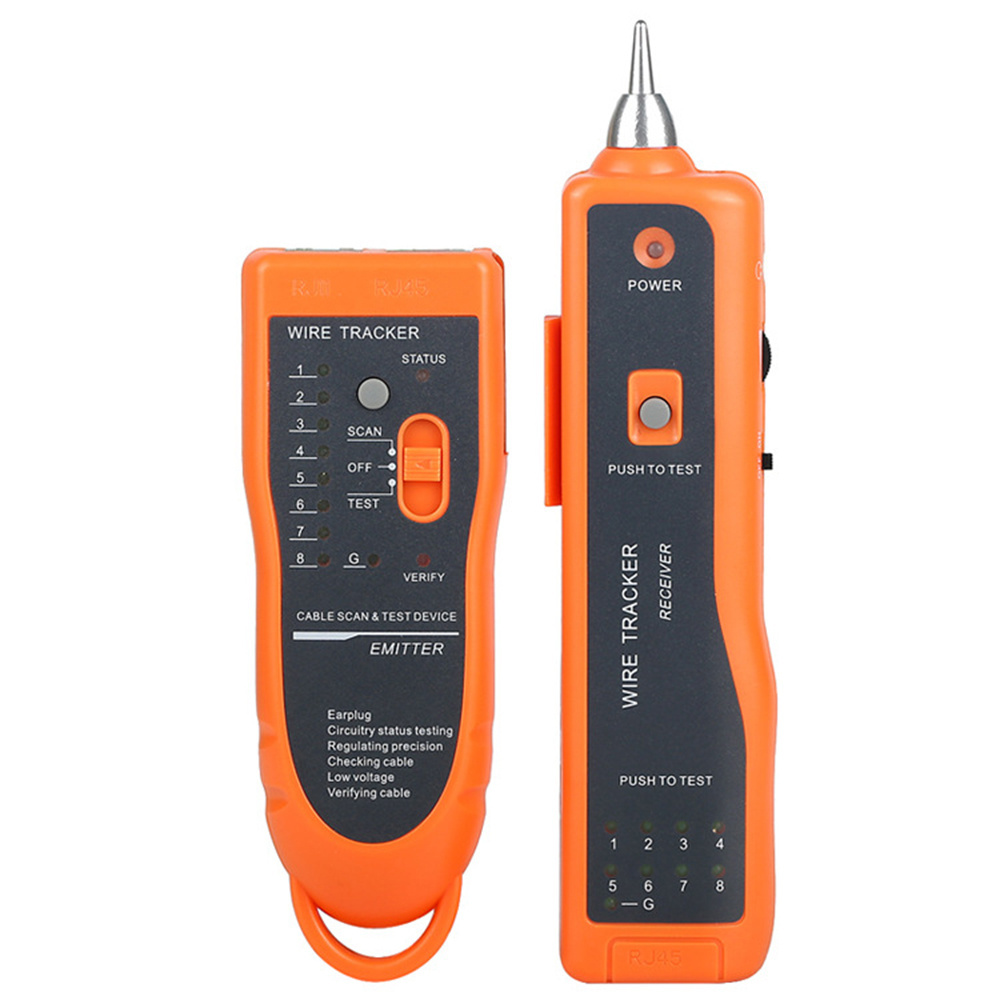

Multifunctional Cable Tester Finder for RJ45/RJ11 Network Lan Cable Tester
Descriptions:
This professional wire tracking set is the latest instrument specialized in tracking of various commonly used cable and wire. The set composed of an emitter and a receiver and the pair allows us to find target wire among plenty rapidly and accurately. The receiver have both sound and LED signal indicators. By comparing the volume of the "tout" sound and the brightness of LED, you can find the target wire with the highest volume and brightness.
Functions:
- Easy to operate and smooth appearance
- Flexible interface,wide application
- Trace telephone wire/LAN cable
- Trace wire in electrical system
- Verify LAN cable condition
- Portable and easy to carry
- Light touch switch,saving energy and power
- Indicator and sound reminding
- Useful Network Wire Tracker High Quality Network Cable Tracker for RJ45/RJ11.
- Quick or slow,volume adjustable
- Headset to fit the noisy environment
- Software control,stable and reliable
- Wire tracking(able to track wires with exchanger,router on or off)
- Wire verification(with 18 indicators,short circuit,broken circuit,crossing,etc. can be tracked)
Key Features:
- Find wire on all types of connected operating Ethernet switch/router/PC terminal
- Rapidly find the target wire form among plenty of telephone wires
- Rapidly find the target wire form among plenty of network wires
- It can take place of cable tester
- Compare the volume of the tout sound and the brightness of the signal indicator. Then you can find the target wire which has the highest volume and brightest indicator
Specifications:
- Max working current: Emitter: ≤ 10 mA; Receiver: ≤ 30 mA
- Signal output electric status: 8Vp-p
- Signal transmission format: Multi-frequency impulse
- Induction distance less than 20mm
- Distance of signal transmission: ≥3 km
- Power supply: DC, 2 x 9V battery
- Battery life: 50 hours continuously
- Storage Temperature: -20 ~ 50°C
- Operating Temperature: -10 ~ 40°C
- Item dimension:
- Emitter: approx. 126mm(L) x 49mm(W) x 34mm(D)
- Receiver: approx. 175mm(L) x 42mm(W) x 27mm(D)
Specifications:
|
Product Name |
Wire Tracker |
|
|
Test Type |
UTP&STP RJ45/RJ11 |
|
|
Main Function |
Locating the cable |
|
|
Confirming the cable |
||
|
Checking the status of the circuity |
||
|
Other Function |
Open/Short circuit testing function |
|
|
DC level testing function |
||
|
Low voltage alarm function |
||
|
Earphone function |
||
|
Volume adjusting function |
||
|
Spotlight function |
||
|
Energy-saving |
||
|
Power |
DC 9V Battery |
|
|
The max working current |
Emitter: |
≤ 10mA |
|
Receiver: |
≤ 30mA |
|
|
Signal transmission format |
Multi-frequency impulse |
|
|
Signal output electric status |
8Vp-p |
|
|
Display |
Visible LED display provides operation status. |
|
|
Distance of signal transmission |
≥3km |
|
|
Color |
Blue |
|
|
Appearance dimension |
Emitter: |
126*49*34mm |
|
Receiver: |
175*42*27mm |
|
|
Whole set: |
270*165*45mm |
|
|
Weight |
Emitter: |
60g |
|
Receiver: |
72g |
|
|
Whole set: |
420g |
|
Package Includes:
1 x Emitter
1 x Receiver
1 x Earphone
2 x 9V laminated battery
1 x RJ11 adapter line
1 x Alligator clip adaptation line
1 x RJ45 adapter line
1 x Service manual
1 x Bag In Retail Packing
