Quick Details
-
Model Number:
-
SMT802A
-
Model Number::
-
SMT802A
-
Applicable PCB:
-
20mm*20mm--340mm*340mm
-
Applicable components:
-
0402,0606,0805,SOP8 ...QFN
-
Mounting accuracy:
-
±0.025mm
-
Machine dimension:
-
L950*W700*H300mm
-
XY moving range:
-
425*500mm
-
Z axis moving range:
-
15mm
-
Video:
-
https://www.youtube.com/channel/UCHg2VCSolCuFeYLKxXAp9PA
-
Components supply configuration:
-
Tape real,bulk package(IC)
-
keyword:
-
led manufacturing machine
Quick Details
-
Weight (KG):
-
58
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
YX
-
Model Number:
-
SMT802A
-
Model Number::
-
SMT802A
-
Applicable PCB:
-
20mm*20mm--340mm*340mm
-
Applicable components:
-
0402,0606,0805,SOP8 ...QFN
-
Mounting accuracy:
-
±0.025mm
-
Machine dimension:
-
L950*W700*H300mm
-
XY moving range:
-
425*500mm
-
Z axis moving range:
-
15mm
-
Video:
-
https://www.youtube.com/channel/UCHg2VCSolCuFeYLKxXAp9PA
-
Components supply configuration:
-
Tape real,bulk package(IC)
-
keyword:
-
led manufacturing machine
Product Description
Feature
1. intelligent double vision.
2. 29pcs standard reel feeders.
3. upgrade HIWIN square slide rails.
4. newly second-generation roll feeder.
Part list

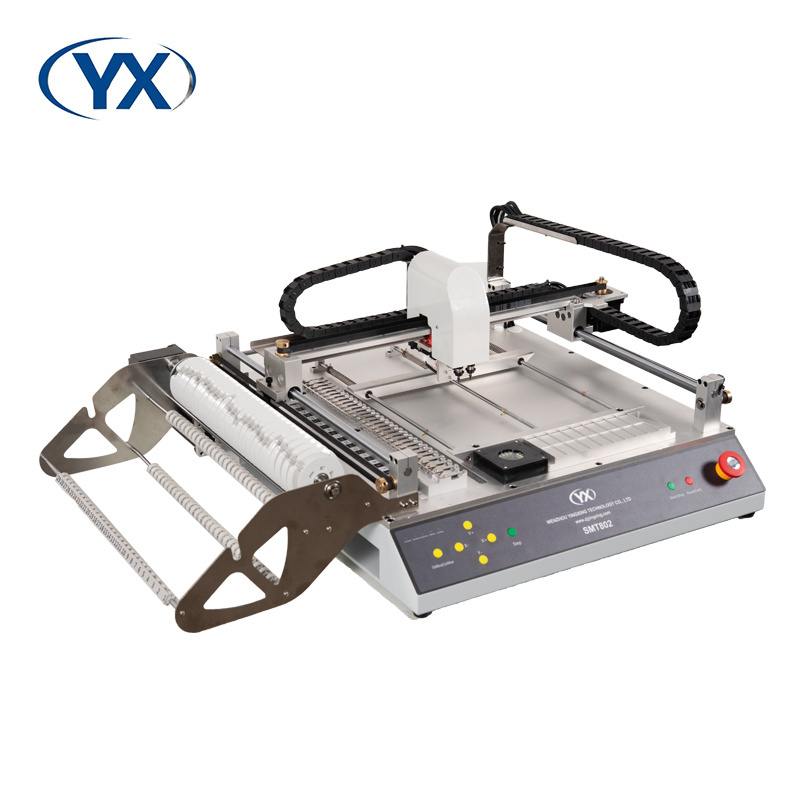

1.SMT802A pick and place machine: 1 Set
2.User Manual CD:1 PCS CD disk:1PCS USB: 1 PCS Power Line: 1PCS Screw Driver:1 Set
3.4 kind nozzle:1 Set (Totally 4: 503-1, 504-1, 505-1, 506-1)
4.Spare Parts: 1 Set(Grease: 1 box, Wrench:1 PCS, Teasing needle:1 PCS,Rubbing ring:Several)
The SMT802 software was developed by ourselves.
The software is available in English. And our software will be updated, as soon as there is an update, the salesman will send new software to your mailbox.
The SMT802 machine has one year warranty, lifetime maintenance.
We have a professional after-sales team. As long as there is a problem with the machine within one year after purchase, we will repair it for free. If there is a need to replace the accessories, we will send them to your hands for free.(Generally we use TNT/DHL. 3-5 business days to your hands)
|
Model
|
SMT802A
|
|
Max Applicable PCB
|
20*20mm-340*340mm
|
|
Max XY Moving Rang
|
395*450mm
|
|
Max Z Moving Range
|
12.5mm
|
|
Placement Head Quantity
|
2
|
|
Mounting Speed without Vision
|
7000CPH
|
|
Mounting Speed with Vision
|
5500CPH
|
|
Mounting Accuracy
|
±0.025mm
|
|
Applicable Component
|
0402-5050 . SOP . TQFP . QFN BGA etc.
|
|
Component Supply
|
tape reel , bulk , tubblar , tray etc.
|
|
Vision System
|
2 HDCCD camera
|
|
Driver
|
high voltage driver
|
|
Feeder Count ＆ Tape Width
|
total=29PCS 8mm=25pcs , 12mm=3PCS 16mm=1PCS
|
|
Pump
|
silent brushless vacuum pump , blowing pump
|
|
Leakage Material Detection
|
vacuum
|
|
Power
|
125W (average power)
|
|
Power Supply
|
AC220V or AC110V
|
|
Machine Size
|
L940*W640*H330mm
|
|
Package Size
|
L1070*W770*H420mm
|
|
Volume
|
0.32CBM
|
|
Net Weight
|
45kg
|
|
Gross Weight
|
58kg
|
|
Support PCB Design Software
|
protl99 / altium designer / eagle / pads / allegre etc.
|
