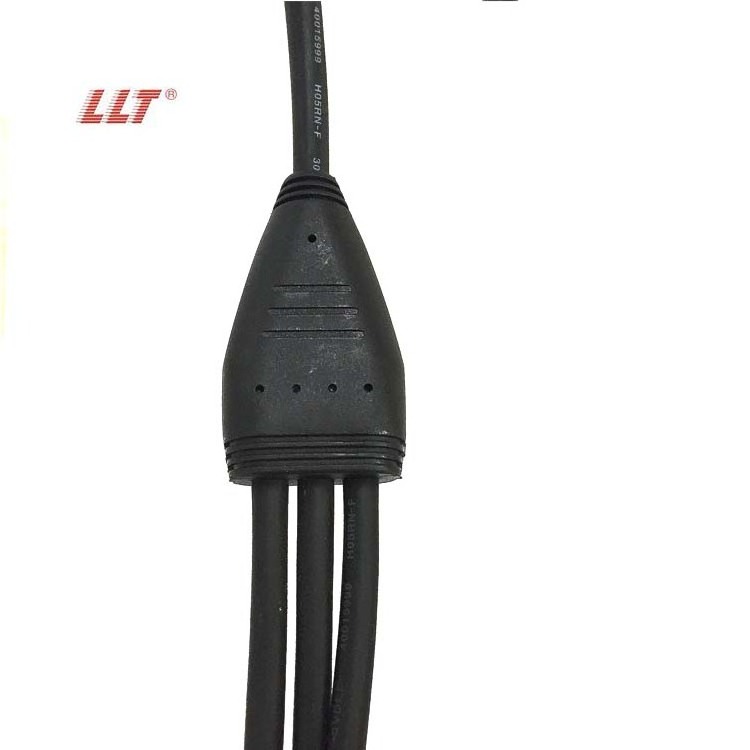

Plastic cable molded 1 input to 3 output y ip65 waterproof cable splitter connector

Plastic cable molded 1 input to 3 output y ip65 waterproof cable splitter connector

FOB Reference Price: Get Latest Price

≥100 Pieces

US $1

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Pins:: 4p, 3P, 2P

Product name:: waterproof 1 to 3 y connector

Feature:: 1 to 3 connector

Material:: High quality Nylon PA66,UL94-V0

Warranty:: 12 month

Protection level:: IP68/IP67 waterproof

Service:: Client's Drawing is available

Certificate:: TUV UL CE CQC ROHS

Connector type:: 3 way wire connector waterproof

Keywords:: led outdoor lighting waterproof connector

Quick Details

Type:: Y connector

Application:: Outdoor LED Display / Lighting

Gender:: Male

Pins:: 4p, 3P, 2P

Product name:: waterproof 1 to 3 y connector

Feature:: 1 to 3 connector

Material:: High quality Nylon PA66,UL94-V0

Warranty:: 12 month

Protection level:: IP68/IP67 waterproof

Service:: Client's Drawing is available

Certificate:: TUV UL CE CQC ROHS

Connector type:: 3 way wire connector waterproof

Keywords:: led outdoor lighting waterproof connector

Our Related Products

Plastic cable molded 1 input to 3 output y ip65 waterproof cable splitter connector

company name card

Specification:

1	Model No.	LLT waterproof y type cable connector
2	Material	Connector Body	Nylon(PA66)+GF UL94V-0 1/16''
3		Contact	Brass with Gold Plated
4		Sealing	Silica Gel
5	Property	Current Rating	15AMP
6		Voltage Rating	250V
7		Contact Resistance	<10mΩ
8		Insulation Resistance	1000MΩ at DC 500V
9		Breakdown Voltage	1.5KV/1minute
10		Temperature Rating	-45 °C~ +105 °C
11		Durability(Plug/Unplug)	3000 times
12		Waterproof Rating	IP67
13		Cable Max. Diameter	8.5mm
14		Pins Range	2,3,4
15	Certificate	CCC; CE; RoHS;SAA

Products Advantage

Products Application

These products are widely used for outdoor lighting,precision automation machinery,new energy vehicles and charging equipment,electricity generation facility,coal mine,oil drilling industry,communication network,underwater detector,civil air vehicle,military vehicles and other industries.

Company introduction

LLT TECHNOLOGY INDUSTRY Co., Ltd ----based in ShenZhen which is a global large-scale production enterprise, specializing in the production of high tech precision outdoor waterproof connector,aviation plug,wire and cable.

With stable,reliable quality and excellent service,We got good recognition and Comment from a lot of customers at home and abroad.

Through more than 20 years of unremitting efforts, LLT has a proven history of providing customer-driven, avant-garde, qualified safety products.

Our customers are as below:

1.London Olympic Games
2. 2008 China Olympics-the Birds Nest Stadium and the Water Cube
3. Guangzhou Asian Games
4.Shanghai World Expo
5.Shenzhen Subway
6.Western Corridor
7.Cnooc drilling platform
8.China high-speed railway
9.HUAWEI

Packaging & Shipping

Packing :1.plastic bag 2.Carton 3. As customer requirement.
Shipping : all shipment term is available , Competitive express freight such as DHL/FedEx/UPS with door to door service, by air and by sea.
