Quick Details
-
Weight:
-
500-1000kg
-
Size:
-
Varies with model
-
Power:
-
0.55-1.5kw
-
Productivity:
-
Varies with model
-
Weight (KG):
-
500 kg
-
Application:
-
Wastewater Tertment
-
Certification:
-
CE, BV, ISO
-
Color:
-
As Client Request
-
Type:
-
Circular
-
Delivery Time:
-
15-30 Working Days
-
Voltage:
-
As Per Order
-
Screen Size:
-
300*500mm-1000*1500mm
-
Drum Length:
-
600-2400mm
-
Water Flowrate:
-
80-250m3/h
Quick Details
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Water Master
-
Material:
-
Plywood case, SS304/316
-
Weight:
-
500-1000kg
-
Size:
-
Varies with model
-
Power:
-
0.55-1.5kw
-
Productivity:
-
Varies with model
-
Weight (KG):
-
500 kg
-
Application:
-
Wastewater Tertment
-
Certification:
-
CE, BV, ISO
-
Color:
-
As Client Request
-
Type:
-
Circular
-
Delivery Time:
-
15-30 Working Days
-
Voltage:
-
As Per Order
-
Screen Size:
-
300*500mm-1000*1500mm
-
Drum Length:
-
600-2400mm
-
Water Flowrate:
-
80-250m3/h
Products Description

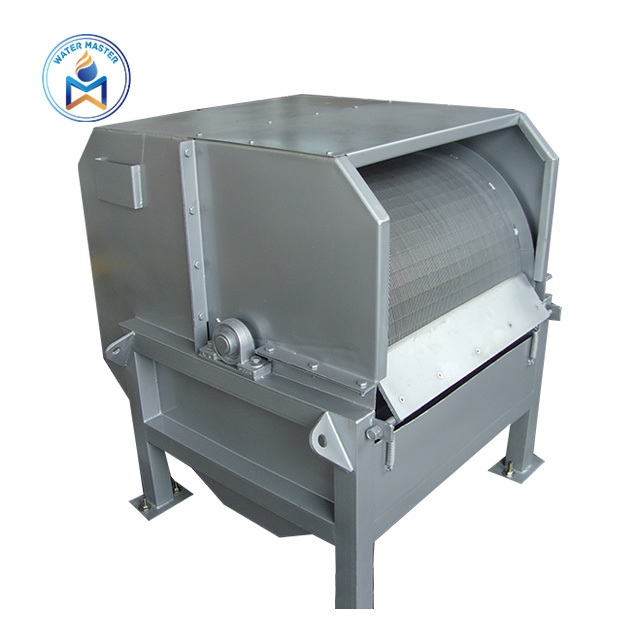

Drum Filter Screen （External Feed）
The Drum Filter (External Feed) is composed of a case made up of stainless steel plate and section bars. The stainless steel filter, whose surface is made up of a stainless steel "v" profile wedge wire type winded up as a spiral, rotates inside the case.The distance between each coil is the same as the desired filtering slot.
Product Paramenters（EXTERNAL)
|
Model
|
Screen Size
|
Power
|
Material
|
Backwash water
|
|
Dimension(mm)
|
|
|
|
|
|
|
Flow m3/h
|
Pressure MPa
|
|
|
|
WMWLW-400
|
φ400*600mm
Space:0.15-5mm |
0.55KW
|
SS304
|
2.5-3
|
≥0.4
|
860*800*1300
|
|
|
WMWLW-500
|
φ500*750mm
Space:0.15-5mm |
0.75KW
|
SS304
|
2.5-3
|
≥0.4
|
1050*900*1500
|
|
|
WMWLW-600
|
φ600*900mm
Space:0.15-5mm |
0.75KW
|
SS304
|
3.5-4
|
≥0.4
|
1160*1000*1500
|
|
|
WMWLW-700
|
φ700*1000mm
Space:0.15-5mm |
0.75KW
|
SS304
|
3.5-4
|
≥0.4
|
1260*1100*1600
|
|
|
WMWLW-800
|
φ800*1200mm
Space:0.15-5mm |
1.1KW
|
SS304
|
4.5-5
|
≥0.4
|
1460*1200*1700
|
|
|
WMWLW-900
|
φ900*1350mm
Space:0.15-5mm |
1.5KW
|
SS304
|
4.5-5
|
≥0.4
|
1600*1300*1800
|
|
|
WMWLW-1000
|
φ1000*1500mm
Space:0.15-5mm |
1.5KW
|
SS304
|
4.5-5
|
≥0.4
|
1760*1400*1800
|
|
|
WMWLW-1200
|
φ1200*1800mm Space:0.15-5mm
|
|
SS304
|
|
≥0.4
|
2200*1600*2000
|
|
Drum Filter Screen （Internal Feed）
Drum Filter(Internal Feed)，which is also called drum screen，is suitable for the solid-liquid separation of industrial wastewater and domestic sewage. It can remove the waste solid whose size is more than 0.2mm.The effluent enters the inside of rotary drum through the feed inlet and then passing over the distribution weir on to the drum surface.The particles and water separate as the drum rotates with the solids staying on the screen and passing down the space of the drum .
Products Paramenters（INTERNAL)
|
Model
|
Screen Size
|
Dimensions
|
Power
|
Material
|
Removal rate
|
|
|
|
|
|
|
|
|
Solid size
|
Solid size
|
|
|
WMLN-400
|
φ400*1000mm Space:0.15-5mm
|
1800*600*1300mm
|
0.55KW
|
SS304
|
95%
|
55%
|
|
|
WMLN-500
|
φ500*1000mm Space:0.15-5mm
|
2200*700*1300mm
|
0.75KW
|
SS304
|
95%
|
55%
|
|
|
WMLN-600
|
φ600*1200mm Space:0.15-5mm
|
2400*700*1400mm
|
0.75KW
|
SS304
|
95%
|
55%
|
|
|
WMLN-700
|
φ700*1500mm Space:0.15-5mm
|
2700*900*1500mm
|
0.75KW
|
SS304
|
95%
|
55%
|
|
|
WMLN-800
|
φ800*1600mm Space:0.15-5mm
|
2800*1000*1500mm
|
1.1KW
|
SS304
|
95%
|
55%
|
|
|
WMLN-900
|
φ900*1800mm Space:0.15-5mm
|
3000*1100*1600mm
|
1.5KW
|
SS304
|
95%
|
55%
|
|
|
WMLN-1000
|
φ1000*2000mm Space:0.15-5mm
|
3200*1200*1600mm
|
1.5KW
|
SS304
|
95%
|
55%
|
|
|
WMWLN-1200
|
φ1200*2800mm Space:0.15-5mm
|
4000*1500*1800mm
|
1.5KW
|
SS304
|
95%
|
55%
|
|
|
WMWLN-1500
|
φ1500*3000mm Space:0.15-5mm
|
4500*1800*1800mm
|
2.2KW
|
SS304
|
95%
|
55%
|
|
Application
Features
1. Simple structure, high reliability;
2.Compact structure, small covering area;
3.The surface of the drum is made of wedge grid, and has excellent hydraulic characteristics.
