Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
BIGM/SECO
-
Model Number:
-
XB5-AD33
-
Certification:
-
ce
Quick Details
-
Protection Level:
-
IP66
-
Max. Current:
-
10A
-
Max. Voltage:
-
240V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
BIGM/SECO
-
Model Number:
-
XB5-AD33
-
Certification:
-
ce

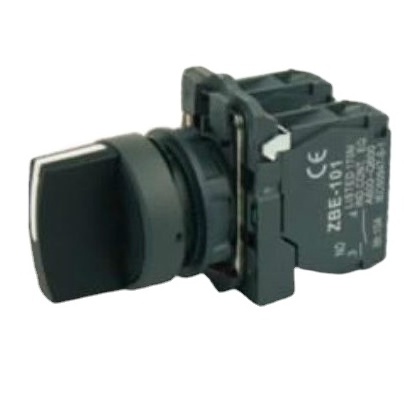

XB2.XB4.XB5 plastic series button is used in the industrial control circuit of AC 50HZ or 60HZ, rated working voltage up to 660V and DC operating voltage up to 440V, and used as the control of magnetic starters, touch switches, relays and other electrical circuits. , with indicator light button also applies to the light signal indicating place.
The button consists of a contact module, a base frame, and a button head. These three components are connected by an internationally accepted fastener-free self-locking connection, which is safe, reliable, easy to disassemble and install (one can operate), and has a long life.
The button contact module adopts a modular structure, and the contact height is reliable and maintenance is simple (only one screwdriver can be used to replace all the components on the back of the panel). The contact adopts a silver-copper composite material and the current is up to 10A.
product description
1, the installation hole for all buttons of this series is φ22MM
2. All metal contacts have the heaviest effect of switching circuit and self-cleaning, and can still guarantee the reliability of contact contact in the use of low voltage and small current {5v, 5mv}.
3, normally open and normally closed contact with each other, can be combined when needed. Easy to replace.
4, Widely used in industrial control circuit of AC 50Hz, rated working voltage 0-380v and DC operating voltage 0-220v.
5, as a magnetic starter, contactors, relays and other electrical circuit control.
-----------------------------------------------------------------------------------------------------------
Standard operating environment: Ambient temperature: -25 to +55 (without freezing) Operating humidity: 45 to 85% RH (without condensation)
Contact resistance: ≤50mΩ
Insulation Resistance: ≥100mΩ
Maximum withstand voltage: 3000 V, AC 50 Hz
Vibration resistance: 50 Hz, amplitude about 1mm
Impact resistance: more than 10m/s2 (about 10G)
Life: Machinery (1 million) Electrical (over 30,000 times)
