Quick Details
-
Rated Lifting Moment:
-
Different
-
Max. Lifting Height:
-
10m
-
Span:
-
8.45m
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Sui Zhong
-
Product name:
-

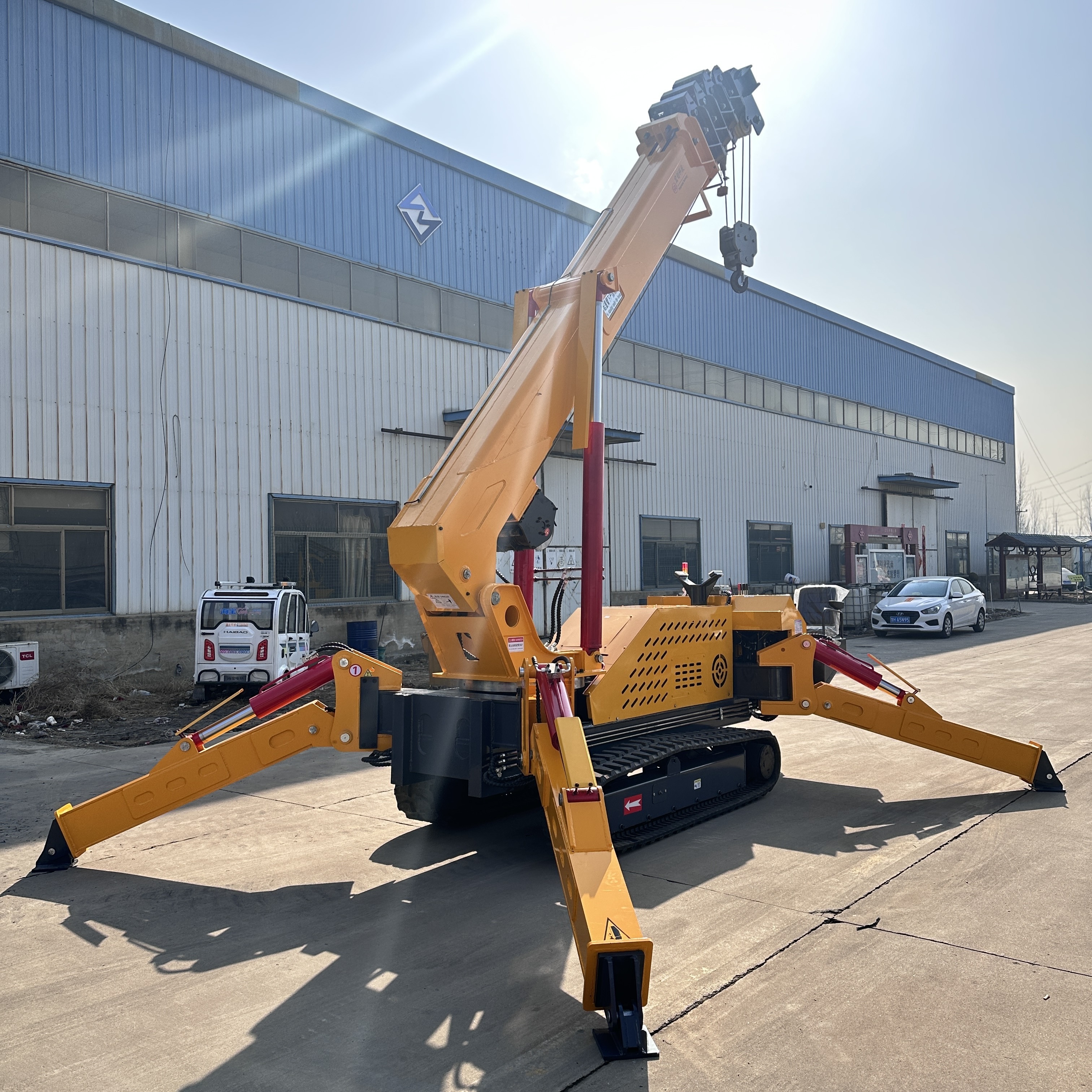

Spider Crawler Crane
-
Way of walking:
-
Hydraulic walking
-
Ground pressure:
-
37kpa
-
Brand:
-
OEM Service
-
Control system:
-
Remote Control
-
Application:
-
Narrow Space
-
UNIQUE SELLING POINT:
-
Environmental, Long lifetime,Energy-saving
-
Hydraulic oil tank volume:
-
30L
-
Winch:
-
Wire rope
-
Lifting speed of hook:
-
3.6m/min(4 times)
Quick Details
-
Weight (KG):
-
2500
-
Marketing Type:
-
New Product
-
Rated Loading Capacity:
-
1.5-12 ton
-
Rated Lifting Moment:
-
Different
-
Max. Lifting Height:
-
10m
-
Span:
-
8.45m
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Sui Zhong
-
Product name:
-
Spider Crawler Crane
-
Way of walking:
-
Hydraulic walking
-
Ground pressure:
-
37kpa
-
Brand:
-
OEM Service
-
Control system:
-
Remote Control
-
Application:
-
Narrow Space
-
UNIQUE SELLING POINT:
-
Environmental, Long lifetime,Energy-saving
-
Hydraulic oil tank volume:
-
30L
-
Winch:
-
Wire rope
-
Lifting speed of hook:
-
3.6m/min(4 times)
|
Maximum working radius
|
|
16m × 0.2t _
|
|
|
Maximum ground lift
|
|
17mX 0.9t _ _
|
|
|
winch
|
Hook up speed
|
0- 10 m/min
|
|
|
|
Wire Rope Specifications
|
Φ10mm × 120m _ _
|
|
|
Telescopic device
|
Boom form
|
5 -stage boom
|
|
|
|
Boom length
|
4.5m-16m
|
|
|
undulating device
|
Boom angle/time
|
0-7 5 °/13sec
|
|
|
gyratory device
|
Rotation angle/speed
|
0-360° (continuous)/60sec
|
|
|
outrigger
|
Outrigger Action Form
|
Hydraulic automatic support + manual unscrewing
|
|
|
|
Maximum extension (mm)
|
6300 (L) X 4600 (Rear) 、 (Front)
|
|
|
walking device
|
way of walking
|
Hydraulic motor drive, two-speed ( rubber track )
|
|
|
|
Walking speed
|
0-5.5 km /h
|
|
|
|
Gradeability
|
20° (36%)
|
|
|
motor
|
Voltage
|
AC380V
|
|
|
engine
|
Producer
|
Yunnei
|
|
|
|
Type/displacement
|
YN27GBZ/2.7L
|
|
|
|
Start method
|
Electric start
|
|
|
|
Startup performance
|
-5°C~40°C
|
|
|
|
fuel/volume
|
Diesel / 45 L
|
|
|
|
battery capacity
|
24v 45AH
|
|
|
|
Fuel consumption
|
230 g/kW-h
|
|
|
|
noise level
|
Rated speed≤81.5dBA (1m)
|
|
|
operating system
|
Type of operation (jib/outrigger), manual travel
|
Manual operation, manual walking + remote control (optional)
|
|
|
The standard configuration
|
Diesel engine and electric motor (dual power)
|
|
|
|
Vehicle size
|
Length 4950*width 1560*height 2235
|
|
|
|
Craftsmanship
|
Paint assembly process
|
|
|
