Quick Details
-
Voltage:
-
220V/110V
-
Power:
-
50W
-
Weight (KG):
-
45
-
Name:
-
COLO Electrostatic Powder Coating Machines
-
Application:
-
Metal Surface Finishing
-
Coating material:
-
plastic/metal powders
-
Spraying Gun:
-
100kv voltage adjustable
-
Structure:
-
Compact and easy to move
-
Operation:
-
Manual Powder Coating Machine
-
Control mode:
-
Digital
-
Wearing Parts:
-
Nozzles, sleeves
-
Coating Technology:
-
Electrostatic Coating
-
Model:
-
COLO-800D
Quick Details
-
Machine Type:
-
Manual, Coating Equipment, powder coating machine, powder coating gun
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
HICOLO
-
Voltage:
-
220V/110V
-
Power:
-
50W
-
Weight (KG):
-
45
-
Name:
-
COLO Electrostatic Powder Coating Machines
-
Application:
-
Metal Surface Finishing
-
Coating material:
-
plastic/metal powders
-
Spraying Gun:
-
100kv voltage adjustable
-
Structure:
-
Compact and easy to move
-
Operation:
-
Manual Powder Coating Machine
-
Control mode:
-
Digital
-
Wearing Parts:
-
Nozzles, sleeves
-
Coating Technology:
-
Electrostatic Coating
-
Model:
-
COLO-800D
Product Description

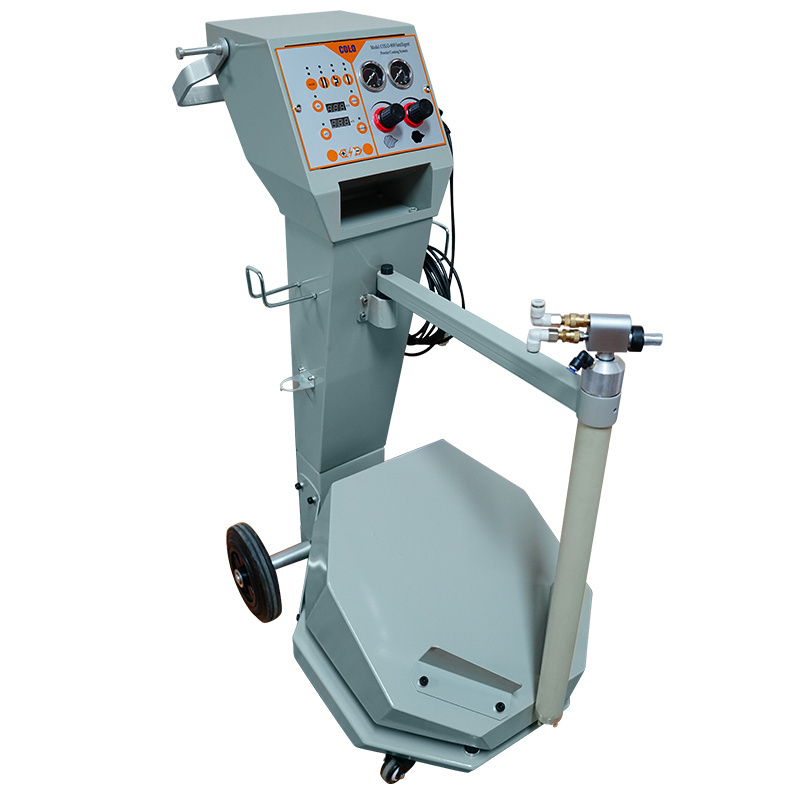

COLO-800D powder coating gun machine
The COLO-800D series powder coating system with proved performance specially balanced for the maximum spray capability with the smoothest finish possible
COLO-800D-V Box Feed Powder Coating System is an excellent model for users who has multi colors that requires to be changed frequently in powder coating process. It is designed to place original powder carton on the inclined vibration table, allowing complete emptying of the powder box by fluidized suction tube.
Details Images
COLO-800D Powder Coating System Controller
1. 0-100kv voltage adjustable. Easily set values and read on digital display, which is powerful enough to handle any shape of parts.
2. For beginners we offer one-touch intelligent operation buttons that stands for three pre-sets application programs:
Flat coating: ideal for flat shape workpieces. Corner coating: ideal for complex shape parts with deep corners. Recoating: ideal for repairing coating.
2. For beginners we offer one-touch intelligent operation buttons that stands for three pre-sets application programs:
Flat coating: ideal for flat shape workpieces. Corner coating: ideal for complex shape parts with deep corners. Recoating: ideal for repairing coating.
COLO-08 Electrostatic Spray Gun Features
100 kV powder spray gun maximizes powder charging capacity, and always maintains highest transfer efficiency even after long time use, most powders are attracted to the metal parts with least material waste.
The lightweight and ergonomic design enables you to do jobs at ease.
Comes with full array of nozzle assortment for optimal effect , including flat nozzles, round nozzles with a series of deflectors, as well as extension nozzles for better penetration of corners.
The lightweight and ergonomic design enables you to do jobs at ease.
Comes with full array of nozzle assortment for optimal effect , including flat nozzles, round nozzles with a series of deflectors, as well as extension nozzles for better penetration of corners.
COLO-800D Powder Coating System Components
1. COLO-800D Digital Intelligent Controller
2. COLO-08 Light weight manual powder gun with 5m cable
3. 100kv cascade for long lasting work with high transfer efficiency
4. Nozzle assortment, including fan spray nozzles, and round nozzles with deflectors
5. COLO self-designed powder injectors for smooth and uniform output
6. Flexible trolley with wheels, allows to move everywhere
7. Suction tube with fluidizing section
8. Grounded powder hose 5 meters, anti-static material
9. Oil-water separating filter
10. Other connection tubes and installation kits.
2. COLO-08 Light weight manual powder gun with 5m cable
3. 100kv cascade for long lasting work with high transfer efficiency
4. Nozzle assortment, including fan spray nozzles, and round nozzles with deflectors
5. COLO self-designed powder injectors for smooth and uniform output
6. Flexible trolley with wheels, allows to move everywhere
7. Suction tube with fluidizing section
8. Grounded powder hose 5 meters, anti-static material
9. Oil-water separating filter
10. Other connection tubes and installation kits.
Manufacturing Technique
|
Model
|
COLO-800D
|
|
Mains input voltage
|
100-240 VAC
|
|
Operating frequency
|
50-60 Hz
|
|
Input power
|
50W
|
|
Nominal output voltage (to the gun)
|
max. 12 V
|
|
Nominal output current (to the gun)
|
max. 1 A
|
|
Ambient temperature range
|
0°C - +40°C (+32°F - +104°F)
|
|
Max. operating temperature
|
85°C (+185°F)
|
|
Approvals
|
CE
|
|
Compressed air connection
|
1/4" male quick release
|
|
Max. input pressure
|
10 bar / 145 psi
|
|
Min. input pressure (while unit in operation)
|
6 bar / 87 psi
|
|
Max. water vapor content of the compressed
|
air 1.3 g/m³
|
|
Max. oil vapor content of the compressed air
|
0.1 mg/m³
|
