Quick Details
-
Warranty:
-
1 Year
-
Brand Name:
-
CYKY
-
Model Number:
-
CY-802
-
Place of Origin:
-
Henan, China
-
Cable Length:
-
1.5 m
-
Outlet Size:
-
1/4 inches
-
Power:
-
500 W
-
Product name:
-
Vacuum pump
-
Keywords:
-
Pump
-
Displacement speed:
-
8 m3/h
-
Intake and exhaust DN (mm):
-
KF25
-
Motor speed (rpm):
-
50Hz/60Hz
-
Ambient temperature (°C):
-
5 - 40
-
Power supply:
-
Single /Three Phase
-
Power rating (kW):
-
0.4/0.37
-
Noise level (dB):
-
≤56
-
Net weight (kg):
-
21
Quick Details
-
Application:
-
Automotive Industry, HVAC OEM
-
Pressure:
-
Low Pressure
-
Voltage:
-
220 V
-
Warranty:
-
1 Year
-
Brand Name:
-
CYKY
-
Model Number:
-
CY-802
-
Place of Origin:
-
Henan, China
-
Cable Length:
-
1.5 m
-
Outlet Size:
-
1/4 inches
-
Power:
-
500 W
-
Product name:
-
Vacuum pump
-
Keywords:
-
Pump
-
Displacement speed:
-
8 m3/h
-
Intake and exhaust DN (mm):
-
KF25
-
Motor speed (rpm):
-
50Hz/60Hz
-
Ambient temperature (°C):
-
5 - 40
-
Power supply:
-
Single /Three Phase
-
Power rating (kW):
-
0.4/0.37
-
Noise level (dB):
-
≤56
-
Net weight (kg):
-
21

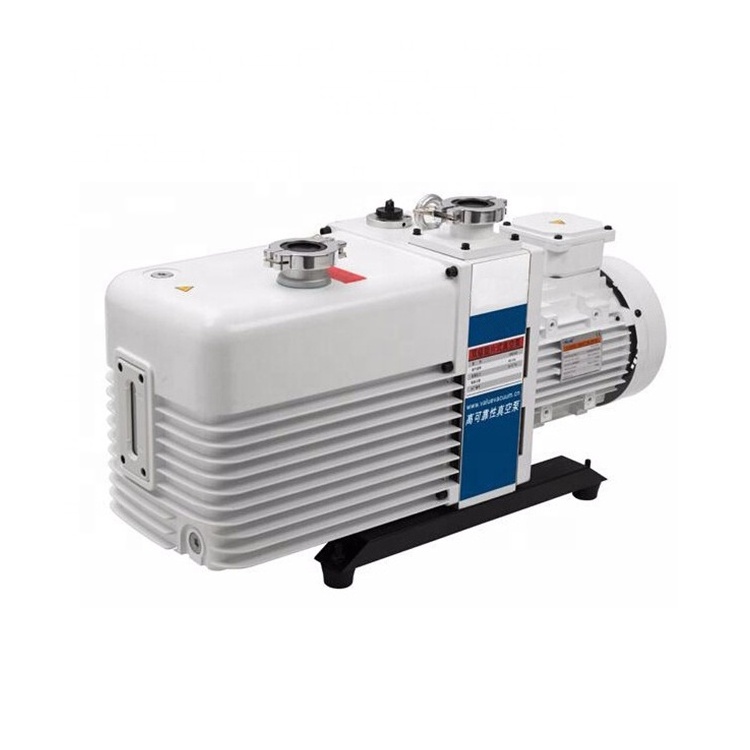

Corrosion-resistant electric mini Vacuum pump for CVD experiment/dental furnace sintering
Features:
- Special material adopted for excellent corrosion resistance.
- Two-Shift adjustable gas ballast valve satisfies different requirements of condensable vapor (such as water vapor) to be exhausted out of pump in different processes.
- Dual protection of oil anti-suck back ensures vacuum system from oil pollution when pump stops running and needs to be easily restarted.
- Forced oil circulation system consisted of oil pump and constant pressure oil supply mechanism ensures stable running of the pump.
- Less components are used, easy to maintain and repair.
Picture as following:
Technical Parameters:
|
Model |
CY -D8 |
CY -D12 |
CY -D30 |
CY -S100 |
CY -S300 |
|
|
Displacement speed m 3 /h |
8 |
16 |
30 |
100 |
300 |
|
|
Ultimate partial pressure gas ballast closed (Pa) |
5x10 -3 |
4x10 -3 |
4x10 -3 |
0.1 |
8x10 -2 |
|
|
Ultimate total pressure gas ballast closed (Pa) |
3X10 -2 |
/ |
/ |
5x10 -1 |
5x10 -1 |
|
|
Ultimate total pressure gas ballast open (Pa) |
/ |
8x10 -3 |
8x10 -3 |
1.5 |
1.5 |
|
|
Power supply |
Single
/Three
|
Single
/Three
|
Single
/Three
|
Three Phase |
Three Phase |
|
|
Power rating (kW) |
0.4/0.37 |
0.75/0.55 |
1.1 |
2.2 |
5.5 |
|
|
Intake and exhaust DN (mm) |
KF25 |
KF25 |
KF25/40 |
KF40 |
KF40 |
|
|
Oil capacity (L) |
0.6~1.0 |
0.9~1.5 |
1.3~2.0 |
3.3~4.5 |
3.3~4.5 |
|
|
Motor speed (rpm) |
50Hz |
1440 |
1440 |
1440 |
1440 |
1440 |
|
60Hz |
1720 |
1720 |
1720 |
1720 |
1720 |
|
|
Ambient temperature ( °C ) |
5 - 40 |
5 - 40 |
5 - 40 |
5 - 40 |
5 - 40 |
|
|
Noise level (dB) |
≤56 |
≤58 |
≤58 |
≤62 |
≤71 |
|
|
Net weight (kg) |
21 |
30 |
43 |
72 |
205 |
|
Contact Information:
1.Equipment warranty period: 12 months after acceptance.During the warranty period, the equipment fails due to quality defects, we provide maintenance services;
2.Provide free technical guidance installation and equipment commissioning services;
3.Provide vulnerable parts and related consumables at a lifetime price, and assist users in equipment maintenance and replacement of spare parts;
4.We can train technical operators for users, free of training fees,food,accommodation, transportation costs themselves;
5.We can provide users with the use of related equipment in different occasions and technical guidance.
