Quick Details
-
Brand Name:
-
PACKEVER
-
Product name:
-
Pixel RGB LED controller K-1000C
-
Input Voltage:
-
DC5V-DC24V
-
Max Pixels quantity:
-
2048
-
Output port quantity:
-
1
-
Net weight:
-
0.35kgs
-
Size:
-
159*89*24mm
-
Software:
-
2016 LedEdit-K V3.26 or later edition
-
Voltage:
-
DC5V/7.5-24V
-
MOQ:
-
1
-
IC supported:
-
ws2811/ws2812/sk6812/sk9822/lpd8806...
Quick Details
-
Warranty(Year):
-
2-Year
-
Type:
-
digital SD card led controller
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
PACKEVER
-
Product name:
-
Pixel RGB LED controller K-1000C
-
Input Voltage:
-
DC5V-DC24V
-
Max Pixels quantity:
-
2048
-
Output port quantity:
-
1
-
Net weight:
-
0.35kgs
-
Size:
-
159*89*24mm
-
Software:
-
2016 LedEdit-K V3.26 or later edition
-
Voltage:
-
DC5V/7.5-24V
-
MOQ:
-
1
-
IC supported:
-
ws2811/ws2812/sk6812/sk9822/lpd8806...

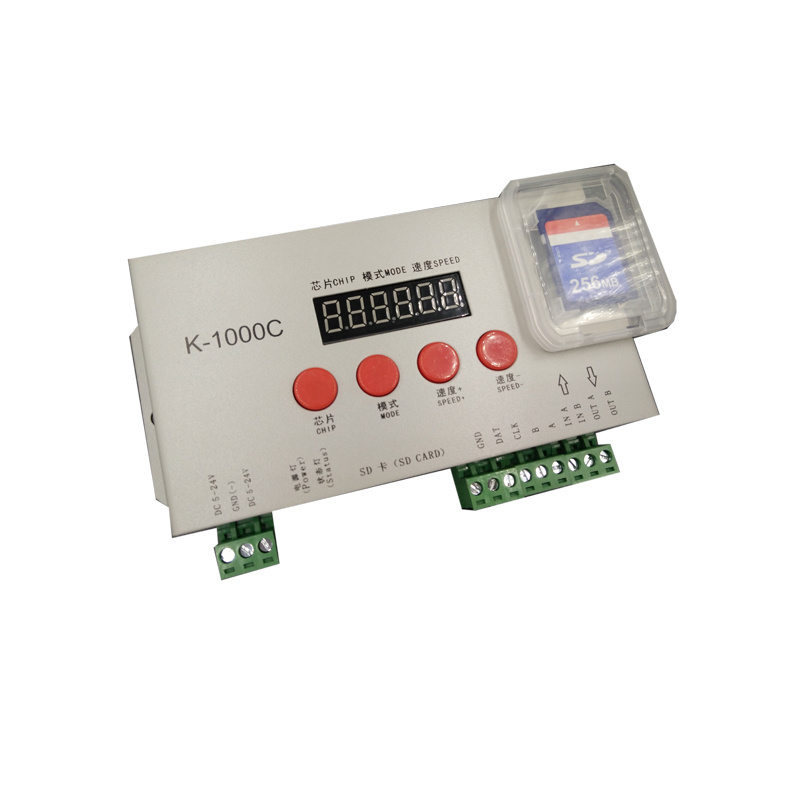

Digital Pixel RGB LED controller K-1000C
This K-1000C controller is for IC controlled digital led strip or led pixel products.
One port output, Max 2048 pixels supported.
SD card type controller, use software to make programms first, copy the programms into SD card.
If the lamp quantity is more than 2048, one K-1000C controller can connect to another K-1000C controller(s)...
1,32 to 65536 degree Gray control, Gamma correction procession handle.
2,Support various point, line light source, and all kinds of rules and specific shaped handle.
3. The controller has one output port, can support up to 512/2048 pixels(DMX lighting support up to 512 pixels).
5,The controller can single set use,also multiple controllers cascade, cascade optical isolation mode: interference, better stability, cascade distance between two controllers can reach up to 150 meters, need to use 0.5M²pure copper power cord.
6,The controller support chip can lock the support IC in software, or not lock the support IC in the software, select the support IC through the controller CHIP button, this scheme is more flexible and convenient.
7,For the DMX lighting IC, the controller comes with write address function; In addition, with use of our 2016 LedEdit-K V3.26 or later edition can make one key write address function setting.
8, Support load lamp is 4 channels (RGBW) pixels, or split into single channel point pixels.
9 ,Enhanced 485 TTL and 485 differential (DMX) signal output.
00: UCS1903,1909,1912,2903,2904 ,2909,2912;TM1803,1804,1809,1812;
SM16703 ,16709,16712;WS2811,WS2812,WS2813,WS2815,WS2818;
INK1003 ;LX3203,1603,1103;GS8205,8206;SK6812 (max. Supports lights 2048
pixels )
01 :SM16716,16726 (support up to 2048 pixels)
02 :P9813 (support up to 2048 pixels)
03 :LPD6803 (support up to 2048 pixels)
04 :LX1003,1203 (support up to 2048 pixels)
05 :WS2801 (support up to 2048 pixels)
06 :LPD1886 (support up to 2048 pixels)
07 :TM1913 (support up to 2048 pixels)
08 :TM1914 (support up to 2048 pixels)
09 :P9883,P9823 (support up to 2048 pixels)
10 :DMX (support up to 512 pixels, suggest to support ≤320 pixels)
11 :DMX 500K (support up to 512 pixels, suggest to support ≤320 pixels)
12 :DMX 250K-CZF (support up to 512 pixels, suggest to support ≤320 pixels)
13 :DMX 250K-CZF (support up to 512 pixels, suggest to support ≤320 pixels)
Specific parameters
Memory Card:
Type : SD Card
Capacity : 128MB —32GB
File Format : FAT file format
Store files : *.led
Note :
To copy files to SD card, you must first format to the SD card, pay attention to is that each copy must be formatted before. SD card must be formatted as "FAT" format.
