Quick Details
-
Application:
-
Office Building
-
Design Style:
-
Industrial
-
Place of Origin:
-
Beijing, China
-
Brand Name:
-
Ihurmo
-
Model Number:
-
ZLP500 ZLP630 ZLP800 ZLP1000
-
Product name:
-
suspended platform & construction cradle ZLP500 ZLP600 ZLP800 ZLP1000
-
Rated load(kg):
-
630
-
Lifting speed (m/min):
-
8-10
-
Platform dimensions (mm):
-
6000(1+2+3m)*720 *1300
-
Lifting height(m):
-
100
-
Cable(m):
-
100
-
Steel rope(mm):
-
8.3
-
Hoist Power(kW):
-
1.5*2
-
Hoist Voltage(V):
-
220,380,415,440
-
Counterweight (kg):
-
1000
Quick Details
-
Warranty:
-
1 Year
-
After-sale Service:
-
Online technical support, Onsite Installation, Onsite Training, Onsite Inspection, Return and Replacement, Other
-
Project Solution Capability:
-
total solution for projects, Others
-
Application:
-
Office Building
-
Design Style:
-
Industrial
-
Place of Origin:
-
Beijing, China
-
Brand Name:
-
Ihurmo
-
Model Number:
-
ZLP500 ZLP630 ZLP800 ZLP1000
-
Product name:
-
suspended platform & construction cradle ZLP500 ZLP600 ZLP800 ZLP1000
-
Rated load(kg):
-
630
-
Lifting speed (m/min):
-
8-10
-
Platform dimensions (mm):
-
6000(1+2+3m)*720 *1300
-
Lifting height(m):
-
100
-
Cable(m):
-
100
-
Steel rope(mm):
-
8.3
-
Hoist Power(kW):
-
1.5*2
-
Hoist Voltage(V):
-
220,380,415,440
-
Counterweight (kg):
-
1000
Product Description

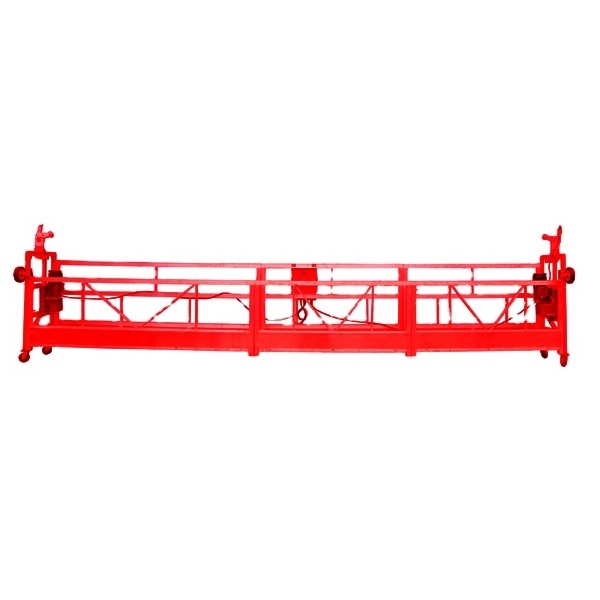

The ZLP series suspended access platform is motor driven climbing machinery mainly used for the exterior wall construction,decoration and renovation of high-rise buildings and multi-storey buildings. More specifically, cement coating, wainscoting,curtain wall installing, painting, varnishing, cleaning, maintenance, and other tasks can all be completed. This suspende platform is also suitable for other engineering work on large tanks, bridges, and dams.
The suspended access platform alone is capable of accomplishing construction tasks without the help of scaffolds. Thereby the construction cost is greatly reduced and the efficiency is improved. In addition, this suspended access equipment features reliable performance as well as easy operation and displacement.
The suspended access platform alone is capable of accomplishing construction tasks without the help of scaffolds. Thereby the construction cost is greatly reduced and the efficiency is improved. In addition, this suspended access equipment features reliable performance as well as easy operation and displacement.
Specification
|
Model
|
|
|
ZLP500
|
ZLP630
|
ZLP800
|
ZLP1000
|
||
|
Rated load(kg)
|
|
|
500
|
630
|
800
|
1000
|
||
|
Lifting speed (m/min)
|
|
|
8-10
|
8-10
|
8-10
|
8-10
|
||
|
Platform dimensions (mm)
|
|
|
5000(2+3m)×720
×1300 |
6000(1+2+3m)×720
×1300 |
7500(2.5m*3)×720
×1300 |
7500(3*2.5)×720
×1300 |
||
|
Lifting height(m)
|
|
|
100
|
100
|
100
|
100
|
||
|
Cable(m)
|
|
|
100
|
100
|
100
|
100
|
||
|
Steel rope(mm)
|
|
|
Φ8.3
|
Φ8.3
|
Φ9.1
|
Φ8.6
|
||
|
Hoist
|
Power(kW)
|
|
1.5*2
|
1.5*2
|
1.8*2
|
2.2*2
|
||
|
|
Voltage(V)
|
|
220,380,415,440
|
220,380,415,440
|
220,380,415,440
|
220,380,415,440
|
||
|
Safety lock
|
Allowable impulsive force(kN)
|
|
30
|
30
|
30
|
30
|
||
|
|
Cable locking angle
|
|
3°~8°
|
3°~8°
|
3°~8°
|
3°~8°
|
||
|
Suspension mechanism
|
Front beam overhang (m)
|
|
1.3~.1.5
|
1.3~1.5
|
1.3~1.5
|
1.3~.1.5
|
||
|
|
Adjustable height (m)
|
|
1.44~2.14
|
1.44~2.14
|
1.44~2.14
|
1.44~2.14
|
||
|
Counterweight (kg)
|
|
|
800
|
1000
|
1000
|
1200
|
||
|
20ft container (set)
|
|
|
10
|
9
|
8
|
8
|
||
