Quick Details
-
Panel Size:
-
320*160mm
-
Place of Origin:
-
Fujian, China
-
Model Number:
-
P10
-
Usage:
-
OUTDOOR
-
Tube Chip Color:
-
FULL COLOR
-
Pixels:
-
10mm
-
module size:
-
320x160x25mm
-
scan mode:
-
1/4 scan
-
lamp:
-
epistar,sanan
-
name:
-
outdoor P10 led display board moving letters led message sign
-
chip:
-
SM
-
one square meter:
-
about 20pcs led module
Quick Details
-
Application:
-
outdoor, Outdoor LED Screen
-
Brand Name:
-
Huacai
-
Color:
-
full color
-
Panel Size:
-
320*160mm
-
Place of Origin:
-
Fujian, China
-
Model Number:
-
P10
-
Usage:
-
OUTDOOR
-
Tube Chip Color:
-
FULL COLOR
-
Pixels:
-
10mm
-
module size:
-
320x160x25mm
-
scan mode:
-
1/4 scan
-
lamp:
-
epistar,sanan
-
name:
-
outdoor P10 led display board moving letters led message sign
-
chip:
-
SM
-
one square meter:
-
about 20pcs led module

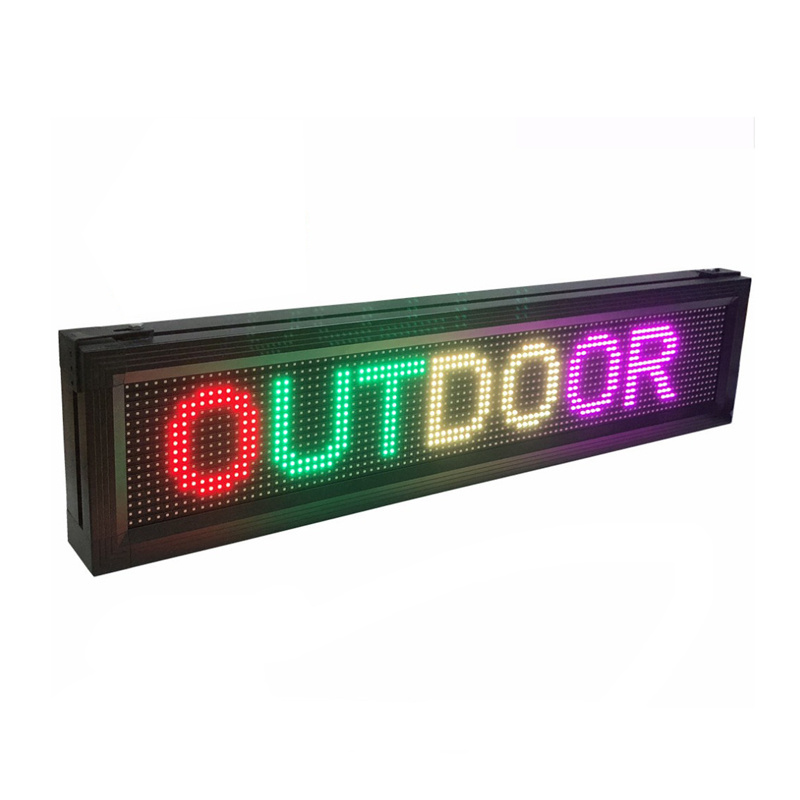

1.Product Image
PC or Remote control P10 led display ,sign Double color outdoor LED moving , full color led door sign
2. Product Specifications
Product Specifications
| LED tube chip parameters | ||||||
| Packaging | Color | Brand | Model | Brightness | Wave length | Quantity |
| 146 | R | Epistar | 9mil | 800-900 | 730-800 | 1 |
| G | Epistar | 8x10mil | 1000-1100 | 900-1000 | 1 | |
| B | Epistar | 8x10mil | 230-260 | 230-260 | 1 | |
| LED module parameters | |||
| Pixels pitch: | 10mm | Pixel density: | 10000dot/m2 |
| Pixel configuration: | 1R1G1B | Module pixels: | 32x16=512 dots |
| Module size: | 160X160 mm | Module weight: | 0.65KG |
| Configuration feature: | Integrated Light/Driver | Frame material: | Polycarbonate(PC) |
| Input voltage: | AC 4.8-5.5V | Max current: | 6.0A±0.1A |
| Module power consumption: | 30W | Driver mode: | 1/4 scan |
| LED cabinet parameters | |
| Standard cabinet size: | 960x960x95 mm |
| Cabinet pixel: | 96x96=9216dots |
| Cabinet square: | 0.9216m2 |
| Cabinet weight: | 45KG |
| Max power consumption: | 750W |
| Average power consumption: | 350W |
| LED display parameters | |||
| Brightness: | ≥6000cd/m2 | Brightness homogeneity: | ≥0.95 |
| Best horizontal view angle: | 100±8° | Best vertical view angle: | 70±5° |
| Best view distance: | ≥10m | Blind spot rate: | ≤0.0003 |
| Max power consumption: | 1000W/m2 | Application condition: | outdoor |
| System control parameters | |||
| Gray scale: | each R, G, B - 65536 | Color | 16777216 kinds |
| Repetition rate: | ≥60 frame/second | Refresh rate: | ≥1400Hz |
| Control method: |
PC control, video synchronization |
Brightness adjusting: | 256 auto/manual |
| Input signal: | DVI/VGA, RGBHV, S-VIDEO, HDTV and so on | ||
| System working features | |||
| Lifespan: | ≥100,000 hours | MTBF: | ≥10,000 hours |
| Attenuation rate: | ≤15% 3 years working | Out of control dots: | 0 |
| Discrete control dot: | 0 (before shipment) | Blind spot rate: | 0 (before shipment) |
| Working temperature: | -20 ~50 °C | Working humidity: | 10%~90%RH |
| Protection feature: |
over-heat, over-load, image complement, overcurrent, overvoltage, anti- thunder (optional) |
||
3.HOT SALE PRODUCT
HOT SALE PRODUCT
4.Company Info
5.EXIHIBITION
6.Receiving Clients
7.CERTIFICATION
8.Packing & Delivery
| Cabinet : |
Plywood standard package, 2pcs per wooden case or According to customer's Request; |
| Led Module: |
pcs/Carton; Cartons Size: 57*36.5*36cm use international standard packaging |
| Delivery: | 5 to 10 days or depends on the quantity. |
9.CONTACT US
10.FAQ
FAQ
|
Q:1.Where is your nearest Sea Port? A:Our nearest sea port is at Xiamen,Fujian Provice Q:2.What's your payment term? A: T/T,Western Union,Alibaba trade assurance Q: 3.What's the brand of your diode chip? A:Our led lamps are by Silan,Epistar,Cree ect. Q: 4.Could you alow a trial order? A:Yes.We are alowing to a trial order. This would enable you to see the high quality of our product and give you the opportunity to test it’s superiority. Q:5.what's the delivery time ? A:5-10 days after receving the payment. |
