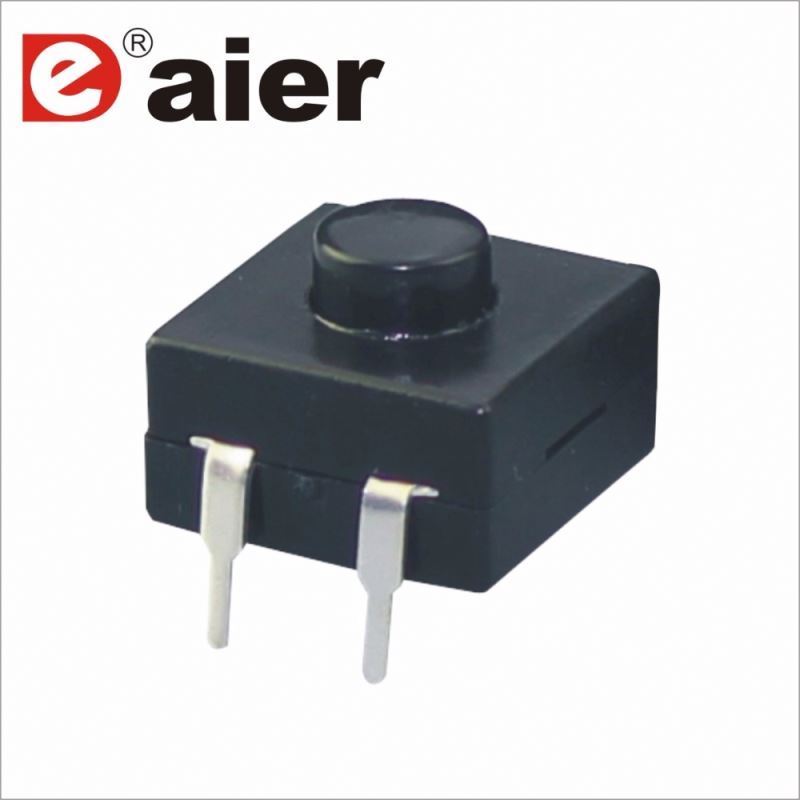

2pin Torch Switch Push Button Switch 12x12 ON OFF

2pin Torch Switch Push Button Switch 12x12 ON OFF

FOB Reference Price: Get Latest Price

≥500 Pieces

US $0.05

≥25000 Pieces

US $0.04

Free Inquiry

Customized Request

Explore More Products

European Standard Pc Frame 2 Gang 1 Way Light On Off Wall Switch Push Button

$ 4.1

White Electrical Uk Standard Light Control On Off Push Button Wall Switch Panel

$ 4.1

Indoor Decorative Electric On Off Button 1 Gang Plastic Injection Wall Switch

$ 4.1

Modern Luxury Home Decor Automatic Plastic On Off Round Wall Switch Button

$ 4.1

Eu Standard Grey Silver Flame Retardant Pc Panel Electronic On Off Switch Button

$ 4.1

Product Details

{{item.text}}

Quick Details

Place of Origin:: Zhejiang, China

Item:: 2pin Torch Switch Push Button Switch 12x12 ON OFF

Material:: Plastic

Function:: Latching Flashlight Button Switch

Button Size:: 5.4mm

Button Color:: Black

Terminal:: Solder Terminal

Certificate:: CE, Rohs, CQC

OEM&ODM:: YES

Package:: 500pcs/bag

Quick Details

Protection Level:: IP40

Max. Current:: 1A

Max. Voltage:: 250VAC/ 30VDC

Place of Origin:: Zhejiang, China

Item:: 2pin Torch Switch Push Button Switch 12x12 ON OFF

Material:: Plastic

Function:: Latching Flashlight Button Switch

Button Size:: 5.4mm

Button Color:: Black

Terminal:: Solder Terminal

Certificate:: CE, Rohs, CQC

OEM&ODM:: YES

Package:: 500pcs/bag

Product Description

Model	2pin Torch Switch Push Button Switch 12x12 ON OFF
Rating	1A 250VAC ; 1A 30VDC
Function	ON OFF Latching Plastic Flashlight Button Switch
Contact Resistance	≤100MΩ
Insulated Resistance	≥100MΩ
Operating Force	700±100gf
Electonical Life	≥ 20,000 Cycles

Product Show

PBS-07

Specifications:
1. Rating: 1A 250VAC ; 1A 30VDC
2. Function: Latching Plastic Flashlight Button Switch
3.Contact Resistance: ≤100MΩ
4. Insulation Resistance:≥100MΩ
5. Dielectric Strength: ≥ 1500VAC/1 min

6. Operating Force:700±100gf
7. Electrical Life: ≥20,000 Cycles

Push button switch is one of the most easy and quick to operate.

The Switches, buttons are more attractive in appearance and the material that are used illuminative its surface, labeled as graphic convenience, operating the switch lead to the user satisfaction, can also be used in SMART CAP system where one can input device products, this is definitely the best choice for designers
