Quick Details
-
Brand Name:
-
FUYU
-
Material:
-
Aluminum, Aluminum+stainless steel
-
Motor type:
-
Nema 23 stepper motor
-
Ball screw lead:
-
4mm/5mm/10mm
-
Horizontal load:
-
20-25kgs
-
Vertical load:
-
10-15kgs
-
Ball screw move speed:
-
40-255mm/s
-
Position accuracy:
-
0.03mm
-
Stroke range:
-
50-1000mm/s
-
Noise:
-
70dB
-
Movement life:
-
8000-10000km
Quick Details
-
Weight (KG):
-
3.3
-
Model Number:
-
FSK40
-
Place of Origin:
-
Sichuan, China
-
Brand Name:
-
FUYU
-
Material:
-
Aluminum, Aluminum+stainless steel
-
Motor type:
-
Nema 23 stepper motor
-
Ball screw lead:
-
4mm/5mm/10mm
-
Horizontal load:
-
20-25kgs
-
Vertical load:
-
10-15kgs
-
Ball screw move speed:
-
40-255mm/s
-
Position accuracy:
-
0.03mm
-
Stroke range:
-
50-1000mm/s
-
Noise:
-
70dB
-
Movement life:
-
8000-10000km

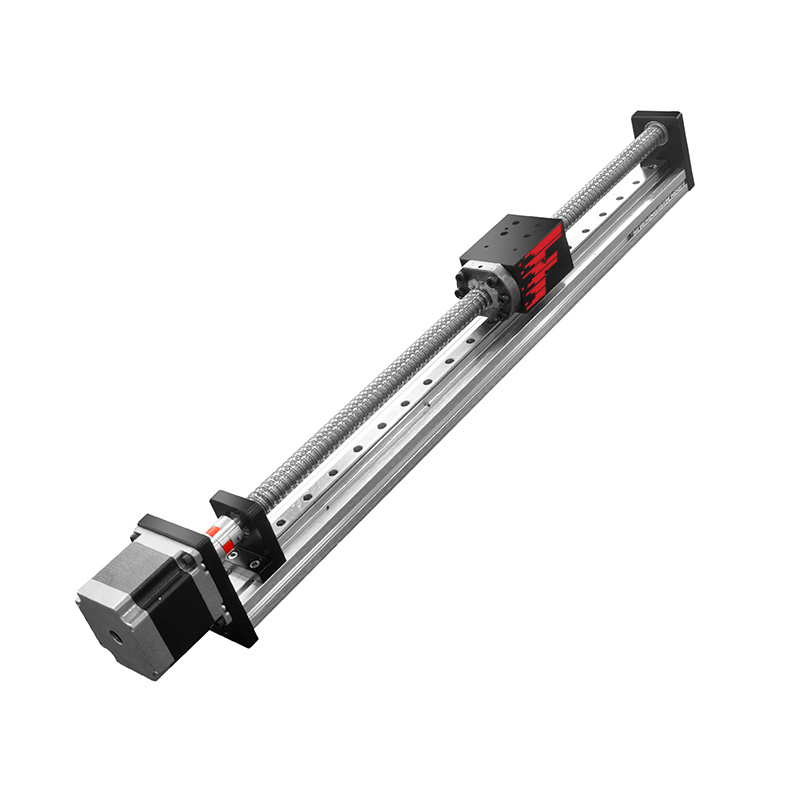

Ball screw linear motion guide
FSL40 linear guide is semi-sealer structure, body width 40mm, high stability,compact structure,versatility feature, suitable for normal working environment, it is convenient to use single axis or multi-axis to assemble easy functional usage robotic arms for kinds of industries.
Package
Linear Robot Arm
Applications: Precise positioning, dispensing, spray painting, visual inspection, moving, grabbing, cutting and welding, automatic assembly, automatic locking screws, palletizing, etc. Such as: PCB board detection, optical disc stacking device, parts pick and place.
