Quick Details
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
TESUNHO
-
Model Number:
-
TH-288
-
Dimensions:
-
127mm*60mm*35mm
-
Frequency Range:
-
LTE/WCDMA/GSM
-
Feature:
-
Group Call/Private Call/Friend Call
-
Weight:
-
181g
-
Working Temperature:
-
-30℃ to + 75℃
-
Working Voltage:
-
3.3V~4.2V (Standard 3.8V)
-
Working Current:
-
500mA@LTE 220mA@WCDMA
-
Peak Current:
-
2A
-
GPS Positioning:
-
1.57542GHz
Quick Details
-
Talk Range:
-
All Over The World
-
Terminal style:
-
Handheld
-
Storage Channel:
-
Group
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
TESUNHO
-
Model Number:
-
TH-288
-
Dimensions:
-
127mm*60mm*35mm
-
Frequency Range:
-
LTE/WCDMA/GSM
-
Feature:
-
Group Call/Private Call/Friend Call
-
Weight:
-
181g
-
Working Temperature:
-
-30℃ to + 75℃
-
Working Voltage:
-
3.3V~4.2V (Standard 3.8V)
-
Working Current:
-
500mA@LTE 220mA@WCDMA
-
Peak Current:
-
2A
-
GPS Positioning:
-
1.57542GHz
Different network will cause a bit difference on price.

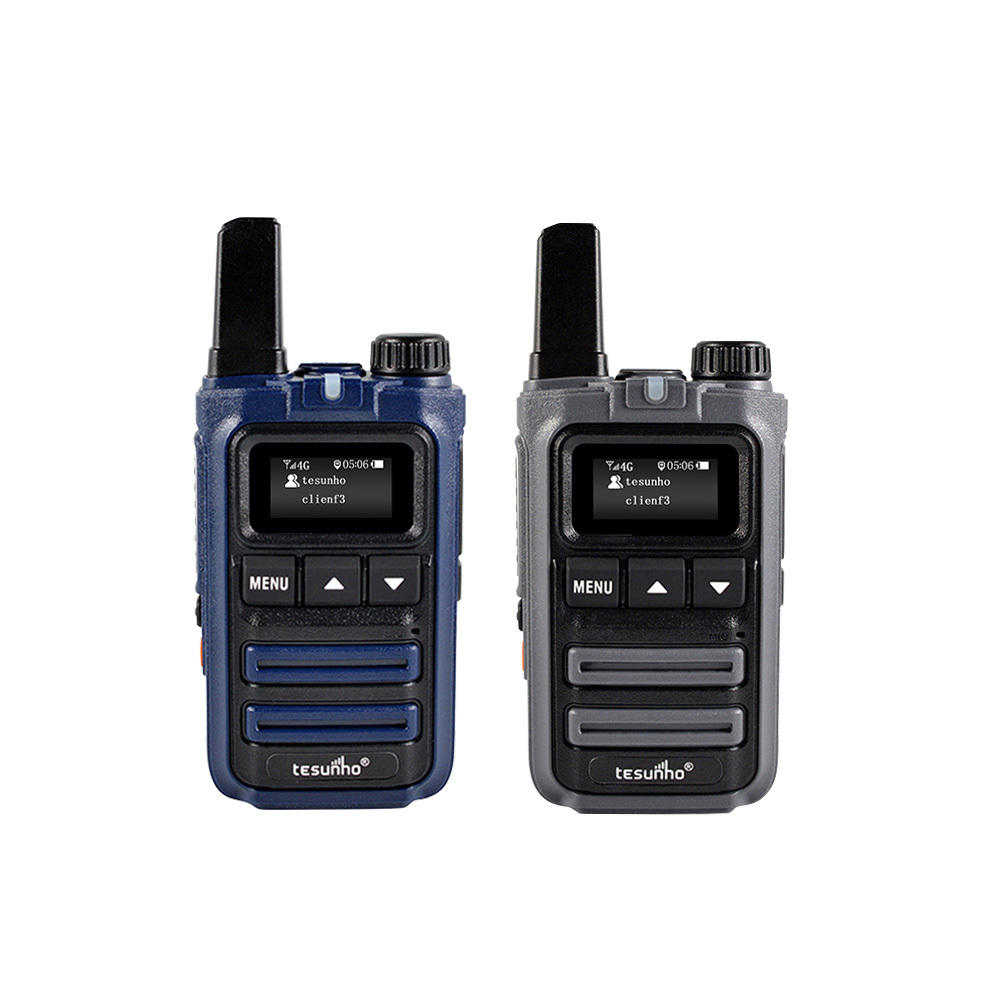

Tesunho TH-288 Long Range Wireless Transmitter And Receiver 5000KM Walkie Talkie Radio
Main Features:
TH-288 is a Mini Walkie Talkie with big battery capacity.
1. SOS
2. GPS Function
3. Large Capacity (3.6V 5000mAh)
4. Quick charger – 3 hours fully charged
5. Support 4G/3G/2G network
6. Support Group Call/Private Call/Friend Call
Application:
- Unique for:Security, Construction, Industry, Commercial use,Indoor Use.
- Popular for:Airport, Railway, Government, Rescue,Outdoor adventure, Logistics,Taxi,Truck, Camping, Travelling, Big shopping mall, Big Hotel, Outdoor Events, etc.
Main Function : GPS, SOS
Specifications:
|
Type |
Parameter Item |
Specification |
|
Mechanical Properties |
Model No. |
TH-288 |
|
Dimension |
35(H)×60 (W)×127(L)mm |
|
|
Weight |
181.g |
|
|
Working Temperature |
-30℃ to + 75℃ |
|
|
Basic Parameter |
Working Voltage |
3.3V~4.2V (Standard 3.8V) |
|
Working Current |
500mA@LTE 220mA@WCDMA |
|
|
Peak Current |
2A |
|
|
RF Parameter |
LTE FDD (E) |
Band1: 2100MHz Band3: 1800MHz Band7: 2600MHz Band8: 900MHz Band20: 800MHz |
|
WCDMA |
Band1 : 2100MHz Band8: 900MHz |
|
|
GSM |
GSM/GPRS : 900/1800 MHz |
|
|
Maximum Output power |
LTE:23 ± 2.7dBm(Power Class 3) WCDMA:24 + 1/-3dBm(Power Class 3) |
|
|
Receiving Sensitivity |
LTE FDD≤ -100dBm; WCDMA850: ≤ -108dBm; WCDMA1900: ≤ -109dBm; |
|
|
GPS |
GPS |
GPS Positioning,1.57542GHz |
|
Sensitivity |
Catch -144dBm, Track -159dBm |
|
|
Technology Standard |
Data Speed Rate |
LTE FDD: Uplink 50 Mbps / Downlink 150 Mbps WCDMA- Uplink 5.76 Mbps / Downlink 42 Mbps |
|
Protocol |
Support embedded TCP&UDP Protocols; Support Protocols PAP and CHAP used for PPP conncetion; 3GPP TS 27.005,27.007 |
|
|
Type |
|
Compact & Stabilized |
|
Main Feature |
|
0.96 OLED (128X64) |
|
|
High Sound Quality |
|
|
|
Various Color Selection |
|
|
|
SOS & GPS |
|
|
|
|
Group Call/Private Call/Friend Call |
More parameters, please contact with us!
Certifications:
Standard Package for one piece:
Standard Packing :
Lead Time:
|
Item |
Quantity(pcs) |
Production Lead Time |
|
Walkie talkie |
1-50 |
1-3 days |
|
50-200 |
2-5 days |
|
|
200-500 |
2-10 days |
|
|
500-1000 |
5-21 days |
Attention please: The date is given based on the normal production ability of Tesunho Electronics. Kindly contact us for more accurate data if you have special needs!
Payment Method :
Trade Assurance / Bank transfer / Western Union / MoneyGram / Paypal
Tesunho is aim to be the leading industrial walkie talkie solution supplier. So our service consists of 3 important parts:
1. Basic Warranty:
√ Replacement: Free new walkie talkie if it can not work at once it arrives.
√ Free maintenance and parts (without artificial faulty ) :
|
Item |
Warranty |
|
Main Unit |
365 days |
|
Battery and Charger |
90 days |
|
Antenna and other parts |
None |
2. Brand OEM service:
√ partly OEM service
√ complete OEM service
3. Technical ODM service:
we have abundant of experience on industrial needs customization
√ Rail way station communication device
√ Hotel inner wifi communication structure
√ Security Guard Patrol system with walkie talkie
√ Irrigation Patrol system
√ Intelligent Parking system
√ Logistics Management system
