Quick Details
-
Face panel:
-
Fiber reinforced Calcium silicate board
-
Fast install, light weight:
-
50sqm per day, 8-10 times of traditional brick wall
-
Sound insulation:
-
Soundproof 46db, sound absorption
-
Fireproof:
-
4hours under 1000 degrees Celsius
-
Usage:
-
Exterior/ interior walls, roof and floor panel
-
Eco-friendly:
-
100% no asbestos, asbestos free
-
Certificate:
-
CE, ISO9001, ISO14001, BV, SGS, Invention Patent
Quick Details
-
Place of Origin:
-
Hubei, China
-
Core material:
-
EPS, Cement, Sand, Fly Ash, etc.
-
Size:
-
610mm*310mm*60/ 75/ 90/ 100/ 120/ 150mm
-
Face panel:
-
Fiber reinforced Calcium silicate board
-
Fast install, light weight:
-
50sqm per day, 8-10 times of traditional brick wall
-
Sound insulation:
-
Soundproof 46db, sound absorption
-
Fireproof:
-
4hours under 1000 degrees Celsius
-
Usage:
-
Exterior/ interior walls, roof and floor panel
-
Eco-friendly:
-
100% no asbestos, asbestos free
-
Certificate:
-
CE, ISO9001, ISO14001, BV, SGS, Invention Patent
Sound Noise Canceling Insulation Sandwich Panel Foam EPS Waterproof Wainscoting Panels Polystyrene Concrete Bricks
It's very important for you to understand all the features of lightweight eps blocks.
|
Vanjoin Panel VS Other Materials |
||||
| Material | Wall Thickness(mm) |
Surface Density(kg/m2) |
Weight Total(kg/m2) | |
| Material | Plaster | |||
|
Cellular Lightweight Concrete Blocks |
180 | 328 | 80 | 408 |
| 120 | 207 | 80 | 287 | |
| 90 | 173 | 80 | 253 | |
| Hollow Concrete Blocks | 180 | 175 | 80 | 255 |
| 120 | 115 | 80 | 195 | |
| 90 | 90 | 80 | 170 | |
| Vanjoin Panel | 100 | 78 | 0 | 78 |
| 75 | 53 | 0 | 53 | |
| 60 | 39 | 0 | 45 | |
Tongue and groove jointing system allows faster construction.
| Times Needed in Constructions | |||
| Type of Works | Type of All Materials | ||
| Red Brick | CLC Blocks | Vanjoin Panel | |
| Installation of Brick and Panel | 10 - 12m2/ day | 20m2/ day | 50m2/ day |
| Wall Plastering / Side | 20m2/ day | 30m2/ day | 0 day |
| Finishing Wall Plaster | 20m2/ day | 30m2/ day | 0 day |
| Installation to Ready to paint | 10 - 14 days | 9 days | 1 day |
| Dimention of Vanjoin EPS Sandwich Panel | |||
| Model Serie | Vanjoin Panel 60 | Vanjoin Panel 75 | Vanjoin Panel 100 |
| Panel Length (mm) | 610 | 610 | 610 |
| Thickness (mm) | 60 | 75 | 100 |
| Surface Density (kg/m2) | 45 - 48 | 50 - 53 | 60 - 65 |

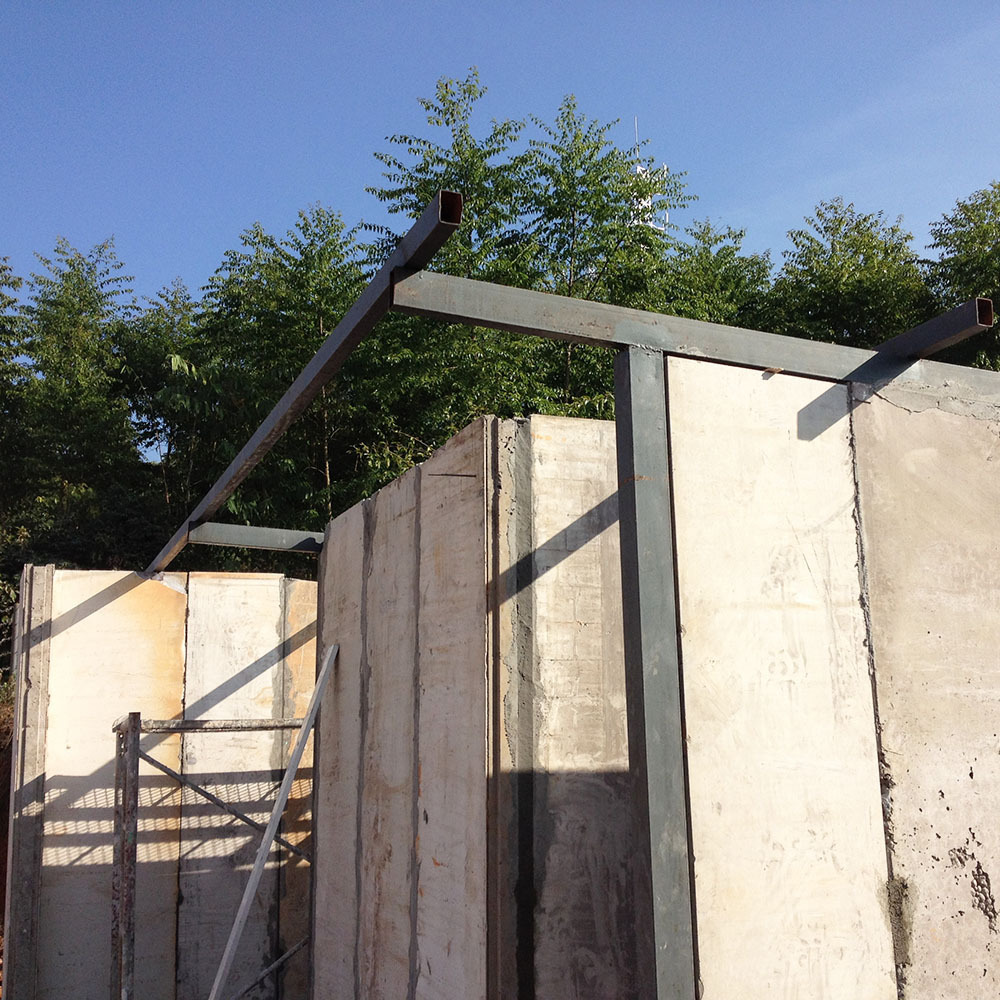

Here you can see the wide usage of our eps cement sandwich wall panels.
Vanjoin is very experienced in manufacturing and installations, and we have done lots of projects domestic and overseas.
