Quick Details
-
Model Number:
-
HD-018 Glossmeter Gloss Meter
-
Gloss Meter Usage:
-
Gloss Meter
-
Gloss Meter Mode:
-
HD-018
-
Gloss Meter Reading Range:
-
0-199.9GS
-
Gloss Meter Indication Scale:
-
0.1GS
-
Gloss Meter Indication Error:
-
±1.2GS
-
Gloss Meter Aperture:
-
30mm
-
Gloss Meter Projection Angle:
-
60°
-
Gloss Meter Environment:
-
temperature 0-40°C, Relative Humidity ≤70%
-
Gloss Meter Volume:
-
(L*W*H)160*45*100mm
-
Gloss Meter Weight:
-
660g
Quick Details
-
Power:
-
Electronic
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
HaiDa
-
Model Number:
-
HD-018 Glossmeter Gloss Meter
-
Gloss Meter Usage:
-
Gloss Meter
-
Gloss Meter Mode:
-
HD-018
-
Gloss Meter Reading Range:
-
0-199.9GS
-
Gloss Meter Indication Scale:
-
0.1GS
-
Gloss Meter Indication Error:
-
±1.2GS
-
Gloss Meter Aperture:
-
30mm
-
Gloss Meter Projection Angle:
-
60°
-
Gloss Meter Environment:
-
temperature 0-40°C, Relative Humidity ≤70%
-
Gloss Meter Volume:
-
(L*W*H)160*45*100mm
-
Gloss Meter Weight:
-
660g
Glossmeter Gloss Meter
Application:
1. Measurement of Paint and Dope surface gloss on Car, Electronic appliance and Musical instrument industry.
2. Measurement of floor board, marble, granite and ceramic tile gloss on architecture, decoration industry.
3. Measurement of printing ink and paper on Printing and Casing industry.
4. Measurement of the others need to be measured.
5. Hard drawn aluminum alloys
Standard:
International standard ISO2813, ASTM-D2457, DIN67530
China standard GB9754, GB9966, GB8807.
China metrology standard JJG696-2002.
Features:
1. Small and light, real easy to be carried and used.
2. One 1.5 mignon alkaline Battery can be used for almost 60 hours and 10000 reading.
3. High stability
4. Long-term stable light source needs no replacing for ever.
5. Quartz crystal standard board, no excursion.
Parameter of Gloss Meter:
| Mode | HD-018 |
| Reading Range | 0-199.9GS |
| Indication Scale | 0.1GS |
| Indication Error | ±1.2GS |
| Aperture | 30mm |
| Projection Angle | 60° |
| Environment | temperature 0-40°C, Relative Humidity ≤70% |
| Volume | (L*W*H)160*45*100mm |
| Weight | 660g |
| Criteria | ISO2813 ,GB9754, GB8807, ASTM D2457 D1455 D523, JIS Z8741 |

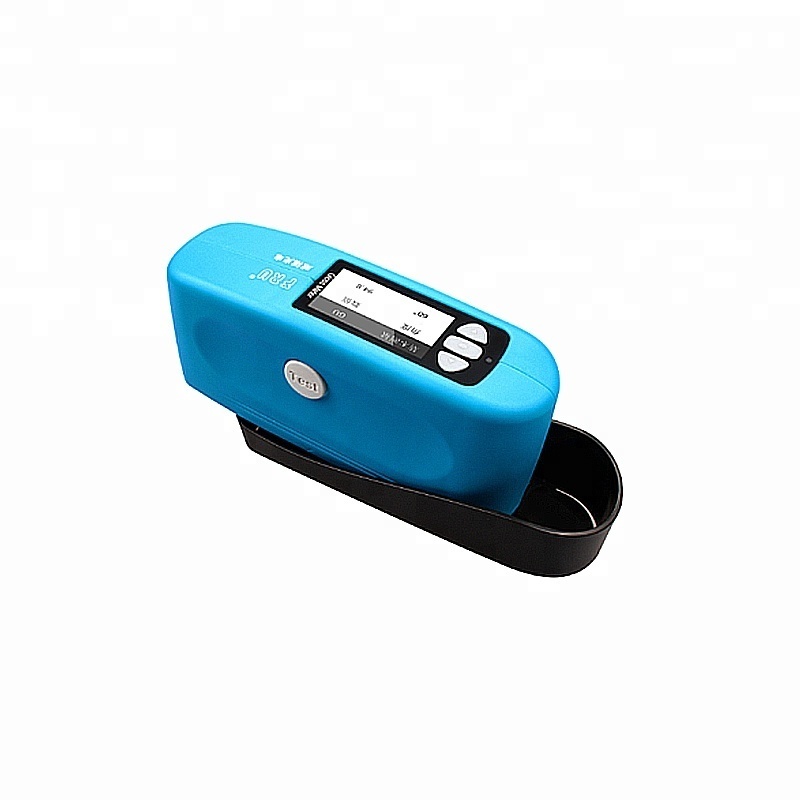

The Images of Gloss Meter:
