Quick Details
-
Product name:
-
foldable house with 1 bathroom
-
Keyword:
-
two story foldable house
-
Color:
-
Customized Color
-
Type:
-
Extendable, mobile,fast install, versatile
-
Advantage:
-
Extendable, mobile,fast install, versatile
-
Packing and shipping:
-
Standard wooden case by sea
-
Certification:
-
CE/ISO9001
-
Window:
-
Aluminum Window
-
Door:
-
Aluminum Alloy Door
Quick Details
-
Place of Origin:
-
Liaoning, China
-
Brand Name:
-
Hengbo
-
Product Type:
-
Extendable, mobile,fast install, versatile
-
Product name:
-
foldable house with 1 bathroom
-
Keyword:
-
two story foldable house
-
Color:
-
Customized Color
-
Type:
-
Extendable, mobile,fast install, versatile
-
Advantage:
-
Extendable, mobile,fast install, versatile
-
Packing and shipping:
-
Standard wooden case by sea
-
Certification:
-
CE/ISO9001
-
Window:
-
Aluminum Window
-
Door:
-
Aluminum Alloy Door

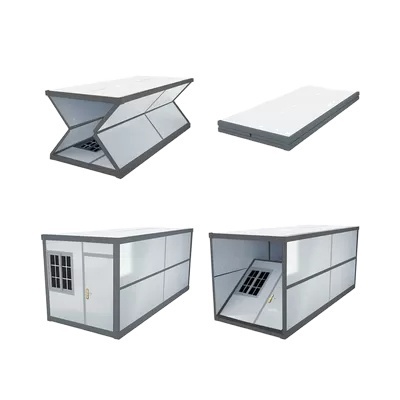

Products Description
|
Basic container
|
External dimensions
|
5800mm*2500mm*2450mm
|
|
|
|
Internal dimensions
|
5650mm*2350mm*2230mm
|
|
|
|
Folded size
|
5800mm*2500mm*390mm
|
|
|
|
Weight
|
1.1t
|
|
|
Top girder
|
Special shaped steel galvanized concave convex pipe 63mm*80mm*1.5mm（both sides）
|
|
|
|
Bottom girder
|
Special shaped steel galvanized concave convex pipe 63mm*160mm*2.0mm（both sides）
|
|
|
|
Top beam
|
Galvanized square pipe 50mm*50mm*1.8mm
|
|
|
|
Front and rear end girder
|
Special shaped steel galvanized concave convex pipe 63mm*80mm*1.5（both sides）
|
|
|
|
Sidewall frame
|
Special shaped steel galvanized concave convex pipe 63mm*80mm*1.5（both sides）
|
|
|
|
Bottom crossbeam
|
Galvanized square steel pipe 40mm*80mm*2.0mm
|
|
|
|
Cast steel butt joint Corner Fitting
|
Steel plate（200mm*100mm*15mm）
|
|
|
|
Folding hinge
|
Galvanized hinge 85mm*115mm*3mm（Shaft column304stainless steel）
|
|
|
|
Integral frame protective coating
|
Cabaret high gloss enamel
|
|
|
|
External roof
|
104 color steel tile（0.5mm）
|
|
|
|
Internal ceiling
|
831 ceiling tile（0.326mm）
|
|
|
|
Insulation rock wool
|
Bulk density 60kg/m³*14.5square
|
|
|
|
Floor
|
Grade A fireproof glass magnesium plate
|
|
|
|
Wallboard
|
Heat insulation rock wool color steel composite sandwich panel (side wall)
|
|
|
|
|
0.326mm color steel plate / 50mm / 65kg / m3 rock wool
|
|
|
|
|
Heat insulation rock wool color steel composite sandwich panel (Front and rear walls)
|
|
|
|
|
0.326mm color steel plate / 50mm / 65kg / m3 rock wool
|
|
|
|
Window
|
Aluminum alloy anti-theft integrated window (push-pull Series)
|
|
|
|
|
950mm*1200mm(With screen window)
|
|
|
|
Door
|
Special anti-theft door for folding container,860mm*1980mm
|
|
|
|
Other
|
circuit protector--one, Industrial plug and socket--one,Single tube LED light--one
Special socket for air conditioner--one,Light switch--one
|
|
|
|
|
Roof load-bearing capacity:≧ 50 kg/m², Walkway load-bearing:≧ 200 kg/m²
Floor load-bearing capacity:≧ 150 kg/m²,Walkway load-bearing:≧ 200 kg/m²
Wall deformation coefficient:≦ 300 kg/m²
|
|
|
|
|
Fire rating:Class A fireproof
|
|
|
|
|
seismic grade:Magnitude 10 earthquake resistance
|
|
|
|
|
Wind loading:14 levels of wind resistance
|
|
|
