Quick Details
-
Product name:
-
Panel Mount Industrial Touch Monitor
-
Size:
-
10.1~23.8"
-
Brightness:
-
250~500 nits
-
Seamless front panel:
-
IP65 Waterproof Dustproof
-
Power input:
-
DC 12V~36V
-
Mounting:
-
Embedded, 75*75/100*100 Vesa
-
Material:
-
Aluminum Alloy Enclosure
-
Feature:
-
Vandalproof, Shock-proof, Support Glove Function
-
Application:
-
Industrial control Application
-
Certification:
-
CCC/CE/FCC/EMC/CB/ROHS
Quick Details
-
Type:
-
Capacitive touch, resistive touch, non-touch
-
Brand Name:
-
CTFLY/OEM
-
Place of Origin:
-
Guangdong, China
-
Product name:
-
Panel Mount Industrial Touch Monitor
-
Size:
-
10.1~23.8"
-
Brightness:
-
250~500 nits
-
Seamless front panel:
-
IP65 Waterproof Dustproof
-
Power input:
-
DC 12V~36V
-
Mounting:
-
Embedded, 75*75/100*100 Vesa
-
Material:
-
Aluminum Alloy Enclosure
-
Feature:
-
Vandalproof, Shock-proof, Support Glove Function
-
Application:
-
Industrial control Application
-
Certification:
-
CCC/CE/FCC/EMC/CB/ROHS
Industrial panel PCs & Monitors | Choosing the right Panel PC
Industrial Panel PCs & Monitors have many uses such as HMI in industrial PLCs, in vending and/or payment machines (i.e.
interactive displays) and in all sectors requiring operator intervention.
interactive displays) and in all sectors requiring operator intervention.
Ordering Tips:
1. Pricing: Contact us with your order quantity
for an accurate quote and and more discounts before ordering.
2. Shipping: Freight shown is approximate
. Share your delivery address for a precise shipping cost and a tailored transport solution.
3. Options:
Each product model offers multi sizes. Additionally, we have an extensive series of ARM and x86 architecture panel pc catering to diverse applications and budgets.
.
Product Description

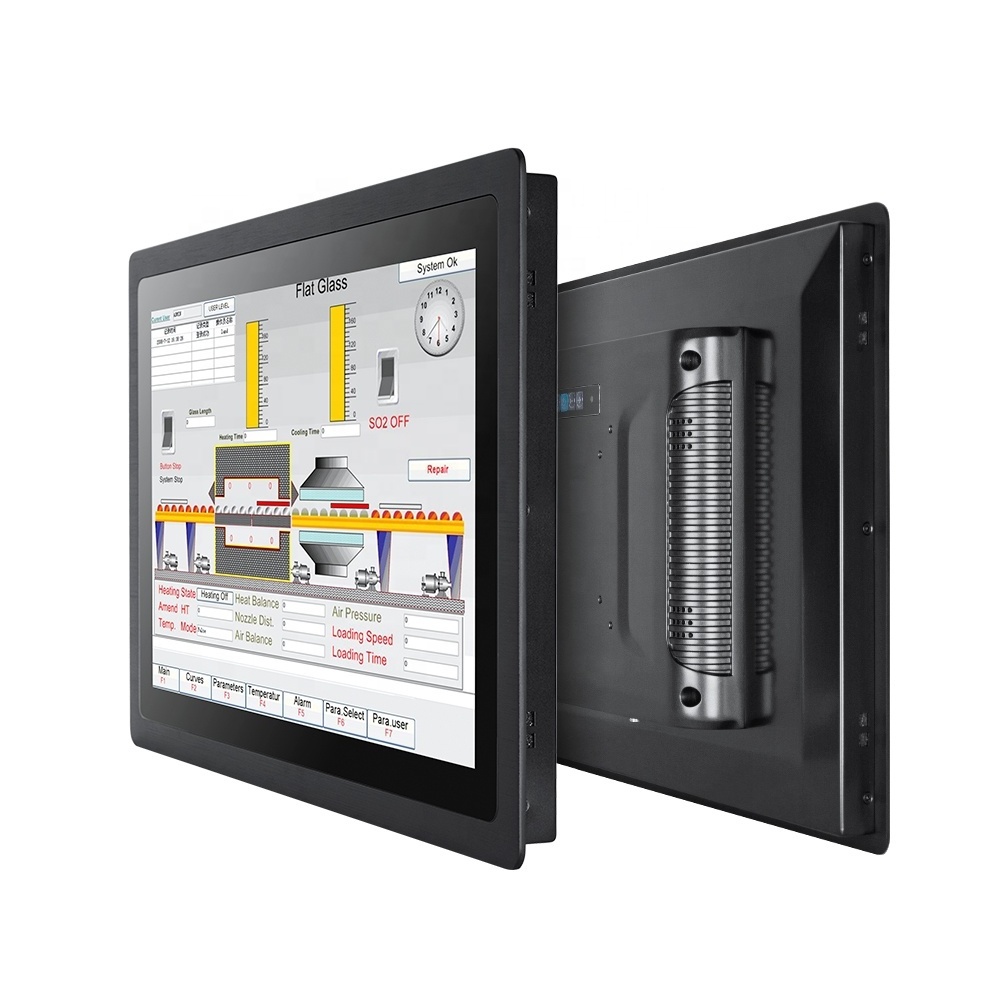

IP65 Front Panel Embedded Industrial Touch Monitor
CTFLY 2nd gen Industrial touch monitor features true flat surface and IP65 dust/waterproof front panel. In addition, designed with the aluminum die-cast front frame, it is rugged and reliable for industrial applications and harsh environment.
Users can choose 4:3 and 16:9 multi-size display screens to meet various applications of industrial automation.
1. The standard monitor ranges from 7" to 23.8" screens in the 16:9(16:10) widescreen, 4:3(5:4) square screen format, with high resolution for options.
2. Projected Capacitive, Resistive, or Non-touch screen for options.
3. Standard I/O interface: VGA, HDMI, DVI, automatic identification signal channel.
4. Low power, long span life LED backlighting monitor.
5. Full fit true flat design, 3mm bezel thin front panel, 7* 24hours all-weather working, 7H hardness scratch-resistant screen, -10℃-60℃ working temperature.
6. Complete machine triple protection: explosion-proof, flameproof, moisture-proof.
7. Supports UV resistance coating, anti-glare coating, light sensor customization.
9. Compatible with Windows, Linux, Android, and Raspberry Pi etc.
9. Support e
mbedded/panel mount/card buckle/VESA holes installation.
Features:
Application:
Industrial control/ HMI Solution/ Machine Vision/ Building Automation/ ATM / Kiosk / Vending Machines/ etc
Industrial control/ HMI Solution/ Machine Vision/ Building Automation/ ATM / Kiosk / Vending Machines/ etc
|
Size
|
Capacitive touch
|
Resolution
|
Ratio
|
Brightness
|
Contrast ratio
|
Vewing Angle
|
||||||
|
10.1"
|
CTX101-M210
|
1280*800
|
16:10
|
300cd/㎡
|
1000:1
|
85/85/85/85
|
||||||
|
10.4"
|
CTX104-M210
|
1024*768
|
4:3
|
400cd/㎡
|
1000:1
|
80/80/80/60
|
||||||
|
11.6"
|
CTX116-M210
|
1920*1080
|
16:9
|
300cd/㎡
|
1000:1
|
85/85/85/85
|
||||||
|
12"
|
CTX120-M210
|
1024*768
|
4:3
|
500cd/㎡
|
1000:1
|
85/85/85/85
|
||||||
|
12.1"
|
CTX121-M210
|
1280*800
|
16:10
|
300cd/m²
|
1000:1
|
85/85/85/85
|
||||||
|
13.3"
|
CTX133-M210
|
1920*1080
|
16:9
|
220cd/㎡
|
1000:1
|
85/85/85/85
|
||||||
|
15"
|
CTX150-M210
|
1024*768
|
4:3
|
300cd/㎡
|
1000:1
|
89/89/89/89
|
||||||
|
15.6"
|
CTX156-M210
|
1920*1080
|
16:9
|
300cd/㎡
|
800:1
|
85/85/85/85
|
||||||
|
17"
|
CTX170-M210
|
1280*1024
|
5:4
|
300cd/㎡
|
1000:1
|
85/85/80/70
|
||||||
|
17.3"
|
CTX173-M210
|
1920*1080
|
16:9
|
300cd/㎡
|
600:1
|
80/80/60/80
|
||||||
|
18.5"
|
CTX185-M210
|
1920*1080
|
16:9
|
300cd/㎡
|
1000:1
|
80/80/80/60
|
||||||
|
19"
|
CTX190-M210
|
1280*1024
|
5:4
|
300cd/㎡
|
1000:1
|
85/85/80/80
|
||||||
|
19.1"
|
CTX191-M210
|
1440*900
|
16:10
|
300cd/㎡
|
1000:1
|
80/80/80/80
|
||||||
|
21.5"
|
CTX215-M210
|
1920*1080
|
16:9
|
300cd/㎡
|
1000:1
|
89/89/89/89
|
||||||
|
23.8"
|
CTX238-M210
|
1920*1080
|
16:9
|
250cd/㎡
|
1000:1
|
89/89/89/89
|
||||||
|
Notes: 1.Capacitive touch/resistive touch/non-touch are available
2. More sizes can be customized
3. The outdoor monitor series offers the same front design as the Android/Windows panel PC . |
|
|
|
|
|
|
||||||
|
Product Specification(Standard)
|
The following tables show standard product specifications, and we also support customized interfaces for specific needs.
|
|
|
|||
|
|
Projection capacitive touch Touch point: 10-point
Light transmittance: ≥88%
Input mode: handwriting or capacitive pen
Standard protocol: USB
|
4-wire/5 wire resistive touch Touch point: single point
Light transmittance: ≥ 78% Input mode: Fingertip or stylus Standard protocol: USB
|
Non-touchLight transmittance: ≥ 92%
|
|||
|
|
CPU
|
RTD2513
|
|
|||
|
|
System language
|
Multilingual (default: English)
|
|
|||
|
|
Key function
|
AUTO/MENU/POWER/LEFT/RIGHT
|
|
|||
|
|
Video input
|
PC-RGB:Format Up to 1920*1080 @60HZ Color 16bit/24bit/32bit
|
|
|||
|
Interface Parameters
|
Grounding column
|
Support (1*GND)
|
|
|||
|
|
Power interface
|
1*DC2.1, Support 12V-36V wide voltage power supply
|
|
|||
|
|
HDMI
|
1*HDMl, Support HDMl data input, With a maximum of 1080P
|
|
|||
|
|
Touch interface
|
1*TOUCH(RJ45)
|
|
|||
|
|
VGA
|
1*VGA, Analog signal transmission
|
|
|||
|
|
DVI
|
1*DVl, Digital signal transmission
|
|
|||
|
|
Audio interface
|
1*Audio l/0, Support audio input and output
|
|
|||
|
|
Working temperature: -10°C~60°C
Storage temperature: -20°C-70°C
Relative humidity: Humidity: 95% Non-Condensing
Vibration protection: IEC 60068-2-64, Random, 5~500 Hz, 1 hraxis
lmpact protection: Humidity: IEC 60068-2-27, Half sine wave, Lasting for 11ms
Product certification:CCCICE/FCC/EMCICBIROHS
Waterproof grade: IP65 front panel
|
|
|
|||
|
Power Parameters
|
Power input:DC 12V-36V
Static power:18W
|
|
|
|||
Real Application Cases of our products
IFactory:
For HMI, PLC, MES, CNC machine tool, agricultural machinery, wastewater treatment, environmental facility monitoring, industrial automatic, smart factory, power supply cabinet etc.;
Smart City:
Outdoor kiosks, IP65 front panel intelligent self-service terminal, smart home, smart meeting room, smart building, Self-service express cabinet, bicycleself-service cabinet, smart charging pile, smart supermarket service robots, smart bankingrobots, smart canteen payment equipment etc.
Medical:
Medical mobile carts, self-service appointment/payment/fetching panel pc, remote patient beddetection equipment, intelligent self-service blood pressure meter, self-service dispensing cabinet, etc.
