Quick Details
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
REACH
-
Model Number:
-
RH-620+70B
-
Warranty:
-
12 Months
-
Rim Clamping Outer:
-
10"-22"
-
Rim Clamping Inner:
-
12"-24"
-
Max Wheel Diameter:
-
1100mm/43"
-
Max Wheel Width:
-
380mm/13"
-
Working Air Pressure:
-
6-8Bar
-
Bead Breaker Cylinder Force:
-
2500kg
-
Motor Supply:
-
1.1kw/0.75kw
-
N.W.:
-
190kg
-
Noisy:
-
< 60DB
Quick Details
-
Motor Power:
-
0.75/1.1kw
-
Operating Pressure:
-
3.5bar
-
Power Supply:
-
220V/380V, 220V/380V
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
REACH
-
Model Number:
-
RH-620+70B
-
Warranty:
-
12 Months
-
Rim Clamping Outer:
-
10"-22"
-
Rim Clamping Inner:
-
12"-24"
-
Max Wheel Diameter:
-
1100mm/43"
-
Max Wheel Width:
-
380mm/13"
-
Working Air Pressure:
-
6-8Bar
-
Bead Breaker Cylinder Force:
-
2500kg
-
Motor Supply:
-
1.1kw/0.75kw
-
N.W.:
-
190kg
-
Noisy:
-
< 60DB

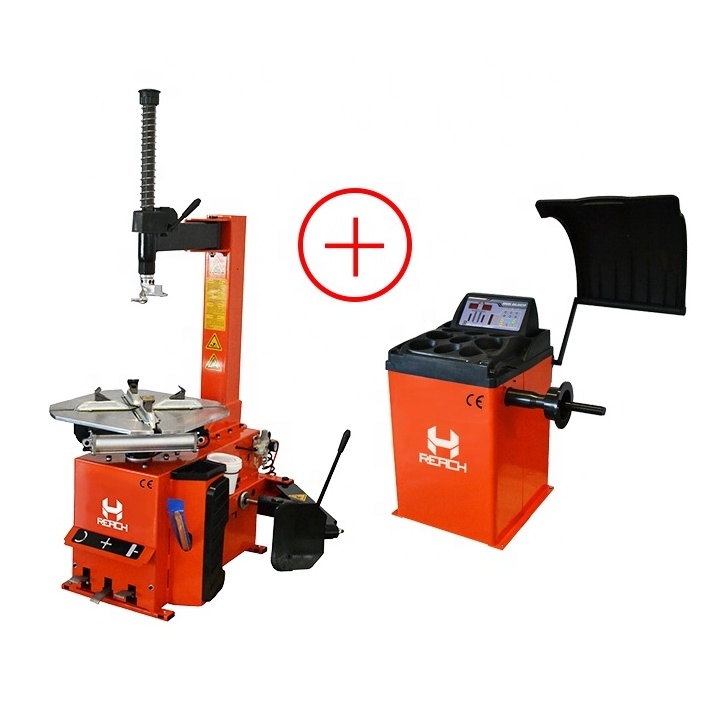

| Tire changer RH-620 | Wheel balancer RH-70B | ||
| Rim clamping outer | 10"-22" | Wheel diameter | 10"-24" |
| Rim clamping inner | 12"-24" | Max.wheel weight | 65kg |
| Max.tyre diameter | 1100mm/43" | Max.tyre diameter | 1000mm/39.5" |
| Max.tyre width | 380mm/13" | Max.tyre width | 1.2-20" |
| Working air pressure | 3.5bar | Spinning speed | 200rpm |
| Bead breake cylinder force | 2500kg | Unbalancer measrure accuracy | ±1 |
| Power supply | 220v/380v | Motor power | 0.25kw |
| Motor power | 1.1kw/0.75kw | Balancing time | 10s |
| Dimension | 1070*840*900mm | Dimension | 1020*710*1050mm |
| N.W | 190KG | N.W | 118KG |
| G.W | 200KG | G.W | 125KG |
