Quick Details
-
Weight (KG):
-
1200 KG
-
Power (kW):
-
15
-
Name:
-
Hot pressing wooden pier machine
-
Capacity (m3/24h):
-
3-5
-
Machine size (mm):
-
4800*580*1420
-
After-sales Service Provided:
-
Online support
-
After Warranty Service:
-
Video technical support, Online support, Spare parts
-
Local Service Location:
-
None
Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
GOLMYT
-
Machine Type:
-
Hot pressing wooden pier machine
-
Weight (KG):
-
1200 KG
-
Power (kW):
-
15
-
Name:
-
Hot pressing wooden pier machine
-
Capacity (m3/24h):
-
3-5
-
Machine size (mm):
-
4800*580*1420
-
After-sales Service Provided:
-
Online support
-
After Warranty Service:
-
Video technical support, Online support, Spare parts
-
Local Service Location:
-
None

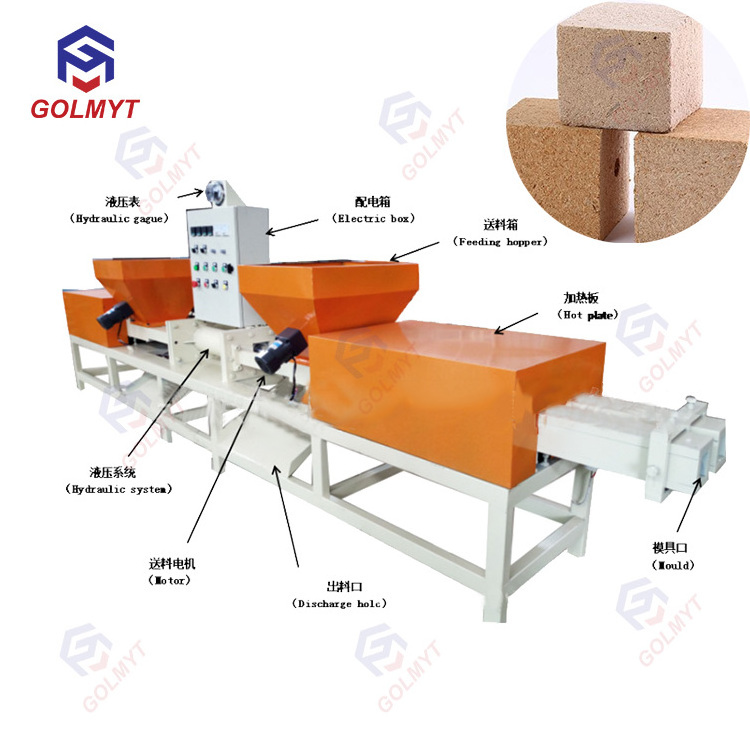

Electric hot press machine wood pallet block production line/sawdust recycling wood pallet feet making machine/pallet block
Introduction
1. wood sawdust foot pier machine is used to produce wood pallet block, wood pallet block used to make wood pallet with export standard.
2. Raw material is sawdust, wood shavings, the material after mixing with glue, can be pressed to expect shape by heating press principle, pressed wood block with good water proof.
3. wood sawdust foot pier machine adopt full mirror polishing technology to extend the lifetime of machine, improve the smooth degree of surface.
4. wood sawdust foot pier machine can produce different specification block, which can meet America Standard and Europe Standard.
Feature:
1. Compared with multi-laminates, uniform specifications and consistent appearance improve the appearance and grade of products;
2. Smooth on all sides without polishing; Different from the sawdust pier with the whole board cut, the surface is coarse and easy to drop the slag;
3. Heat evenly around and in the middle, glue solidifies thoroughly, and the product has high strength;
4, surface smooth water skiing is not easy to permeate, coupled with the fiber binding force of the shavings themselves, so that the products have excellent water resistance.
5, wood shavings plus wood shavings themselves of the rough fiber, internal structure force is strong, so not easy to crack after eating nails.
Specification:
|
Model |
Power (kw) |
Machine size (mm) |
Capacity (m3/24h) |
Glue water amount used (m3/24h) |
Supports density (kg/m3) |
Machine weight(kg) |
|
GMTMD-75*75 |
12 |
4800*580*1420 |
2-4 |
100-120 |
550-600 |
1050 |
|
GMTMD -80*80 |
12 |
4800*580*1420 |
3-4 |
100-120 |
550-600 |
1100 |
|
GMTMD -80*90 |
15 |
4800*580*1420 |
3-5 |
100-120 |
550-600 |
1150 |
|
GMTMD -90*90 |
15 |
4800*580*1420 |
3-5 |
100-120 |
550-600 |
1200 |
|
GMTMD-100*100 |
16 |
4800*580*1420 |
3-5 |
100-120 |
550-600 |
1300 |
|
GMTMD-100*120 |
18 |
4800*580*1420 |
3-5 |
100-120 |
550-600 |
1350 |
|
GMTMD - 120*120 |
18 |
4800*580*1420 |
3-5 |
100-120 |
550-600 |
1400 |
|
GMTMD - 120*140 |
19 |
4800*580*1420 |
3-5 |
100-120 |
550-600 |
1450 |
|
GMTMD - 140*145 |
19 |
4800*580*1420 |
3-5 |
100-120 |
550-600 |
1500 |
